Marshall CV420-18X Block Camera

309281 tax incl.

Delivery in 10 - 18 business days
after order confirmation



1000008648
Marshall

New product

Marshall CV420-18X Block Kamera

  • 12.5 Megapixel 4K Sensor (1/1.7")
  • 18x Optical zoom (6.8mm~120mm) starting at 55° H.AOV - 3x Digital
  • 12G/6G/3G-SDI, and HDMI2.0 simultaneous outputs
  • 4096x2160p, 3840x1260p, 1920x1080p, 1920x1080i and 1280x710p
  • 60, 59.94, 50, 30, 29.97, 25, 24 and 23.98fps
  • 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
  • 12V Power cable included (7V~15V, 25.2W max)

Marshall CV420-18X features 18x optical (3x digital) zoom block and flexible 12GSDI/HDMI simultaneous outputs with crystal clear 4K images up to 4096x2160p at 60fps. Remote adjust and match settings include Iris, Zoom, WB, Exposure, Pedestal, and many more over long distances or during setup with capable Auto settings that track environmental fluctuations.

Unmatched Versatility
Featuring 12G/6G/3G-SDI and HDMI2.0 simultaneous outputs, remote adjustable optical zoom range, and stereo audio embedding ability. CV420-18X delivers crystal-clear 4K images up to 4096x2160p with all usable framerates on one model with ultra-low light ability and industry leading low noise performance.

Durable Build Construction

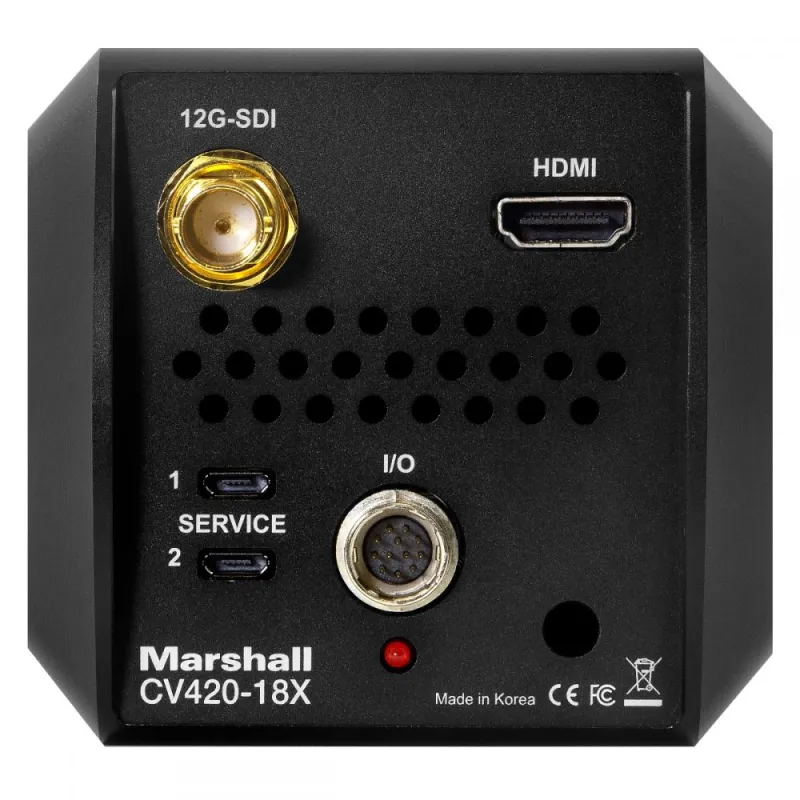

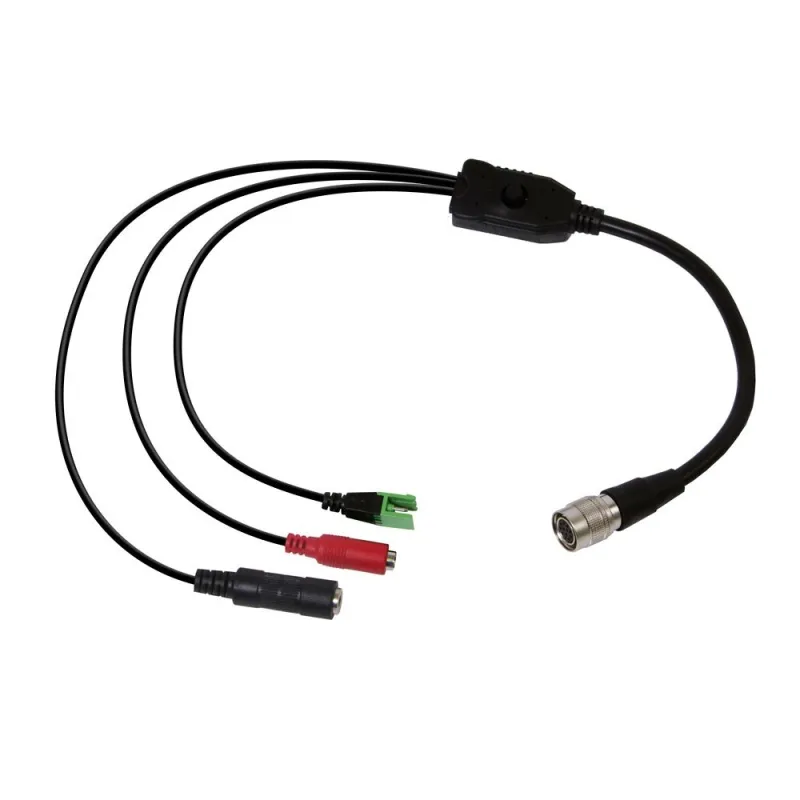

Constructed with a durable aluminum alloy body, full-sized BNC and HDMI connections, locking I/O cable carrying RS485/Audio/Power, and side impact protection panels to secure cable connections.

Universal Use Cases
Featuring a wide range of 4K, UHD and HD selections in 4096x2160p, 3840x2160p, 1920x1080p, 1280x720p (progressive) and 1920x1080i (interlaced). Choose between 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 frame-rates to capture any workflow or application in every region of the world.

Broadcast Performance
Marshall Camera Division continues to develop cutting edge camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.

Specifications

Image Sensor
1/1.7” Progressive (Approx. 12.4 Megapixel)
Effective Pixel
4096(H) x 2160(V)
Pixel Size
1.85(μm) x 1.85(μm)
Min. Illumination
Day: Full Auto (0.8Lux), AE Manual Iris Open (0.4Lux)
Night: Full Auto (0.04Lux), AE Manual Iris Open (0.02Lux)
Lens
18x Optical Zoom, f=6.8~120 mm, F1.61 ~ F4.13
Zoom
18x optical zoom + 3x digital zoom = 54x
Angle of View (H)
55 degrees (wide end) to 3.4 degrees (tele end)
Minimum Working Distance
150 mm (wide open), 1500 mm (tele end)
Focus
Auto/ Manual
Exposure
Auto / Shutter Priority/ Iris Priority/ AGC Priority/ Manual/ Bright
White Balance
AWB (3,000°K~8,000°K) / ATW (1,900°K~11,000°K) / INDOOR / OUTDOOR / ONE PUSH / Manual
Light Modes
DAY (color), NIGHT (b/w), AUTO switch
Electronic Shutter
NTSC: 1/60~1/10000, PAL: 1/50~1/10000, SENS UP : OFF~X15
Adjustable Features
Pedestal (Black Level), White Level, Privacy Mask, Image Mirror/Flip, Image Freeze, 2D/3D Noise Reduction, Edge Enhance, Defog, DIS (Digital Image stabilizer), Gamma Correct
HDMI
4096 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
3840 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1920 x 1080i: 60, 59.94, 50
1280 x 720p: 60, 59.94, 50
12G/6G/3G/HD-SDI
4096 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
3840 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1920 x 1080i: 60, 59.94, 50
1280 x 720p: 60, 59.94, 50
Input
3.5mm TRS Stereo Audio Jack over I/O Cable (Mic and Line)
Sample Rate
16/24/32 Bits
RS485
SONY-VISCA protocols, PELCO-P/D
Operation Temperature
-10°C ~ 50°C
Power Input
12VDC (7V to 15VDC)
Power consumption
Max 25.2W
Mass
1.95 lbs (camera only), 2.18 lbs (with breakout cable)
Dimensions
232 (D) x 86 (W) x 80 (H) mm
