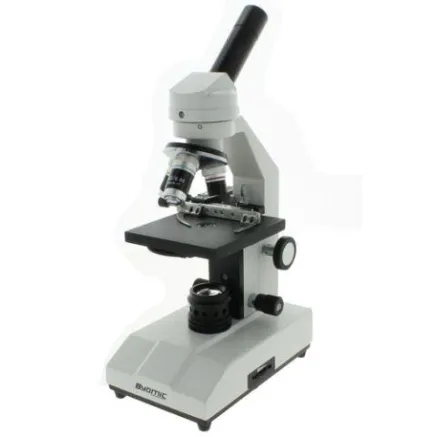

The Byomic BYO-30 Study Microscope is suitable for beginner hobbyists and use in schools. The BYO-30 is equipped with a sturdy metal casing and has an adjustable magnification of 40x to 600x. The magnification is achieved through an interchangeable WF 10x, H5x and H15 eyepiece and the 3 different achromatic objectives equipped with a magnification of 4x, 10x and 40x.
The BYO-30 is supplied with a metal viewing table with a length of 120 mm and a width of 110 mm. The metal viewing table is equipped with object clamps, enabling you to secure your viewing slides. The light can be controlled via the adjustable light output dial, which is located at the bottom of the microscope. Further, the BYO-30 is equipped with 2 focus wheels, which allows you with a clear and focused view. All optical parts of the microscope are equipped with an anti-fungus coating.
The Byomic Study Microscope BYO-30 is a biological microscope with backlighting. This makes the microscope extremely suitable for viewing cells and micro-organisms. The BYO-30 is a microscope for experienced users and is often used in secondary schools. The minimum magnification can be set from 20x to no less than 640x.
The BYO-30 has a sturdy metal housing with an integrated table of 100 by 90 mm which is equipped with two sturdy clamps to hold a specimen well in position. Because the specimen does not move, you can observe it without any problems. Also included is a cross table which can be mounted on the table. This allows you to clearly see the size of the larva you are observing. By mounting the cross-table, you first have to remove the clamps from the table.
With the focus wheel the distance between the objective and the table can be adjusted. This makes it possible to observe the specimen at the correct distance.
On the back of the housing, next to the power cable, is the on/off switch to control the lighting and on the other side is the fuse. To the far right of the microscope you will find the turning wheel for the illumination.
The Byomic BYO-30 is equipped with one wide-angle eyepiece with a magnification of 10x and two eyepieces with a magnification of respectively 5x and 16x. Of course it is also possible to use eyepieces with other specifications. The tube fits eyepieces with a diameter of 23mm. (see optional accessories). There are three achromatic lenses (4x, 10x and 40x) in the objective-revolver so that a maximum magnification of 640x can be achieved. It is possible to change these lenses so that other magnifications can be achieved as well.
The Byomic BYO-30 has an LED on the base underneath the table that provides the backlighting. Underneath the table there is a five-hole swivel wheel with different sizes. This makes it possible to determine the amount of light that is let through. The brightness of the lighting can also be controlled with the castor on the right side of the table.
Application Byomic Study Microscope BYO-30
The Byomic Study Microscope BYO-30 is suitable for viewing bacteria and parasites in fish and manure. The Byomic Study Microscope BYO-30 is also an excellent choice for examining blood and urine.
Konsultācijas, kā izvēlēties mikroskopu. Kurš mikroskops ir labāks?
Palīdzība izvēlēties mikroskopu no Byomic, vai no citiem ražotājiem.
Byomic Study Microscope BYO-30 mikroskopa atsauksmes.
Paskaidrojumi par Byomic Study Microscope BYO-30 mikroskopa priekšrocībām, plusiem un minusiem.
Salīdzinam Byomic Study Microscope BYO-30 ar citiem mikroskopiem.
Konsultācijas, kā pareizi rīkoties un labāk izmantot mikroskopu.
Individuālas apmācības, kā lietot mikroskopu.
Byomic mikroskopa sagatavošana darbam - konfigurācija, kalibrācija, programmatūras uzstāsīšana vai atjaunināšana.
Projektu, tāmes un iepirkuma dokumentu sagatavošana, kur ir iekļauti mikroskopi.
Byomic mikroskopa profilakse un tīrīšana.
Ieteikumi, kā apkalpot, tīrīt un aizsargāt mikroskopu.
Nodrošinam Byomic mikroskopa remontu un piegādājam rezerves daļas priekš Byomic Study Microscope BYO-30.
Pasūtot Byomic Study Microscope BYO-30 no Byomic ražotāja, tās piegādes laiks parasti ir 8 - 14 dienas.
