How to choose a dental photo kit: a practical Canon EOS R8‑based configuration

Dental photography is a clinical tool for diagnosis, patient communication, legal documentation and marketing. It requires consistent color, stable lighting and ergonomic equipment for quick, repeatable shots in the chair.

Below we present a ready-to-use configuration around the Canon EOS R8: Canon RF 100mm F2.8L Macro, Godox MF‑12 K2 macro flashes, Godox X2T‑C trigger, Bowens‑compatible modifiers (softboxes 45–60 cm), compact Godox stands, Lexar/SanDisk UHS‑II cards and spare LP‑E17 batteries.

Goal: build a system that ensures repeatability and accurate color for before/after documentation while minimizing setup time and operator error.

Why Canon EOS R8 suits dental photography

The Canon EOS R8 is a full‑frame mirrorless body that combines high detail, compact size and fast connectivity — useful for clinical workflows where you need sharp macro images and quick transfer to a tablet or PC.

Key technical points:

• Sensor: full frame for increased detail and dynamic range.
• Autofocus: Dual Pixel CMOS AF II for reliable focus on small intraoral zones.
• Video and transfer: 4K up to 60p; Wi‑Fi/Bluetooth with Canon Camera Connect for instant sharing.
• Power: LP‑E17 battery — keep at least two spares.

Practical setup tips:

• Shoot RAW+JPG, use a neutral picture profile and manual white balance with a grey card.
• Use f/8–f/16 to increase depth of field in macro shots; add flash when needed to keep shutter short.
• Enable Canon Camera Connect for fast patient demonstration and file transfer.

Why choose Canon RF 100mm F2.8L Macro for dental work

The 100mm macro is the clinical standard: it provides a comfortable working distance, minimal perspective distortion and high resolving power to capture fine restorations and micro‑defects.

Key specs and clinical notes:

• Focal length: 100 mm — comfortable hygiene‑friendly distance.
• Aperture: f/2.8 (use f/8–f/16 in clinical macro work for depth of field).
• Minimum focus / magnification: ~0.26 m, up to 1.4× magnification — excellent for detail capture.
• Stabilization: up to 5 stops — helpful for handheld work, though flashes preferred for short exposures.

Practical tips:

• Prefer f/8–f/16 for full‑area sharpness on teeth.
• Include a grey card in the frame for colour matching and laboratory communication.
• Alternative: RF 85mm F2 Macro for a lighter/budget option or EF 100mm f/2.8L via EF‑EOS R adapter if reusing older glass.

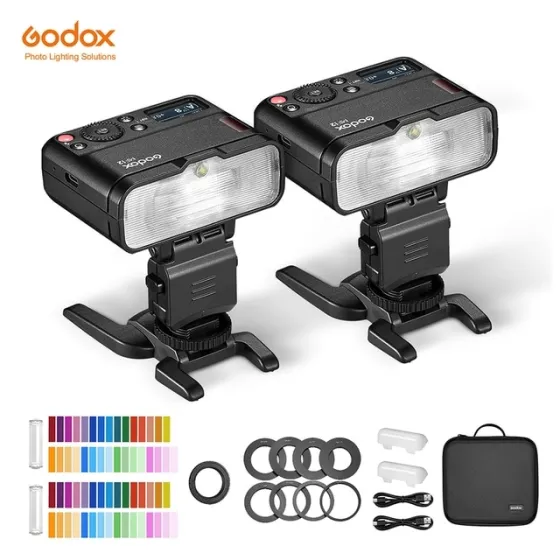

Godox MF‑12 K2 — macro flash solution for close, even illumination

The MF‑12 twin‑module kit provides balanced illumination for intraoral and close extraoral shots, reducing shadows and preserving colour accuracy.

Clinical features:

• Power range: 1/128–1/1 for fine exposure control.
• Wireless control: 2.4 GHz compatibility with Godox triggers (X Pro, X2).
• Battery life: up to ~500 full flashes per charge — keep spares or chargers ready.

Practical tips:

• Mount two modules symmetrically to minimise side shadows.
• Use colour gels if needed to match clinic lighting; include grey card for colour calibration.
• Carry spare USB‑C cables and a portable charger for busy shifts.

Choosing light modifiers for dental photography

For clinical work the priority is compact, fast‑mounting modifiers that deliver soft, neutral light. Below is a comparison of practical options and when to choose each.

Options and recommendation:

• Godox S2 + Softbox 60×60 (ID 16569): versatile Bowens solution, good diffusion, cost‑effective but larger and slower to set up — suitable for clinics with space and occasional shoots.
• Amaran 45×45 one‑snap (ID 59438): fastest setup and compact — ideal for small clinics and mobile operators.
• Neewer SF55Q 55cm parabolic quick‑release (ID 59732): deeper parabolic shape gives more directional yet soft light, with grid control — best for clinics needing tighter control and repeatability.

Practical note: 40–55 cm is a good working range for dental shots; for regular clinical workflows prefer quick‑release 45–55 cm softboxes for speed and repeatability.

Choosing stands for clinical photography

Stands for dental photography must be compact, easy to fold and stable enough to hold softboxes and flash modules. Aluminium construction and reversible leg folding are practical features.

Recommended specs:

• Material: aluminium — light and sturdy.
• Height range: ~51–213 cm.
• Load capacity: 2–4 kg for 45–55 cm softboxes and flash units.

Practical tips:

• Use sandbags or weights for safety in tight clinics.
• Prefer stands with quick folding legs for easy storage and transportation.

Memory cards and storage for clinical workflows

Choose reliable UHS‑II V60 (or better) cards and a structured backup routine to protect patient images and RAW archives.

Recommendations:

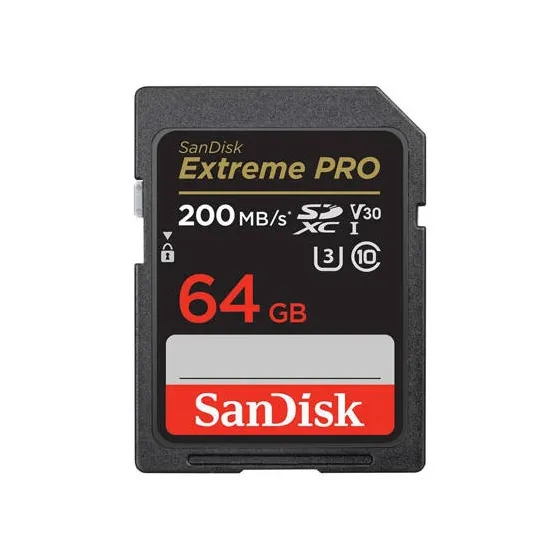

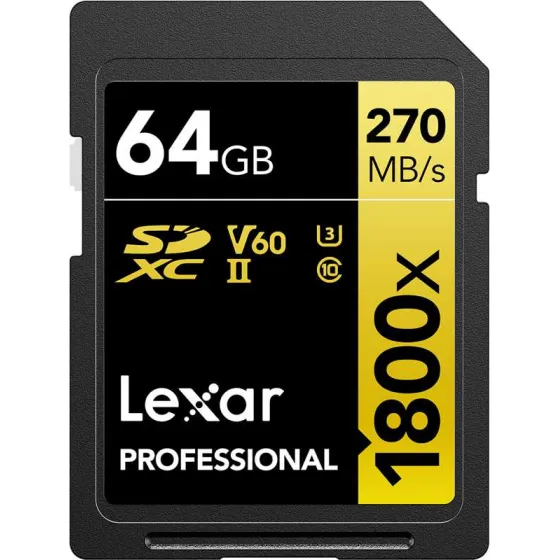

• Cards: UHS‑II V60 64–128GB (Lexar Pro 1800x or SanDisk Extreme PRO) for RAW and occasional 4K video.
• Workflow: RAW+JPG; transfer to laptop/tablet after each session using USB 3.2 card reader; keep two cards per session.
• Backup: local NAS with RAID1 or secure cloud backup, and standardised folder structure with patient IDs and dates.

Practical note: keep spare high‑speed cards and test compatibility before clinical deployment.

Battery strategy for uninterrupted clinical sessions

Canon EOS R8 uses LP‑E17 batteries. For clinic work keep a minimum of three batteries (1 installed + 2 spares) and at least one external charger or multi‑charger.

Recommendations:

• Use original Canon LP‑E17 or high‑quality compatibles (Newell) tested for capacity.
• Have a dedicated charger (LC‑E17E or multi‑charger) and consider AC adapter solutions for long sessions.
• Label batteries and track cycle counts to retire old units before failure.

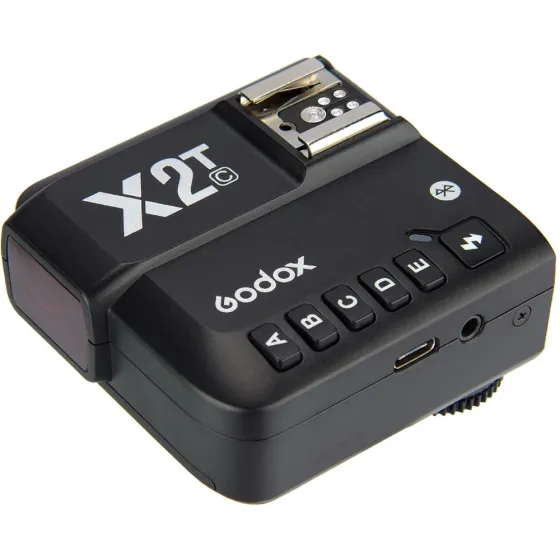

Godox X2T‑C trigger and essential accessories

The Godox X2T‑C provides Canon‑compatible TTL control, 2.4 GHz wireless, HSS and group/channel management — useful for fast switching between lighting setups in clinic.

Practical accessories:

• Filter ring adapter and adapter rings for MF‑12 mounting.
• USB‑C cables for firmware updates and charging.
• Reserve trigger for backup and quick‑access mounting on the hot shoe.

Tip: label triggers and keep a spare unit in the kit to avoid interruptions during patient sessions.

Standardised clinical protocols for repeatable results

Implement clear protocols to ensure repeatability: fixed camera position, fixed light setup, grey card calibration and standard file naming.

Step‑by‑step checklist:

• Mark camera and stand positions for each chair.
• Start each session with a grey card frame for white balance.
• Shoot RAW+JPG, use f/8–f/16, ISO 100–200 and flash sync; document settings in a protocol sheet.
• After session, transfer files and perform backup to local NAS or secure cloud.

Why it matters: standardisation reduces variability, improves lab communication and secures legal documentation.

Key takeaways

• Build around a reliable camera (Canon EOS R8) and a macro lens (RF 100mm) for repeatable results.
• Use Godox MF‑12 K2 twin flashes for even close illumination and Godox X2T‑C trigger for control.
• Standardise workflow: grey card calibration, RAW+JPG, backup and labelled file structure.
• Keep spares: 2–3 batteries and multiple UHS‑II cards.
