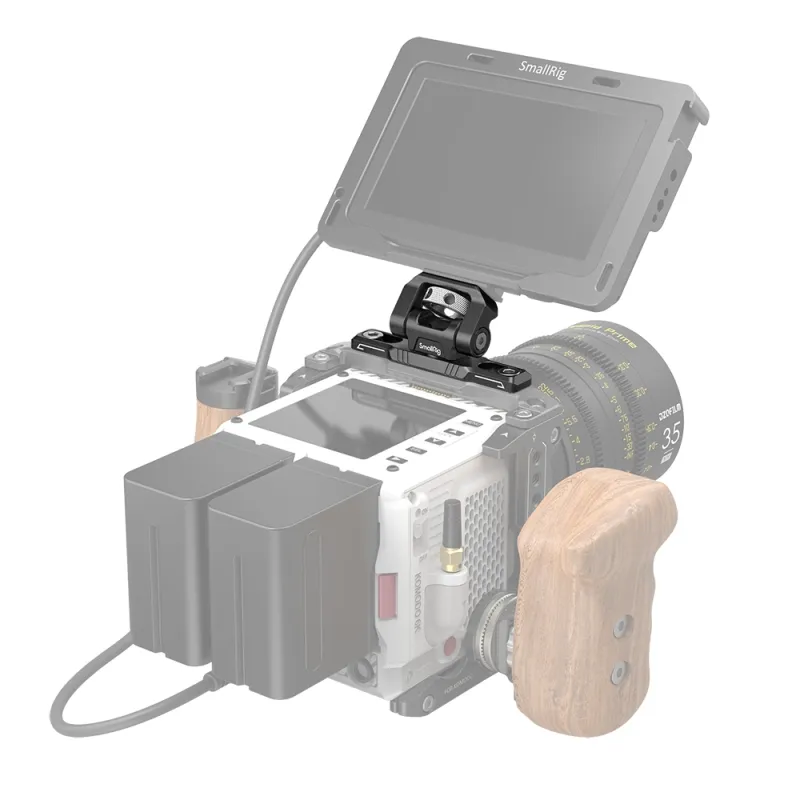

SmallRig EVF Monitor Mount for KOMODO 3045 3045

SmallRig EVF Monitor Mount for KOMODO 3045 connects monitors via one 1/4”-20 screw and connects KOMODO or cages via two 1/4”-20 screws. It tilts 170 degrees, swivels 360 degrees, and can be stopped at any angle with a load capacity of 1.5kg while the tightness is adjustable on each axis. Its top and bottom come with silicone paddings to prevent scratching and increase friction. It features 1/4”-20 holes, available for mounting other accessories at will.

Key Features:
1. Tailor-made monitor mount for KOMODO
2. Supports 5” and 7” monitors up to 1.5kg
2. Tilts 170° and swivels 360°
3. Tightness adjustable on each axis
4. Slots on screwdrivers for tightening the mount
5. Secured via two screws with anti-fall design
6. Anti-scratching paddings

Note: please re-tighten your equipment using the screwdriver for further security

Compatibility:
RED KOMODO
SmallHD Focus Series
SmallHD Focus OLED Series
SmallHD UltraBright Series
SmallHD 500 Series, 700 Series
Atomos Ninja Series
Atomos Shogun Flame
Blackmagic Video Assist 5”
Blackmagic Video Assist 4K 7”
Other equipment weighing no more than 1.5kg

• 1 x EVF Monitor Mount
• 2 x Screwdriver

• Product Dimensions: 85 x 17 x 46.2 mm
• Package Dimensions: 95 x 65 x 28 mm
• Net Weight: 62g±5g
• Package Weight: 96g±5g
• Material: Aluminum Alloy, Stainless Steel
