Canare L-2T2S microphone cable 6,0mm, XLR (M) / XLR (F) 40m, BLK CA-2TS-M/F-BLK-40

Produkta kods: 7611
SKU: 7611
Модель: CA-2TS-M/F-BLK-40
Ean: 0000000000000
Manufacturer: Canare

Состояние New product

Goods are not available at the moment

We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

MasterFoto.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

AI assistant
Artificial Intelligence assistant
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

или спросите

Какие функции? Есть в наличии? Акции и скидки?
Discover related products
Discover related products

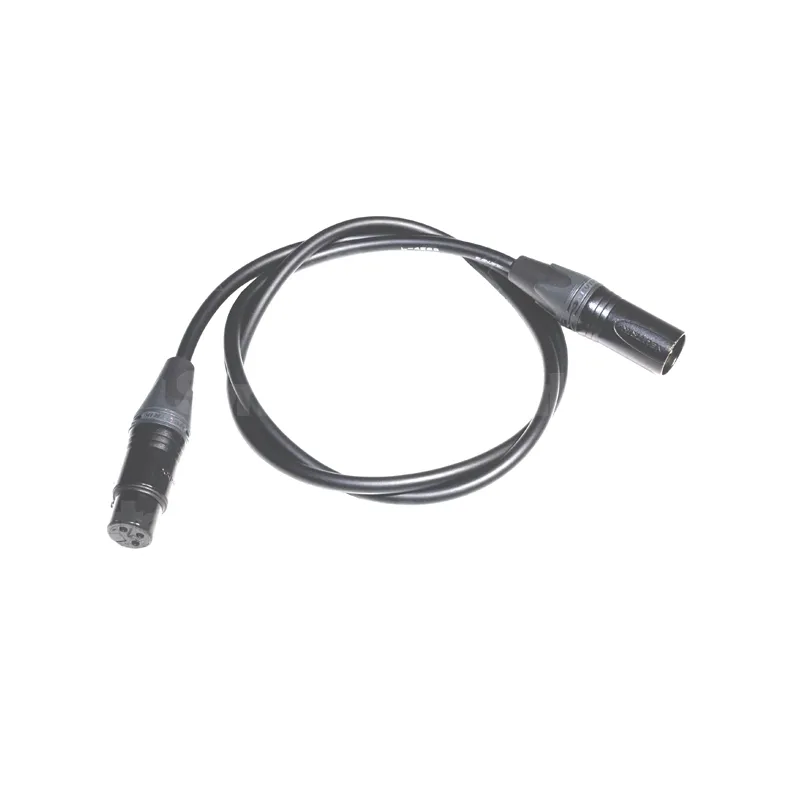

XLR (M)/XLR (F) microphone interconnect cable. Cable made to order from high quality cable from Japanese manufacturer Canare and Neutrikconnectors .

Canare XLR-M to XLR-F

is a symmetrical microphone audio interconnect cable.

Audio cable assembled from Canare L-2T2S high quality two wire microphone cable with 6.0mmdiameter jacket .

Cable features:

  • Copper braided shielding
  • Flexible even in extremely cold weather
  • Cross-linked PE (polyethylene) insulation
  • Minimized handling noise
  • EMI (electromagnetic interference) and RFI (radio frequency interference) suppressed

Specifications:

  • Standard manufactured lengths in (m): 100/200
  • Cable weight in kg/100m: 4.6
  • Sheath diameter (overall diameter) in mm:6.0
  • AWG: 23
  • Material and thickness of outer insulation in (mm):PVC (1.00)
  • Breaking point in (C):-49
  • Number and colour of conductors:2 / 1 x blue, 1 x white
  • Number and diameter of cores per conductor in mm: 60/0,08
  • Shielding factor:>94%
  • Conductor resistance in 100m: <6.4
  • Shielding resistance in /100m: <3.1
  • Capacitance between blue and white conductors in pF/m:70
  • Capacitance between conductors and shield in pF/m:106
  • Impedance in : 88


Technical specifications of Neutrik XX-B connectors:

  • Capacitance: 4 pF
  • Contact resistance: 3 m
  • Rated voltage 1min:1.5 kVdc
  • Insulation resistance:> 10 G
  • Rated current per 1 contact:16 A
  • Rated voltage:50 V
  • Cable diameter: 3.5 - 8.0 mm
  • Force required to connect connectors: 20 N
  • Force required to disconnect connectors: 20 N
  • Lifetime:> 1000 connection cycles
  • Conductor: max. 2.5 mm, max. 14 AWG
  • Soldering
  • Cable cap:Polyurethane
  • Contact surface treatment:0.2 m Au layer on 2 m Ni
  • Contact material:Bronze (CuSn8)
  • Polyamide (PA 6.6 30% GR)
  • Lock:Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Connector body:Zinc diecast (ZnAl4Cu1)
  • Connector body finish:black chrome
Вид продуктаПровода, кабели аудио
СоединенияXLR to XLR
ЦветЧерный
