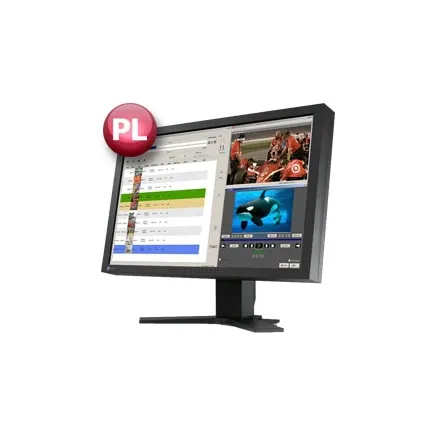

MagicSoft Streamer MSSTREAM1CH

MagicSoft Streamer Software Application for Live IP Streaming. 1 channel stream license.

MagicSoft Streamer is an application for live IP streaming designed for distribution and contribution that fulfills the demands of IP broadcasting.
The supported compression are MPEG2 and H264 and the IP output can be UDP, RTP or RTMP (for Web distribution by using Wowza, YouTube, Twitch etc).
We are also providing a receiver software that can decode and output UDP/RTP streams to a Decklink or Intensity card.

H264 UDP/RTP streams are compatible with DVB IP infrastructure of multiplexers and decoders.

The conformance of the H264 UDP stream was tested with hardware measurement equipment as Tektronix MTM 400 and Tandberg 7010 and software programs like Manzanita TSA, Elecard StreamEye and ProMax TS Analyzer.

H264 UDP / RTP streams was tested and works 24 / 7 / 365 for devices like:
- Tandberg TT1260
- Tandberg RX1290
- Ericsson RX8200
- Amino A140

MagicSoft Streamer supports up to 4 video inputs using Decklink, Intensity, AJA or Corvid cards and devices.
The input can be set either analog or digital depending on the capabilities of the card ( so it can be SDI / HDMI / YUV or composite ).

There is a "Professional" module that adds some features :
- stream recording that saves the stream as .ts file simultaneous with sending it to the designated IP
- YUV level legalizer (in order to ensure that the video level is kept into the appropriate range)
- possibility to set the sampling rate as 4:2:2
- possibility to work with a BlackMagic VideoHub device over the network for choosing the input

The software contains a watch-dog application that ensures the functionality of the MagicSoft Streamer and sends the status and alerts by SMTP email.

MagicSoft Streamer works for SD and HD setups and it can process up to 16 audio channels (16 bit 48KHz) depending on the capabilities of the used frame-buffer.

Supported inputs (depending on the capability of the used cards) :
- SDI with audio embeded
- SDI with audio AES
- YUV with analog audio
- Composite with analog audio
- HDMI
