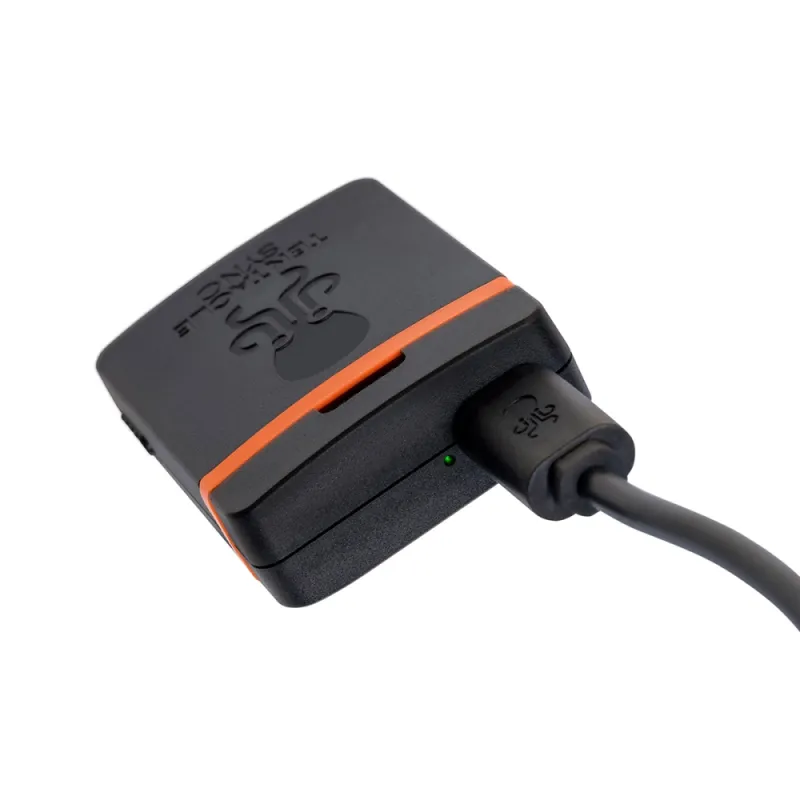

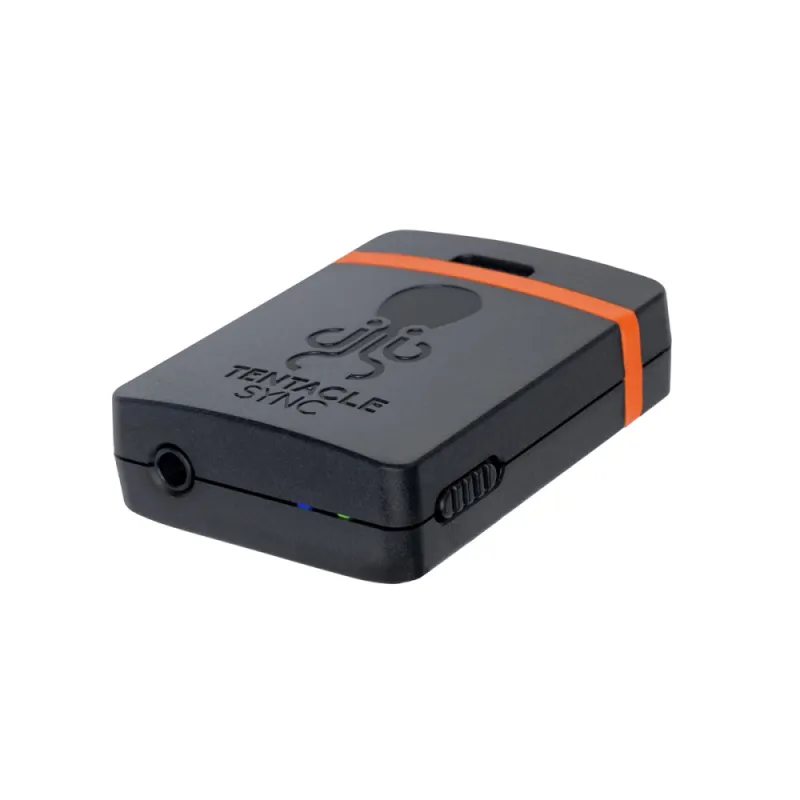

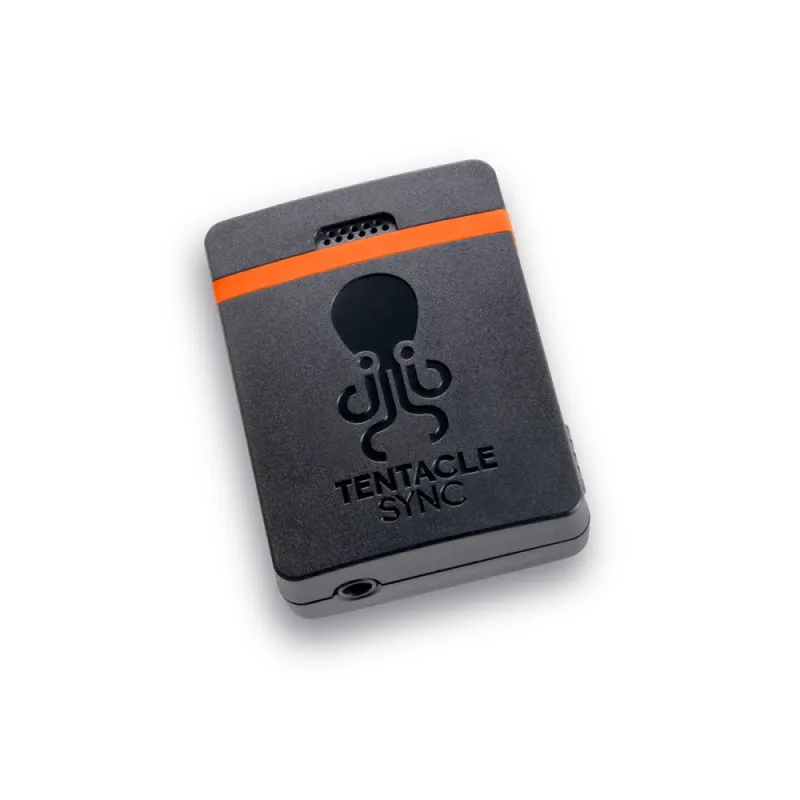

Tentacle SYNC E mk2 Smart Bluetooth Timecode Generator (TE1-MK2)

Tentacle SYNC E mk2 Smart Bluetooth Timecode Generator (TE1-MK2)

The new Tentacle SYNC E mkII timecode generator is based on the well-known SYNC E. We have made it ready for the future with Bluetooth 5 and improved battery management. The rest of the improvements you won’t recognize, but make the production much easier to handle. Everything else is as good as always: same precision, same size and weight, same features, full compatibility with all Tentacle devices and same prize.

The Single Set combined with our TRACK E timecode audio recorder is the perfect workflow solution for any video shooting from YouTube and Wedding applications to Multicam setups as well as post production syncing tasks. The Set also includes a license for the renowned Tentacle Sync Studio Software for macOS, for fast and easy synchronization of your audio and video footage.

• Syncing over Bluetooth 5 (Low Energy) for monitoring and setup via phone or tablet
• Super small and lightweight
• Frame rate and TC output level adjustable via Tentacle Setup App (iOS/ Android/ macOS/ Windows)
• One Tentacle Sync Studio Software Licenses included

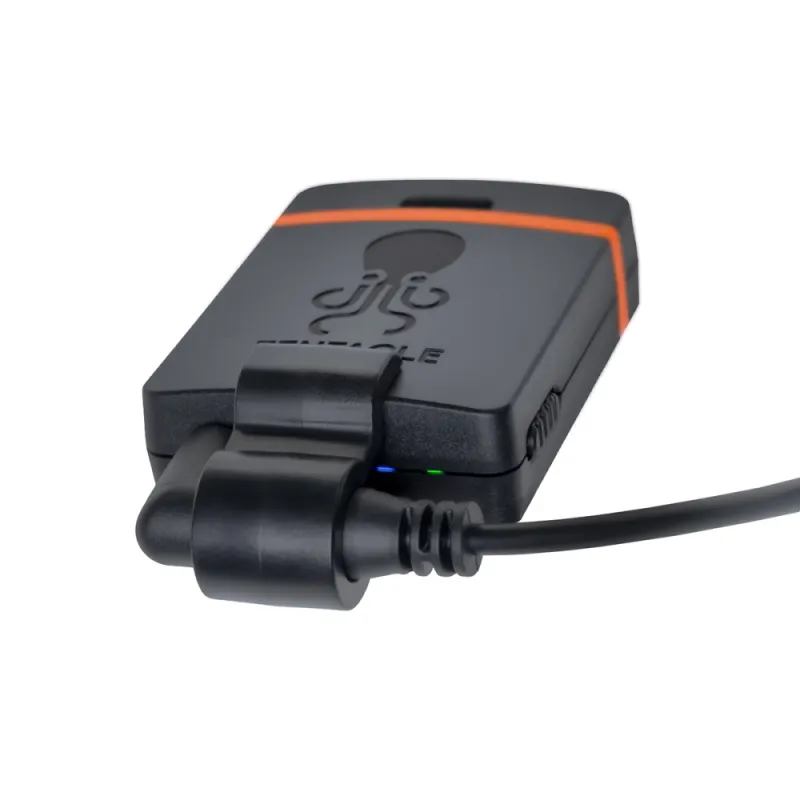

• Tentacle Clamp locks a right-angle mini jack connector
• Accurate built-in reference microphone
• Generates All SMPTE timecode rates or jam-sync to any external timecode source
• High precision TCXO: accuracy with less than 1 frame drift in 24 hours (-30°C to +85°C)
• Designed and manufactured in Köln, Germany

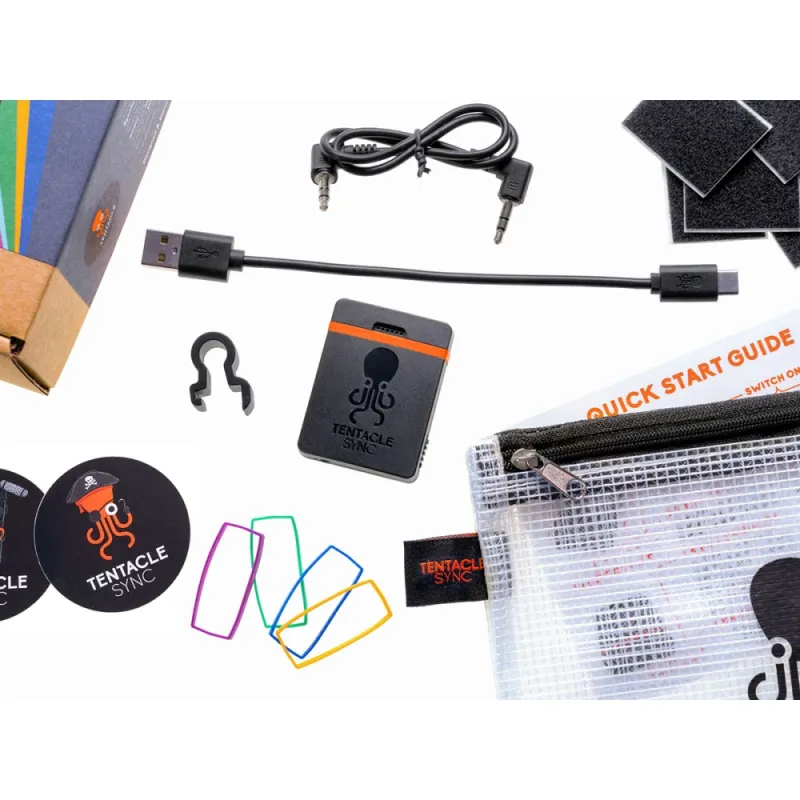

In The Box
1x Tentacle SYNC E mkII – Timecode Generator with Bluetooth™ Functionality
1x Mini-Jack-Cable (90° angled) for Syncing devices with TRS input (Sony a7S III, BMPCC4K/6K, GH5s,…)
1x USB-C Cable for Charging and Setup (Win/Mac)
2x Tentacle Clamps for Locking your Right-Angle Cables to the Tentacle SYNC E
10x Velcro Loop Pads for Mounting the Tentacle to any Device
4x Coloured Rubber Bands
1x Quickstart Guide
1x Software Activation Details and Manual included

Specifications

LTC Timecode

According to SMPTE-12M Standard

Drift

High Precision TCXO: Accuracy Less than 1 Frame Drift in 24 Hours (-30°C to +85°C)

Frame rates

23.98, 24, 25, 29.97, 29.97DF, 30

Timecode I/O

Mini Jack Socket

Audio

Built-In Reference Mic

Power

Built-In Lithium Polymer Battery, up to 35 hrs Operating Time, Fast Charging via USB-C (max. 1.5 hrs)

Mounting

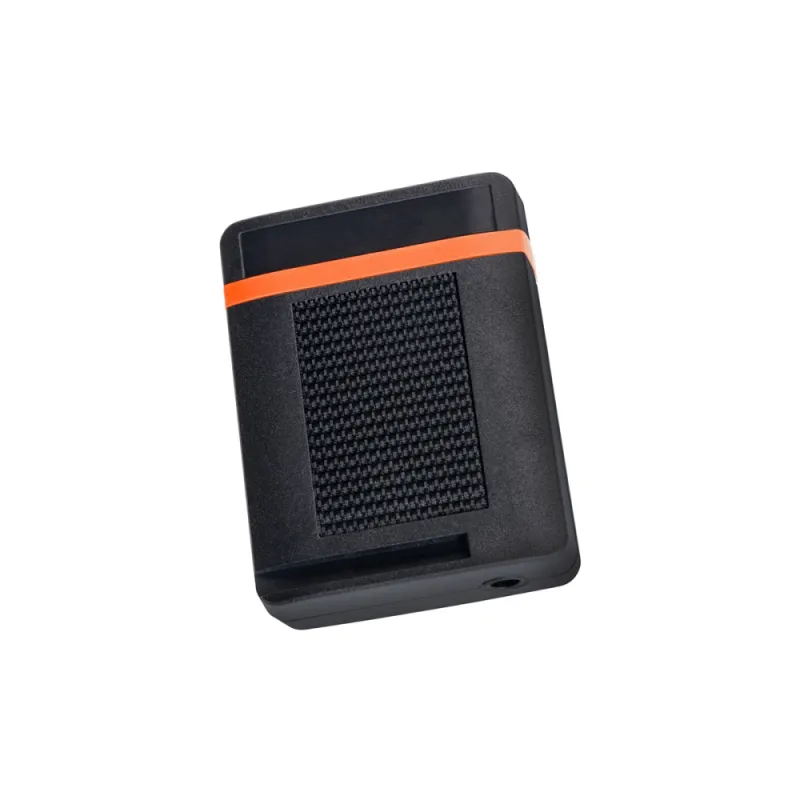

Integrated Hook Surface on the Back for Easy Mounting

Weight

30 g (1 oz)

Dimensions

38 x 50 x 15 mm (1.49 x 1.97 x 0.59 inches)
