Swit CM-S73H CM-S73H
Состояние New product
или спросите

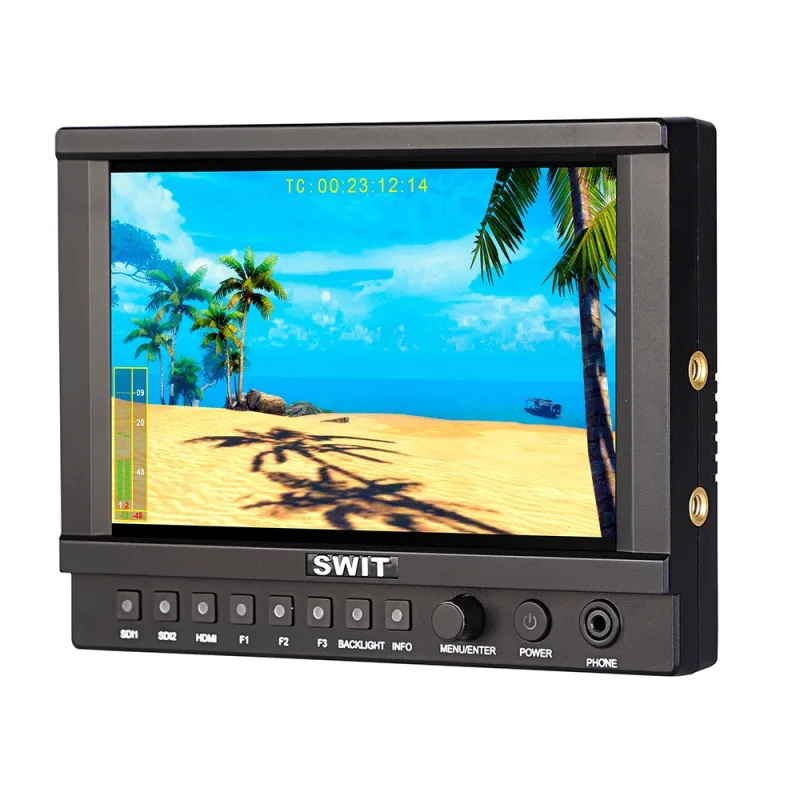

7" Super Bright SDI/HDMI LCD Monitor 3000nit
7-inch 3000nit Super Bright LCD Monitor
◆ 7” non-glaring LCD, 1920×1200 resolution
◆ 3000nit super high bright
◆ HDR capable: PQ / HLG / S-log3
◆ 2K/3G/HD/SD-SDI input & loop output
◆ HDMI 2.0 (4K60p) input & loop output
◆ 16-ch embedded audio meters with alert
◆ Select any 2 audio channels to output
◆ 9 steps quick zoom-in and mapping
◆ Focus assist with precision adjustment
◆ Build-in multi-camera logs to Rec.709
◆ User 3DLUT cube file import by USB
◆ On-screen TALLY display and GPI
◆ Zebra stripes, False color, R/G/B/Mono
◆ H/V delay, AFD, Timecode display
◆ Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
◆ V/Gold mount or various DV plates option
◆ USB firmware upgrade
- Sun hood
- D-tap to lockable Pole-tap Cable
- S-7006 battery plate (S/A/U/F/D/B/V/I/C/E selection)
- Cold shoe to 1/4" Ball head
LCD Performance
Size | 7 inches |
Display area | 151.2×94.5mm |
Resolution | 1920×1200 |
Aspect ratio | 16:9 (4:3 adjustable) |
Brightness | Max 3000cd/m2 |
Contrast | 1200:1 |
Color | 16.77 million colors |
Viewing angle | Horizontal: 160°; Vertical: 160° |
Input
BNC ×2 | 2K/3G/HD/SD-SDI input |
HDMI-A ×1 | HDMI 2.0 input |
USB ×1 | Firmware upgrade |
RS485 ×1 | GPI (Tally) input |
Output
BNC ×1 | 2K/3G/HD/SD-SDI loop output |
HDMI-A ×1 | HDMI 2.0 loop output |
3.5mm ×1 | SDI, HDMI embedded audio output |
Video Format
SDI | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080i (60 / 59.94 / 50） | |
| 1080p (60 / 59.94 / 50) | |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
HDMI | 4096×2160p (60 / 50 / 30 / 25 / 24) |
| 3840×2160p (60 / 50 / 30 / 25 / 24) | |
| 480i/ 576i / 480p / 576p | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
General
Input voltage | DC / battery 6.5V-17V |
Power consumption | ≤26W |
Working temperature | -10°C～+50°C |
Working humidity | 10%～90% |
Storage temperature | -15°C～+60°C |
Storage humidity | 10%～90% |
Dimensions | 187×137×41mm |
Net weight (main body) | 500g |
| HDMI | 4096×2160p (60 / 50 / 30 / 25 / 24) | |
| 3840×2160p (60 / 50 / 30 / 25 / 24) | ||
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | ||
| 1080i (60 / 59.94 / 50) | ||
| 720p (60 / 59.94 / 50) | ||
| 480i/ 576i / 480p / 576p | ||
| SDI | SMPTE 2048-2 | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080i (60 / 59.94 / 50） |
| SMPTE-425M-A/B | 1080P (60 / 59.94 / 50) | |
| SMPTE-274M | 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | ||
| SMPTE-RP211 | 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| SMPTE-296M | 720p (60 / 59.94 / 50) | |
| SMPTE-125M | 480i (59.94) | |
| ITU-R BT.656 | 576i (50) | |
