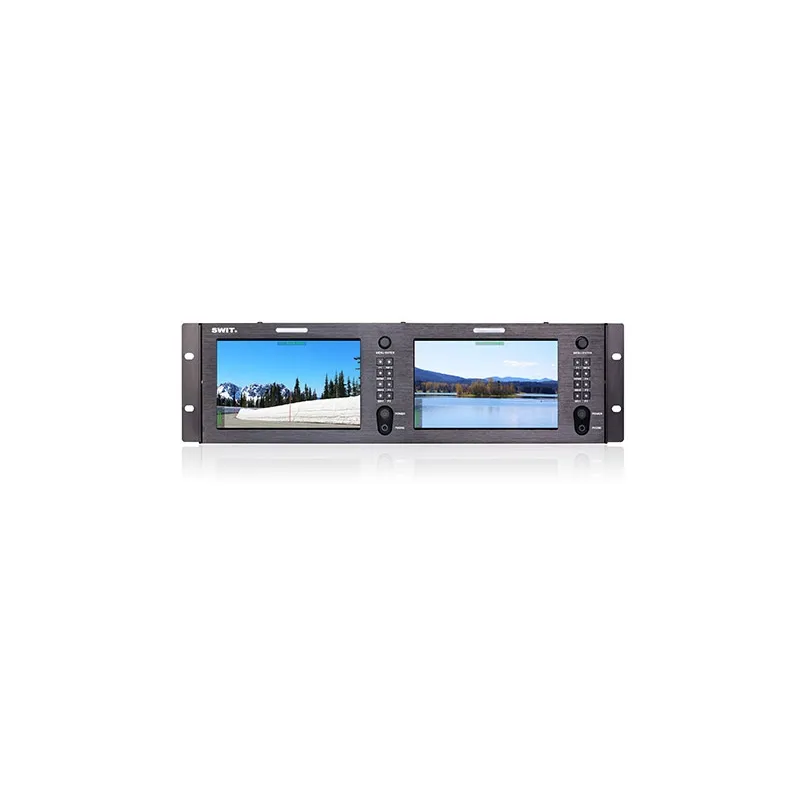

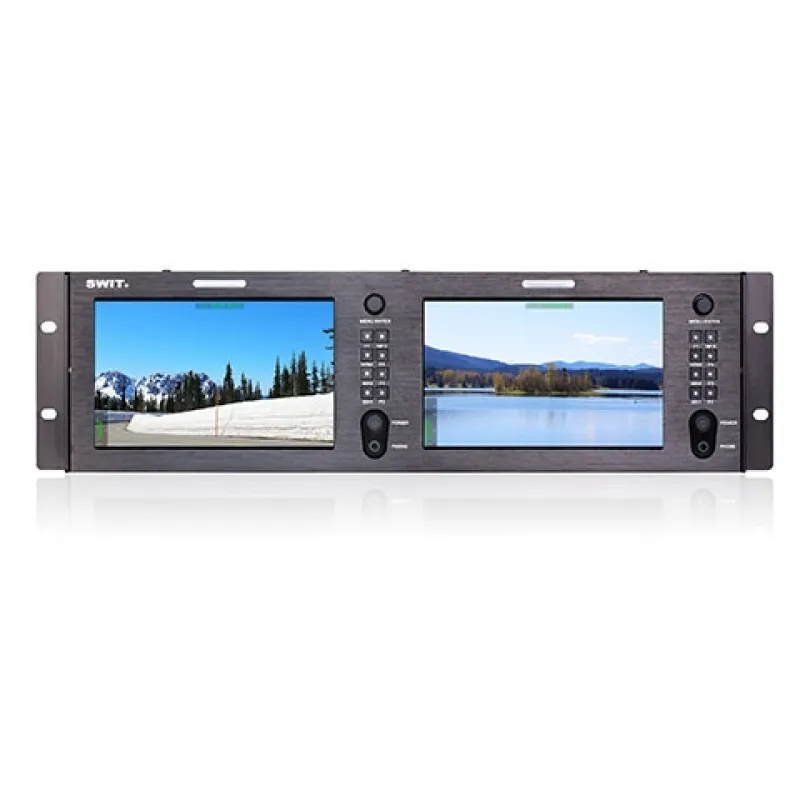

Swit M-1073H 2x7 LCD 19 rack 3U monitor M-1073H
Состояние New product
Goods are not available at the moment
We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.
MasterFoto.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.
или спросите
SWIT M-1073H 2x7" LCD 19" rack mount 3U monitor with 1920×1200 resolution and 2K/3G/HD/SD-SDI input (+loop output) and 4Kp60 HDMI input (+loop output).
M-1073H
Dual 7-inch FHD Rack LCD Monitor
- Dual 7" non-glaring LCD, 1920×1200
- 19-inch 3U rack mount, ±30° rotatable
- 2K/3G/HD/SD-SDI input & loop output
- HDMI 2.0 (4K60p) input & loop output
- 16-ch embedded audio meters with alert
- Select any 2 audio channels to output
- 9 steps quick zoom-in and mapping
- Focus assist with precision adjustment
- Build-in multi-camera logs to Rec.709
- User 3DLUT cube file import by USB
- On-screen TALLY display and GPI
- Zebra stripes, False color, R/G/B/Mono
- H/V delay, AFD, Timecode display
- Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
- USB firmware upgrade
3DLUT Log to Rec709
User LUT cube import
M-1073H monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm
You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.
Embedded audio monitoring
Up to 16-ch meters with alert and select output
M-1073H supports SDI-16ch and HDMI-2ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable
On-screen Tally
M-1073H supports on-screen TALLY display, and the TALLY control signal inputs via GPI(RS485) port on the rear panel of the monitor
USB Firmware Upgrade
The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into M-1073H monitor to upgrade, without PC connection.
Power Supply
M-1073H provides DC 6.5-24V power input socket, for the both 2 screens, and an AC-DC adaptor is attached on the rear panel of the monitor.
Installation
M-1073H is standard 19" rack mount fixing, occupies 3U height. The monitor is ±30° up and down rotatable when installed on racks
.
Input Video Formats
M-1073H supports the following input video formats:
| HDMI | 4096×2160p (60 / 50 / 30 / 25 / 24) | |
| 3840×2160p (60 / 50 / 30 / 25 / 24) | ||
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | ||
| 1080i (60 / 59.94 / 50) | ||
| 720p (60 / 59.94 / 50) | ||
| 480i/ 576i / 480p / 576p | ||
| SDI | SMPTE 2048-2 | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080i (60 / 59.94 / 50) |
| SMPTE-425M | 1080P (60 / 59.94 / 50) | |
| SMPTE-274M | 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | ||
| SMPTE-RP211 | 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| SMPTE-296M | 720p (60 / 59.94 / 50) | |
| SMPTE-125M | 480i (59.94) | |
| ITU-R BT.656 | 576i (50) | |
