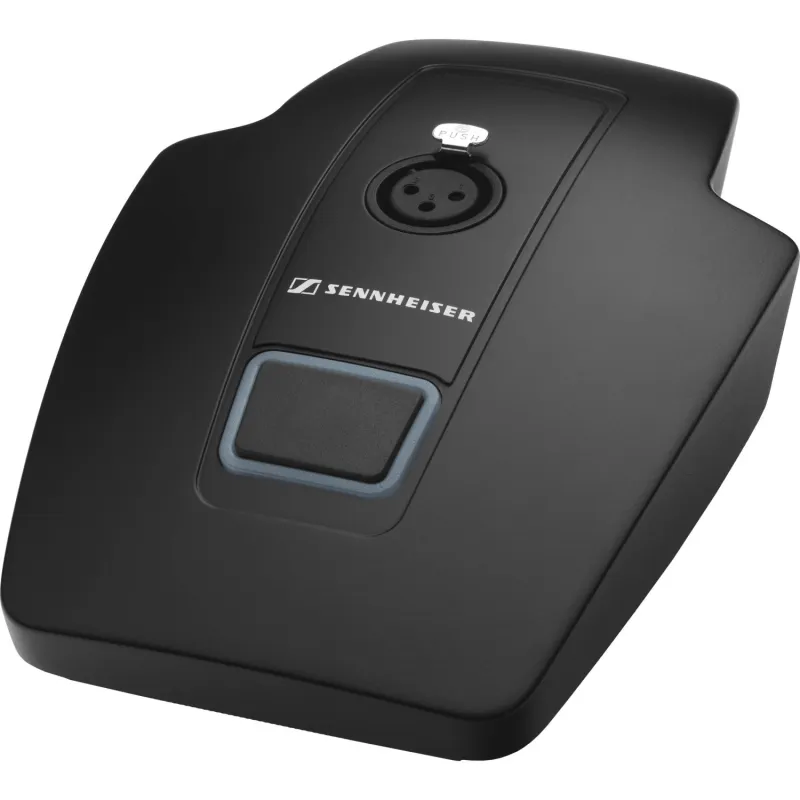

Sennheiser MAT 133-S Table Stand with Programmable Mic Button (Black) MAT133-S-B

The MAT 133-S is a sturdy, wired table stand that provides a stable base for XLR-3 gooseneck microphones. It has a user-friendly microphone button with a two-color status display that provides quick visual feedback on whether the microphone is active or muted. The TTL logic output on the underside can be used to activate a camera or media control system. The model is available in black color.

• The table stand MAT 133 is compatible with MEG 14-40-L.
• Solid Microphone Stand
• Timeless design
• Bi-colored light ring for clear visual feedback
• Logical function for easy control of e.g. cameras

Microphone modes

• Toggle on/off
• Push to mute
• Push to talk
• permanent on (external LED control)

• MAT 133-S table stand
• Quickguide

• Connector: Mic in: XLR-3F
• Connector: Mic out: XLR-3M
• Connector: Logic: clip contact for logic, Pin assignment: trigger signal at the logic connector: Logic in (external LED control), GND, Logic out (switch signal)
• Phantom powering: P 24 - P 48
• Operating temperature: -10° - +50°C
• Current consumption: 3.7 mA
• Output voltage: Logic out: high level output voltage > 2.4 V, low level output voltage < 0.4 V
• Output voltage: Logic in: high level input voltage > 2.0 V, low level input voltage < 0.8 V
• Dimensions: 120 x 170 x 43 mm (BTH / WDH)
• Weight: 1210 g
