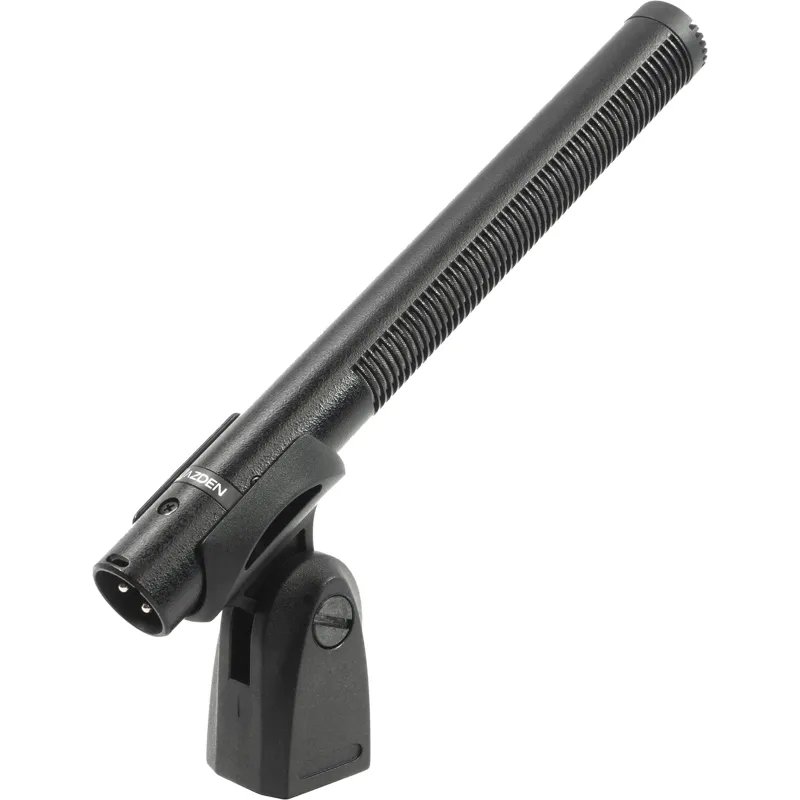

AZDEN SGM-3500 SHOTGUN MICROPHONE SGM-3500

The SGM-3500 Broadcast Shotgun Microphone from Azden is designed for video and audio production with a camcorder, video DSLR, or portable audio recorder. With a frequency response of 40 Hz to 20 kHz, it is suitable for on-camera mounting or as a boom pole microphone in professional video productions.

Measuring nearly 7" long, the SGM-3500's interference tube generates a supercardioid polar pattern and offers excellent rejection of off-axis sound. Featuring an all metal brass body that provides optimal RF rejection and durability, 48V phantom power, a gold-plated XLR connector to ensure a good connection and high resistance to corrosion and a boosted frequency response around 5 kHz where speech articulation is most present for clarity, the SGM-3500 boasts an ultralow noise floor at 13 dB for crystal clear audio.

Low Self-Noise
The 3500 series boasts an ultra-low noise floor at 13 dB (A weighted), for crystal clear audio.

Tuned for Speech Capture
Frequency response is boosted around 5 kHz to 10 kHz where speech articulation is most present.

All-Metal Brass Body
Provides optimal RF rejection and durability.

Gold-Plated XLR Connector
To ensure a good connection and a high resistance to corrosion.

High-Sensitivity Mic Element
Captures a level of detail and nuance beyond any other Azden microphone.

Wide Frequency Response
40 Hz to 20 kHz with roll-off at the first octave to avoid low-frequency noise.

48V Phantom Power
Phantom power is a DC voltage supplied through a balanced microphone cable and used to power the electronics of the connected microphone.

Specifications

• Mic Element: Condenser
• Freq. Response: 40 Hz – 20 kHz
• Polar Pattern: Supercardioid
• Sensitivity: 3500: -31 dB at 1 kHz (0 dB = 1 V/Pa)
• Noise Floor: 13 dB (A weighted)
• Dynamic Range: 118 dB
• Impedance: 120 Ω (at 1 kHz)
• Max Input SPL: 130 dB SPL (1 kHz at 1% T.H.D.)
• S/N Ratio: 82 dB (1 kHz at 1 Pa)
• Power Requirement: 48 V DC Phantom (±4 V)
• Connector: 3-pin XLR
• Dimensions: 180mm x φ19mm
• Weight: 140g
