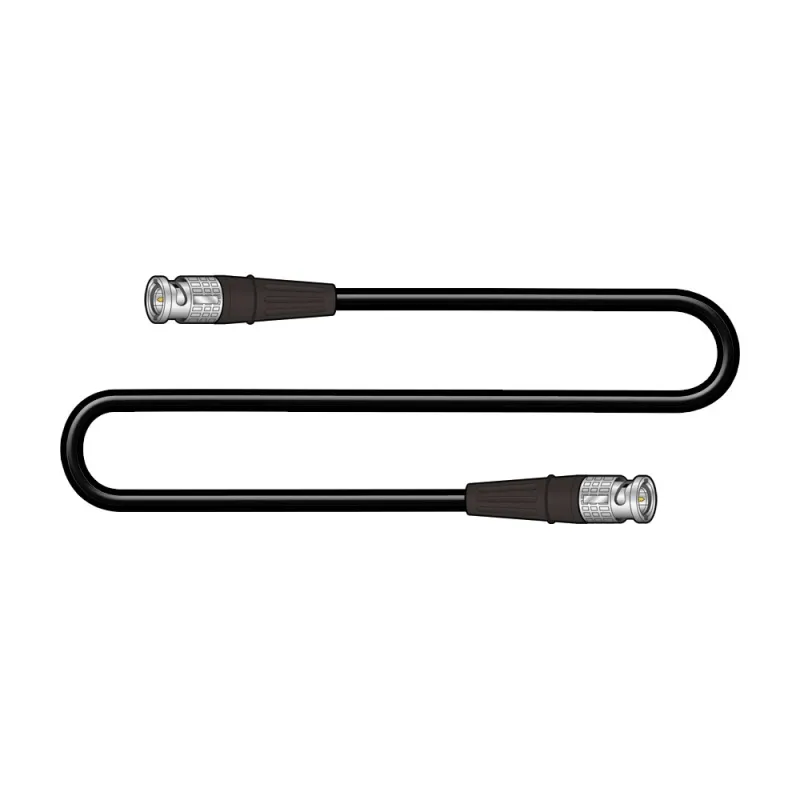

Canare L-5CFW Flexible 3G/HD-SDI cable BNC 40m CV-5W-M/M-BLK-40
Produkta kods: 20508
SKU: 20508
Модель: CV-5W-M/M-BLK-40
Ean: 0000000000000
Manufacturer: Canare
Состояние New product
Goods are not available at the moment
We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.
MasterFoto.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.
Artificial Intelligence assistant
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
или спросите
Какие функции? Есть в наличии? Акции и скидки?
Discover related products
Discover related products
Canare L-5CFW BNC (M-male) / BNC (M-male)
Specifications:
- Standard manufactured lengths: 100/200m
- Sheath diameter (overall diameter) in mm: 7.7
- Cable weight in kg/100m: 8.1
- Central conductor - number and diameter of cores in mm: 1/1.05
- Total diameter of central conductor in mm: 1.05
- Foam dielectric - diameter in mm: 5,00
- Resistance of the central conductor in /100m: 2,3
- Resistance of outer conductor in /100m: 0,5
- Static capacitance in pF/m: 55
- Attenuation in dB/100m: 19.4
Maximum transmission distance depending on video format
| Distance in (m) | 333m | 267m | 103m | 105m | 56m |
| Transmission speed | 360 Mbps | 540 Mb/s | 1.5 Gb/s | 3.0 Gb/s | 12.0 Gb/s |
| Specifications | SMPTE 259M | SMPTE 344M | SMPTE ST-292 | SMPTE ST-424 | SMPTE ST 2082-1 |
| Use | 525/625 (16:9) | 525/625 (4:3) p60 SDI | HD-SDI 1080i | HD-SDI 1080p | 4K UHD |
| Вид продукта | Провода, кабели видео |
| LCD Мониторы | HDMI adapter |
| Соединения | BNC to BNC |
