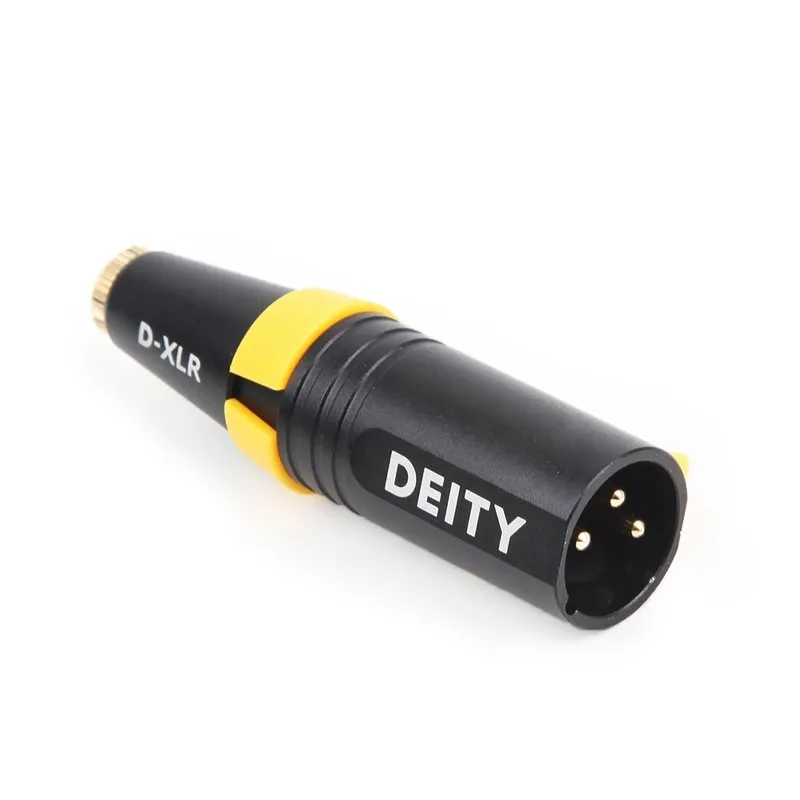

Adapter DXLR Deity 32760 DY-DXLR for V-Series Microphones

The D-XLR converts 12-48V phantom power to 3V Plug in Power, allowing microphones with 3.5mm TRS connectors to be operated via phantom power. The D-XLR is specifically designed for Deitys V-Series microphones to power their smart TRRS connectors from a standard XLR connector via PIP.

Features:

• Solid metal construction
• sturdy belt clip
• adapts 48V to 3V PIP (Plug in Power)
• works with common 3.5mm microphones

D-XLR converts 12-48V phantom power to 3V Plug in Power, allowing microphones with 3.5mm TRS connectors to operate via phantom power. The D-XLR is specifically designed for Deity V-Series microphones to power their smart TRRS connectors from a standard XLR connector via PIP.

At the same time, D-XLR has no negative impact on microphones like the V-Mic D3 Pro in terms of signal-to-noise ratio, absolute harmonic distortion and sensitivity. The D-XLR uses a standardized 3.5mm TRS* connector with a gold-plated surface, so the contacts on the connector stick better and dont loosen.

*It does not work with 3.5mm lavalier microphones wired for Sony UWP.

Compatible microphones:

• A.Lav
• V.Lav
• V-Mic D3
• V-Mic D3 Pro
• other standard TS/TRS microphones

Technical specifications:

• Weight: 29.2 g
• Dimensions: 69.7 x 19 x 19 mm
• Voltage: 12-48 V (phantom)
• Bias voltage: 3V
• Signal-to-noise ratio: 80.9 dB
• THD: 0%
• Input: 3.5mm standard TRS
• Output: 3-pole XLR
• Construction: CNC aluminum
