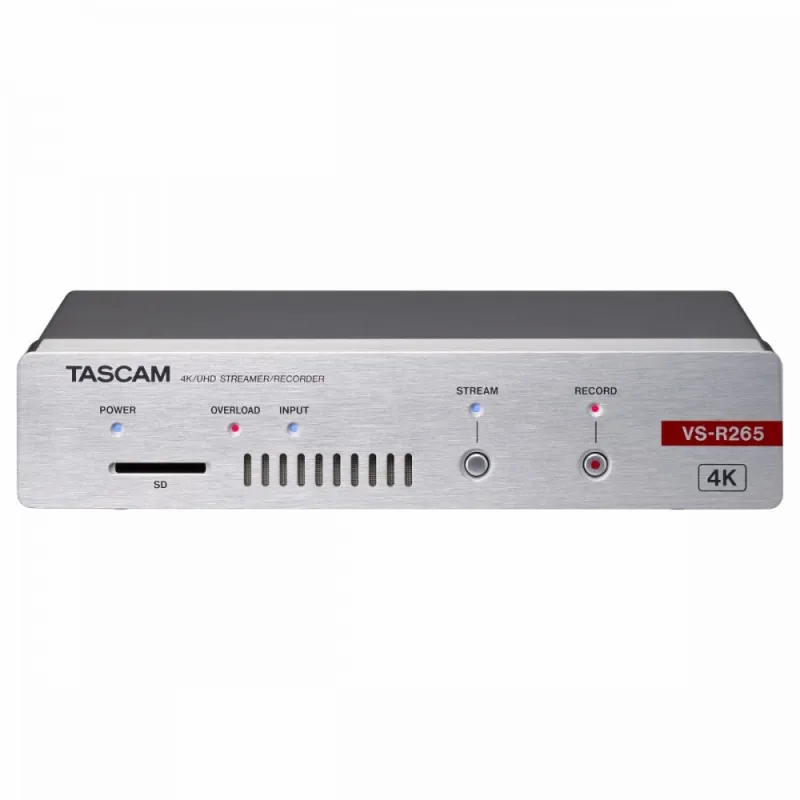

Tascam VS-R265 4K/UHD-Streamer / Recorder

Rated 4.7/5 based on 11 customer reviews

257901 с НДС

Поставка обычно в течении 10 - 18 рабочих дней при наличии на складе производителя



Tascam VS-R265 4K/UHD-Streamer / Recorder

VS-R265 is an AV-over-IP streaming encoder/decoder which offers simultaneous encoding, streaming, recording and decoding of audio/video material in 4K/UHD or Full HD resolution using the H.265/HEVC or H.264 video codecs. They can be used for transmissions over corporate networks and WANs or for live streaming into the internet plus automatic FTP upload of recorded files to network storage. Utilising open streaming formats and protocols, both models support Content Delivery Networks and online live platforms like YouTube, Wowza, Ustream, AWS Elemental MediaLive, CloudFront and others.

With power over Ethernet or external 12 Volt supply, HDMI in/out with audio embedding and de-embedding, and full control from a RESTful API allowing for integration into automation and control systems, these units are extremely versatile. Whereas many other products either lack professional audio levels or connectors, don’t record at all, or can’t simultaneously encode and decode, Tascam VS-R264 and VS-R265 sport fully balanced audio I/O via Euroblock connectors, with configurable reference levels for compatibility with professional audio systems. Unbalanced 3.5-mm stereo mini jacks are also provided for compatibility with consumer devices.

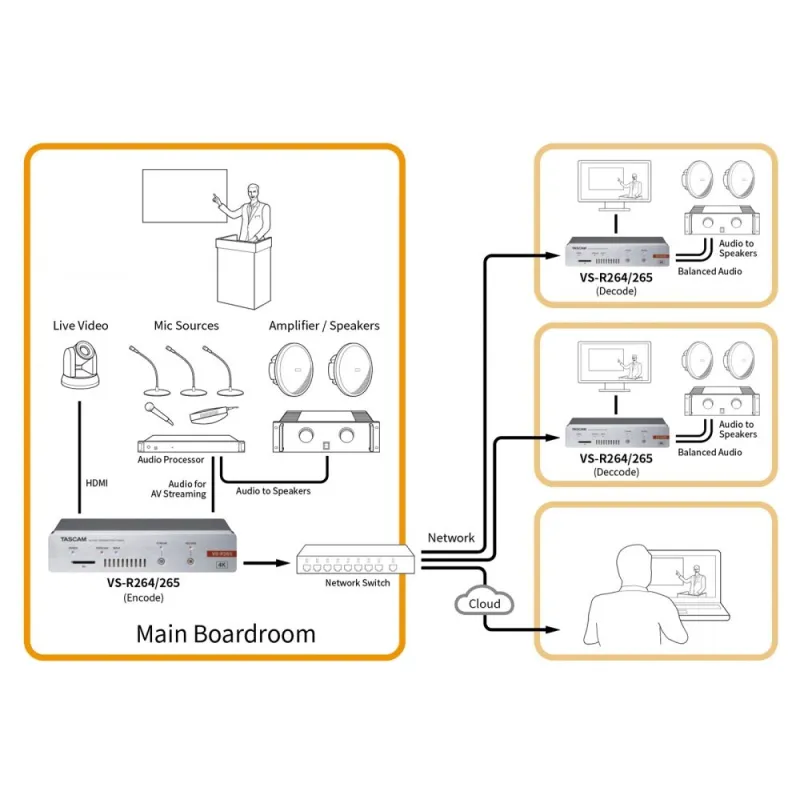

The bi-directional AV operation, live online streaming, secure capture to SD media then later upload for the web site, is ideal for live events, lectures, government sessions, boardroom presentations, concert venues and houses of worship, also for connections between rooms or locations. With a compact 1U, half-rack size, two units can be rack-mounted side by side. They can also be easily placed on a table or screwed under a shelf with the included mounting bracket.

• Encodes, decodes, records and streams in multiple formats – all simultaneously

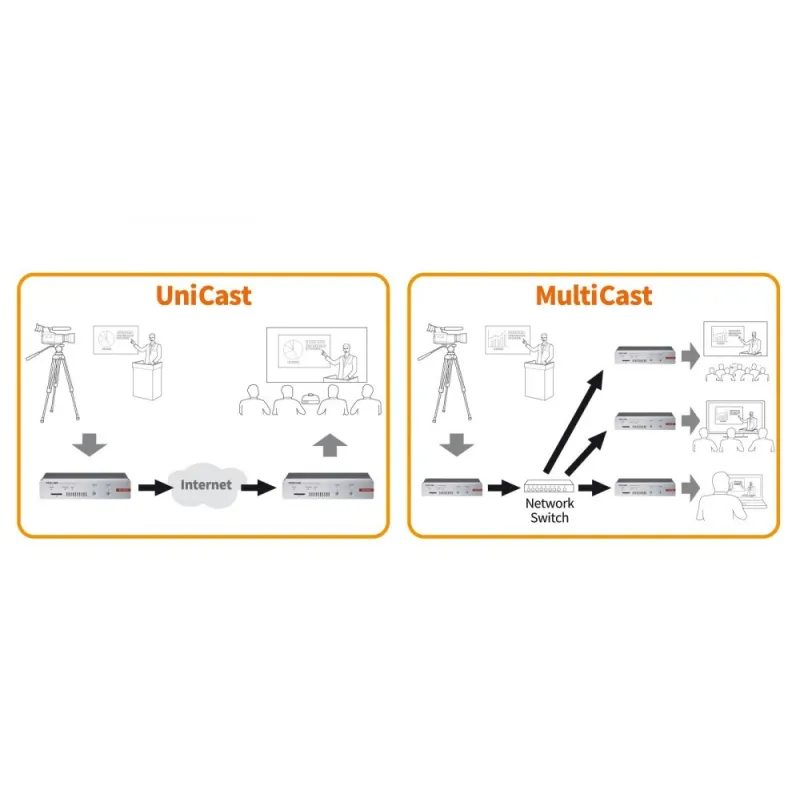

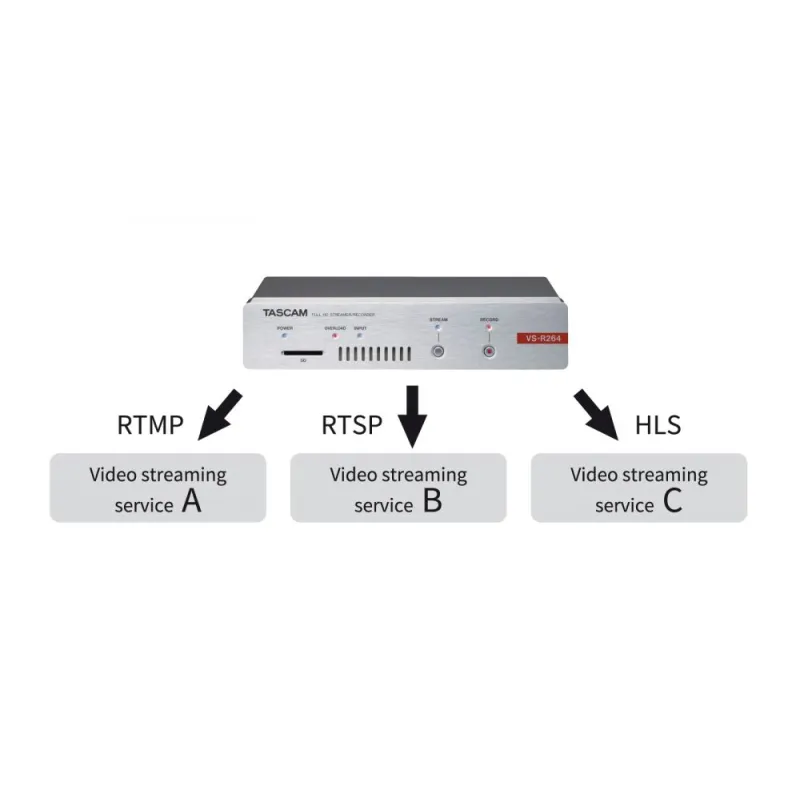

• Outputs multiple streaming protocols (RTMP, RTSP, HLS) plus 2 × unicast and 1 × multicast in parallel
• Streams 4K/UHD (3840 × 2160p) video signals encoded to H.265
• High Efficiency Video Coding (HEVC) delivers the same video quality as H.264 at half the bit rate
• Ideally suited as stand-alone YouTube encoder or for live streaming to other CDNs like DaCast, Facebook, Wowza and others
• Decodes streaming video signals to 4K/UHD (3840 × 2160p)

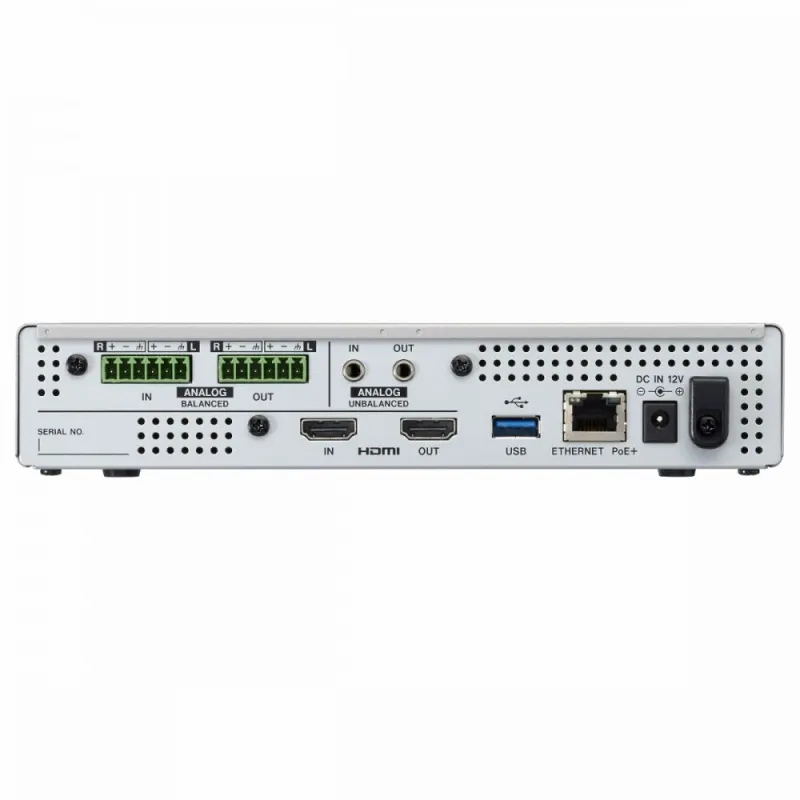

• HDMI input for cameras and other sources, HDMI output for display devices
• RESTful API for integration into control systems in commercial AV installations
• Balanced analogue input and output for high-quality audio transmission (Euroblock connectors)
• Configurable audio output level and selectable audio reference level for easy integration into almost any environment
• Unbalanced audio input and output for easy interfacing with consumer equipment (3.5-mm stereo mini jacks)
• Audio from analogue sources can be embedded into the stream or separated from a stream to drive sound reinforcement systems
• Records video data directly to SD cards, External video storage on USB 3.0 devices
• Ability to upload files from SD cards or external storage devices to FTP servers
• Clear web interface allows to configure unit settings over the network
• Supports Gigabit Ethernet


HDMI input
HDMI v1.4a (Type A)
HDMI output
HDMI v2.0 (Type A)
Input resolutions
2160p@(30, 29.97, 25, 24, 23.98)
1080p@(60, 59.94, 50, 30, 29.97, 25, 24, 23.98)
720p@(60, 59.94, 50)
480p@(60, 59.94)
Frame rate limit
Encoding resolutions
3840 × 2160p
1920 × 1080p
1280 × 720p
950 × 540p
720 × 576p
720 × 480p
640 × 360p
480 × 270p
320 × 180p
Encoding format
H.264, H.265
Encoding bit rates
500 kbit/s to 30 Mbit/s
Bitrate control
Variable, constant
Key frame interval
0.25–1.00–16.5 s
3–1000 frame
Analogue audio inputs (unbalanced)
3.5-mm stereo mini jack
Nominal input level
–10 dBV
Maximum input level
+6 dBV
Analogue audio inputs (balanced)
Euroblock, 3.81 mm pitch
Nominal input level
+4 dBu (Ref. level other than –9 dBFS)
+6 dBu (Ref. level –9 dBFS)
Maximum input level
+15 dBu (Ref. level –9 dBFS)
+18 dBu (Ref. level –14 dBFS)
+20 dBu (Ref. level –16dBFS)
Analogue audio outputs (balanced)
Euroblock, 3.81 mm pitch
Nominal output level
+4 dBu
Maximum output level
+15 dBu (Ref. level –9 dBFS)
+18 dBu (Ref. level –14 dBFS)
+20 dBu (Ref. level –16 dBFS)
Analogue audio outputs (unbalanced)
3.5-mm stereo mini jack
Nominal output level
–10 dBV
Maximum output level
+6 dBV
Output gain
–∞, –72 dB to +6 dB (1-dB steps)
Audio codec
AAC, 64–512 kbit/s, 32/44.1/48 kHz
Storage Media
USB Drive, SD/SDHC card
USB connector
USB 3.0, type A
Recording bit rates
500 kbit/s to 30 Mbit/s
Video transport protocols
RTMP/RTMPS, RTSP, HLS, RTP/UDP in Unicast and Multicast
Simultaneous Streaming
1 × RTMP/RTMPS, 1 x RTSP, 1 x HLS, 2 × Unicast, 1 × Multicast
Streaming bit rates
500 kbit/s to 30 Mbit/s
Network connectivity
Gigabit Ethernet
User interface
Full-featured web UI designed for tablet and desktop computers enables encoder and decoder configuration for unicast, multicast and RTMP
IP configuration
DHCP (default), static
Command and control protocol
HTTP, auto-detect and discover other Tascam encoder and decoder units on subnet
PoE+ or Tascam PS-P1220E AC adapter (sold separately)
Power consumption
Dimensions (W × H × D, including protrusions)
214 mm × 45 mm × 136 mm
0.85 kg
Operating temperature range
0–40 °C
