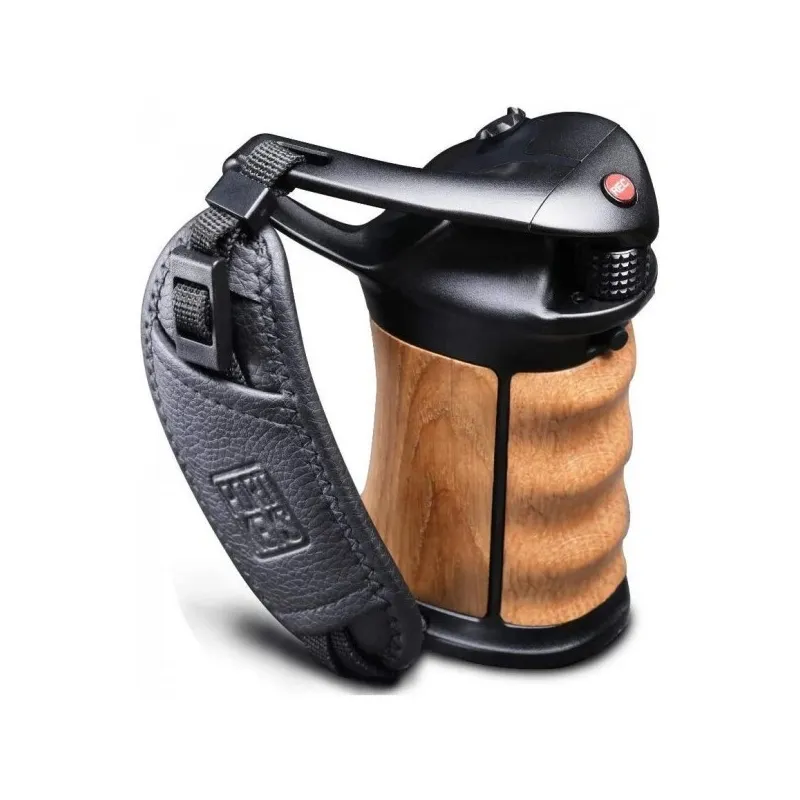

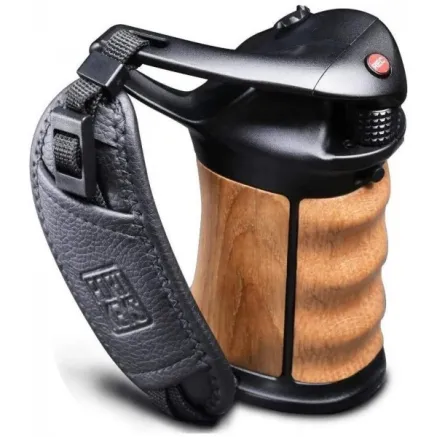

PortKeys Keygrip KEYGRIP

Keygrip handle has a programmable 3-section paddle switch for settings such as ISO, shutter, and aperture at the front of the handle. The 9-way analog stick makes menu settings much faster to navigate! Experience comfort and practicality with all the controls you will need. The Keygrip features are built-in Bluetooth and Wi-Fi for camera control and offers (optional) cables for cameras that don’t have a wireless control option.

This is the perfect low delay wireless setup with the Blackmagic Pocket 4K/6K as it controls and navigates smoothly and quickly using Bluetooth. Other cameras can benefit from the Keygrip via LANC cables also. The Keygrip is made of a premium Aerometal frame with a Red oak handle and an artificial leather strap, making it very comfortable for long usage.

• Milled aluminium frame, red oak handle with an artificial leather strap
• Built-in Bluetooth and WiFi control module, so there is no need for a mobile phone network to connect the camera wirelessly
• Built-in LANC splitter for use with BM5
• 0.9-inch OLED screen
• 3 customized band switches, 1 focus wheel, 1 record switch and 1 nine-way joystick
• Battery voltage display
• Prevents battery damage with electrode reverse protection design
• 2x 18650 batteries required

Controllable Models:

Sony
Wired control for REC, IRIS, ISO, SHUTTER, TAKE PHOTOS, ZOOM, AUTO FOCUS on A9, A6000, A6300, A6400, A6500, RX100, RX02. Also works with Sony A7II, A7III, A7iV camera. These need to be used together with the power supply control component. This control component can ensure that the HDMI image will not have a black screen during recording (This control component is sold separately). Sony FS5, FS7 are cameras that use wired control for the REC, IRS, ZOOM, FOCUS, DIGITAL ZOOM, DISPLAY FUNCTION, JOYSTICK, PLAYBACK.

Canon
Wired control enables REC, IRS, ISO, SHUTTER, TAKE PHOTOS, AUTO FOCUS, Real-time Previews, Manual Focus Features on the 1DX MARK II, 5DS, 5DS R, EOS R, 5D MARK IV, 5D MARK III, 5D MARK II, 6D MARK II, 6D, 80D. REC, IRIS, FOCUS, DIGITAL ZOOM, DISPLAY, JOYSTICK, PLAYBACK features for the C700 PL, C700 GSPL, C300 MARK 2, C300 MARK 2 PL, C200, C200 B, C100, C100 MARK 2.

Panasonic
Wired control enables REC, AUTO FOCUS, FOCUS +/- , WB, COLOUR TEMPERATURE, ISO, AV, TV features on the GH5, GH5S, S1, S1H, S1R, G9. Presently, the EVA1 control feature is under development. Important: The screen of Panasonic camera doesn't work when connected to the handle.

Blackmagic Design
Remote controllable REC, IRIS, ISO, SHUTTER, ZOOM, FOCUS, AUTO EXPOSURE, WHITE BALANCE MODE SELECTION, PROJECT FRAME RATE, CODEC and QUALITY, OFF SPEED FRAME RATE, OFF SPEED RECORDING features on BMPCC 4K 6K. The URSA MINI,BMPCC camera uses wired control which enables REC, IRIS, AUTO FOCUS and MANUAL FOCUS features.

ZCAM
Wired control for REC, IRIS, ISO, SHUTTER (angle/speed), ZOOM, TOUCH FOCUS, Manual to AUTO MODE SWITCHING, RESOLUTION FRAME,Manual FRAME and PLAYBACK features for the E2, E2 S6, E2 F6 camersa.

Tilta
Wired control enables CAL RUN, A and B LIMITS on Nucleus N/M systems.

RED
Wired control enables REC, AV, ISO, SHUTTER, FOCUS, ZOOM, PLAYBACK features. It needs to be used together with the power supply control component (This control component is sold separately).

Package Contents
1x Keygrip Wooden Side Handle
1x Rosette female mounting Plate
1x USB Cable for Upgrade
2x 18650 Batteries
1x 18650 Battery Charger
1x Hand Strap
