Neumann KH 80 DSP KH 80 DSP

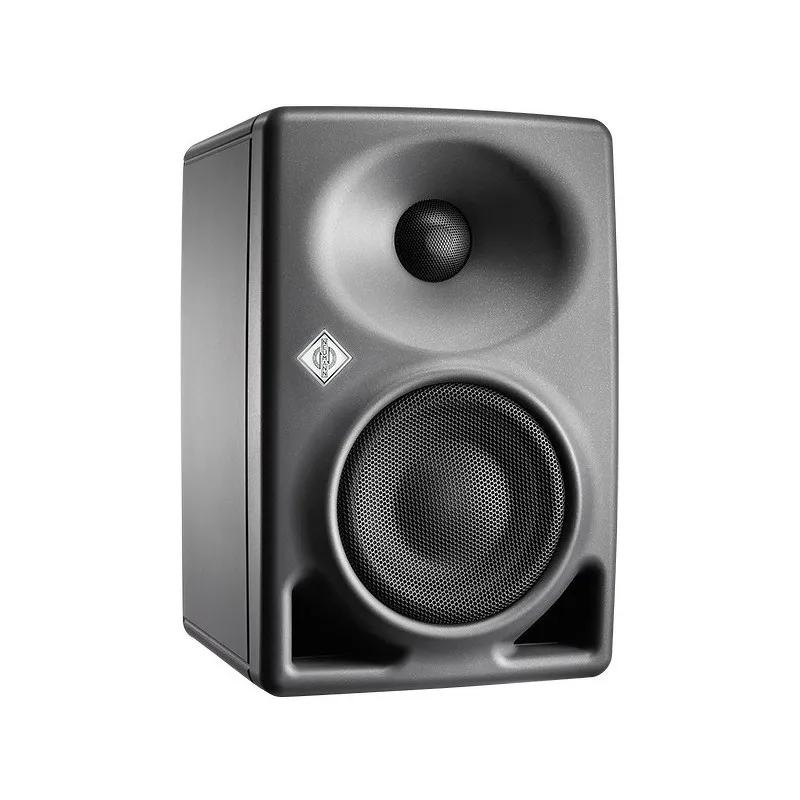

The KH 80 DSP is an active, bi-amp, two-band studio monitor, equipped with a DSP unit with remote access to adjust audio parameters. Like the other models in the KH family, the KH 80 DSP features a precision waveguide (Waveguide MMD™), analog XLR input, input level control (GAIN), adjustable output level (SPL) from 94 to 114dB, physical switches to compensate for the monitor's positioning in the room, and a full line of mounting accessories.

This compact monitor can thus be used for a wide range of applications - as a near-field monitor or as a front/rear speaker in multi-channel systems. It is suitable for music studios, TV and radio workstations, transmission trucks and post-production studios, mastering studios, or even for critical listening in the home.

Features
High quality 4" diameter mid-bass driver with large excursion
Powerful 1" titanium-textile tweeter
Compact, magnetically shielded soundboard made of composite
Soundboard front panel is a compact moulding with no unwanted edges or protrusions
Wider horizontal beam angle provides a wider field of ideal "sweet spot"
Narrower vertical beam angle minimizes unwanted reflections
Bassreflex holes on the front allow reproduction of lower frequencies
Compact size
Powerful amplifiers with large headroom margin
Electronic speaker limiter protection for each band
Status indication and overload indicator in Neumann logo
Active turnout with 48 dB/oct steepness
Mechanical speaker protection
Compensation for listening conditions
"Lipsync" delay in the range of 0 ... 70 ms
Control of audio parameters via Ethernet
Double shielding to avoid unwanted ground loop effects
Fully symmetrical internal signal chain design
Phase-linear crossover with bypass function
Wide range of mounting accessories
