Tripod Heads - Manfrotto 504X Fluid head with a flat base (504XAH) MVH504XAH - buy today in store and with delivery

  • High-quality Manfrotto fluid head
  • Durable aluminium construction
  • Front tilt & panoramic rotation
  • Can carry up to 12 kg
  • 504PLONGR-1 quick release & level

Manfrotto 504X Fluid head with a flat base (504XAH) MVH504XAH

32057 tax incl.

€ 355.45

In Stock
1 Item


New product

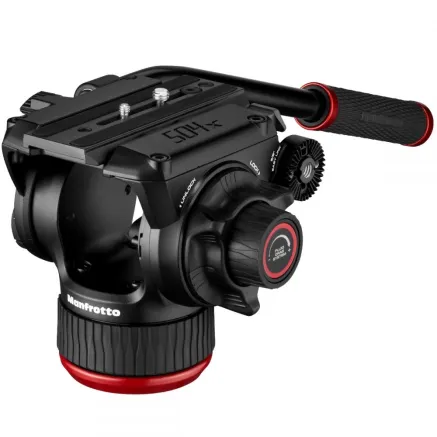

Manfrotto 504X  Fluid head with a flat base (504XAH)

The fluid video head 504X is a further development of the world-conscious 504HD. It is a more compact and lighter version that finally has a flat base (75mm) and has been designed for the most demanding videographers.

  • Adjustable fluid damping for SWING / TILT with new fluid
  • Four-stage system for weight compensation up to 6.5 kg
  • Flat base for mounting on brackets, sliders, etc.
  • Slide plate with side locking
  • Easy-Link connections with anti-rotation technology from Manfrotto
The head is made of aluminum, stands out due to its striking design and carries a maximum of 12 kg.

Thanks to the new fluid technology from Manfrotto, the head always guarantees smooth and smooth swiveling and tilting movements. Premium video recordings have never been easier thanks to the four-stage counterbalance system for loads up to 6.5 kg at a distance of 55 mm from the center of gravity. This makes the use of a wide range of cameras easier and more practical.
Two 3/8-inch Easy-Link connections allow the installation of an external monitor or other accessories on the side of the head. On the left side, a cap covers the 3/8-inch Easy Link connection to avoid scratches during use.
The slide plate with side locking for faster mounting of the camera keeps the video equipment stable and balanced. Aligning the head is child's play thanks to the clever spirit level with backlight.

Technichal Specifications

Upper attachment
1/4″ Screw, 3/8″ Screw
Safety load
Counterbalance System
Variable Steps
Power supply (batteries)
Base diameter
2.2, 4.4, 6.5 kg
Spirit level
Center of Gravity
Easy Link
Front slope
-70° / +90°
Tripod head
Video Fluid Head
Maximum operating temperature
60 °C
Minimal operating temperature
-30 °C
Pan Bar included
Adjustable from 0 to Maximum
Panorama rotation
360 °
Quick Change
Inclination resistance
Adjustable from 0 to Maximum
Working height
14.9 cm
Accessory Compatibility

Capturing smooth reliable footage every time is essential for any filmmaker, the new Manfrotto 504X head will give you unrivaled stability and smoothness time after time. 504X fluid video head is the evolution of the successful 504HD. This is the more compact and lighter version that finally comes with flat base, developed to satisfy videographers’ needs.

New catching design with flat base
Perfect balance of design and performance for optimum balance of strength and size. The flat base ensures versatility.

4 steps CBS and fluidity on both PAN & TILT powered by new fluid technology
Up to 6,5 kg/14,3 lb at 55 mm/2,2 in C.O.G ensures quick set up and optimal performance. Extremely smooth movements are guaranteed by the fluidity function on PAN & TILT.

Size and portability
More compact and lighter then ever with feature an alluminum design ensuring it will last you a life time.

New easy link connectors
Comes with Manfrotto anti rotation technology and Arri pin. The pan bar attachments on both left and right sides of the head give maximum flexibility. On the left side a cap, that cover 3/8” easy link connector, to avoid cutting during the use.

New fluid technology
The variable continuous fluid drag system is powered by a new fluid technology, which sets a new level of performance in the Manfrotto range, boosting the smoothest and judder-free pan and tilt movements.
