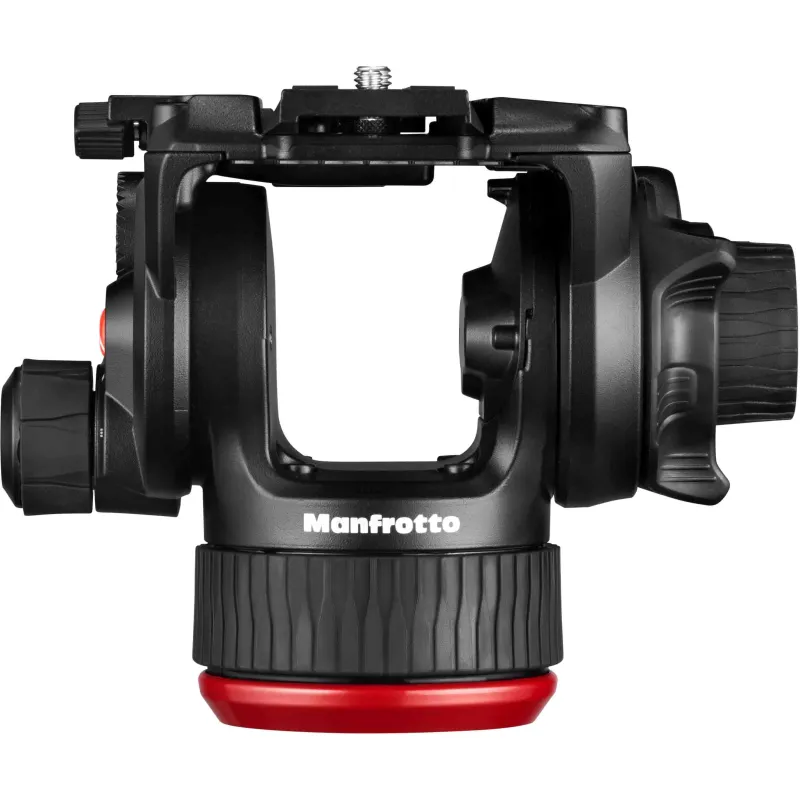

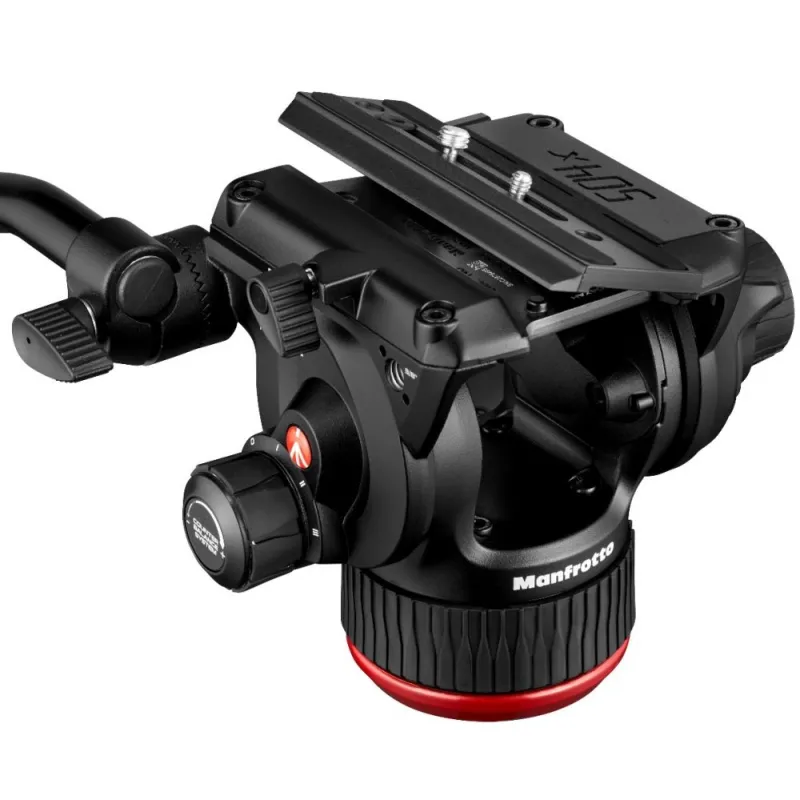

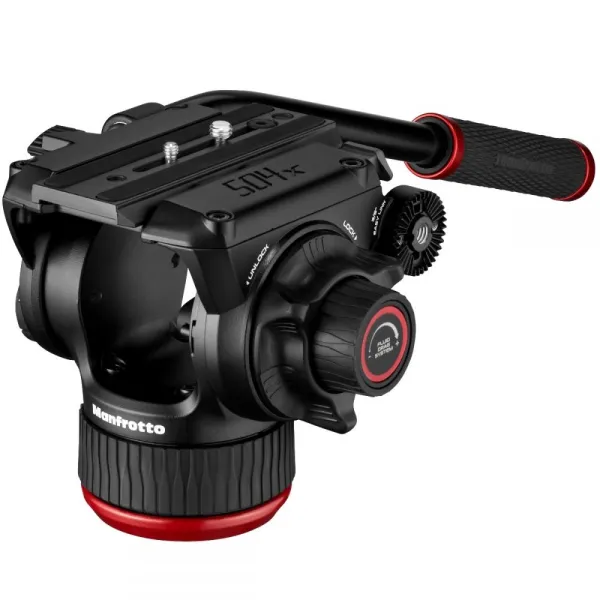

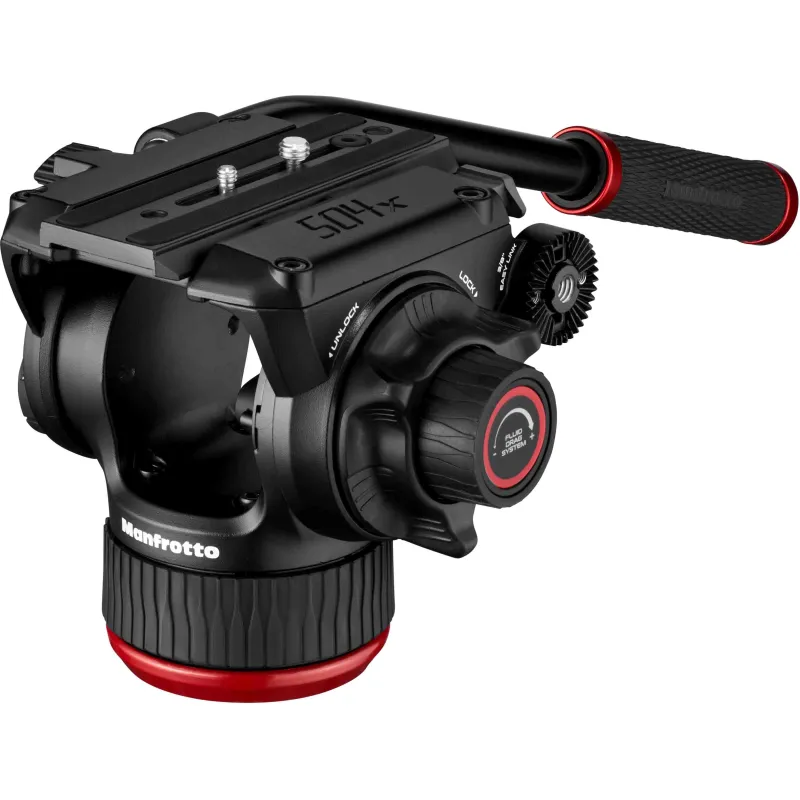

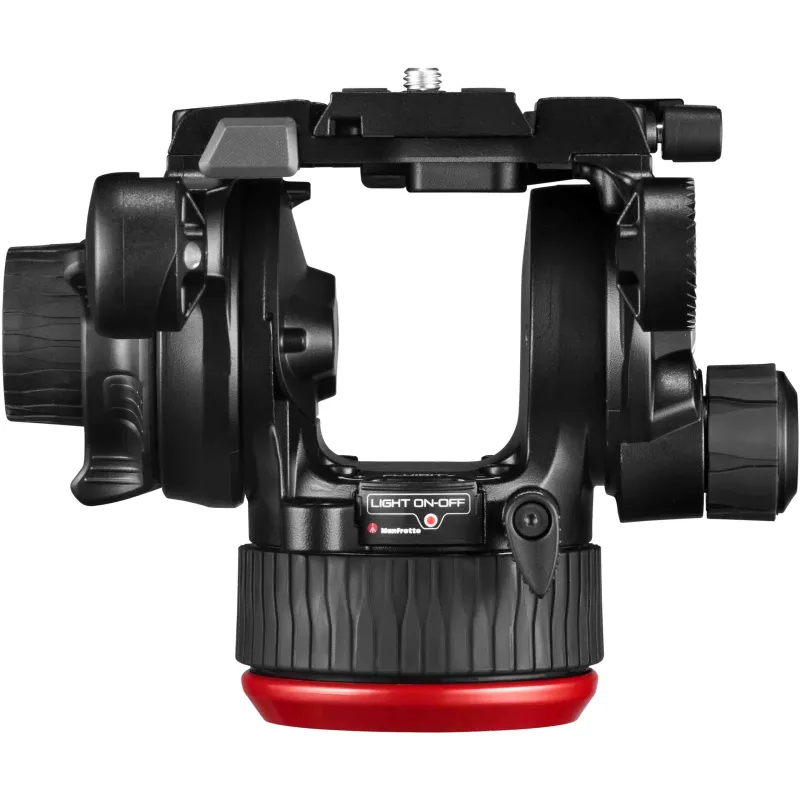

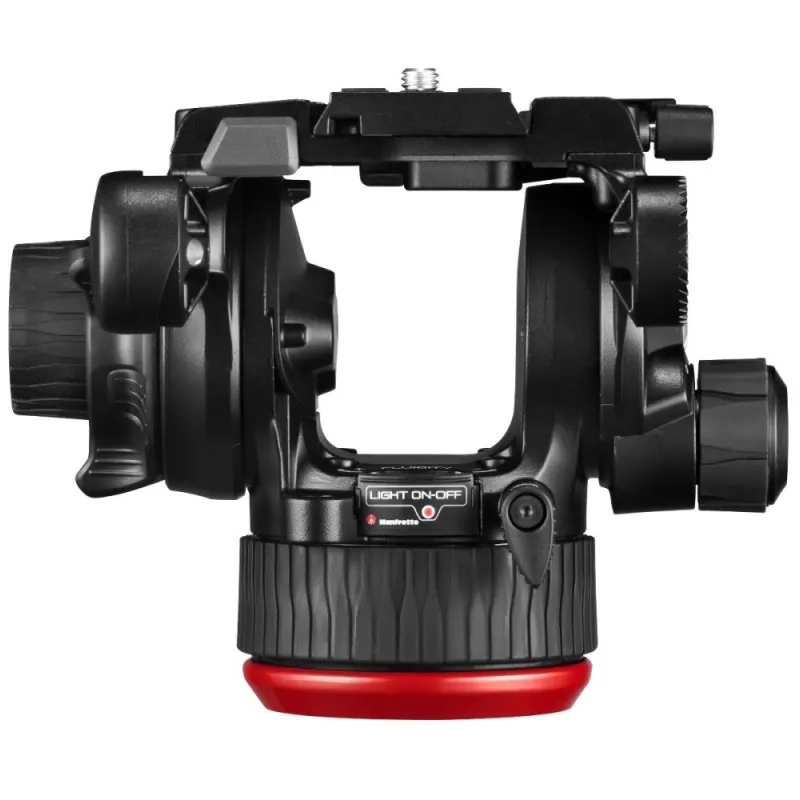

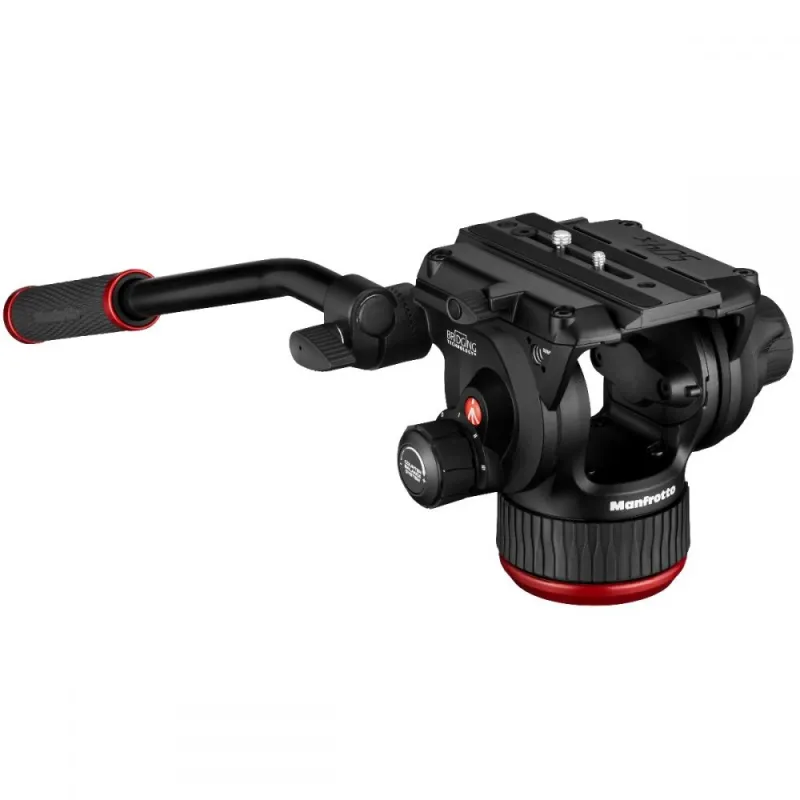

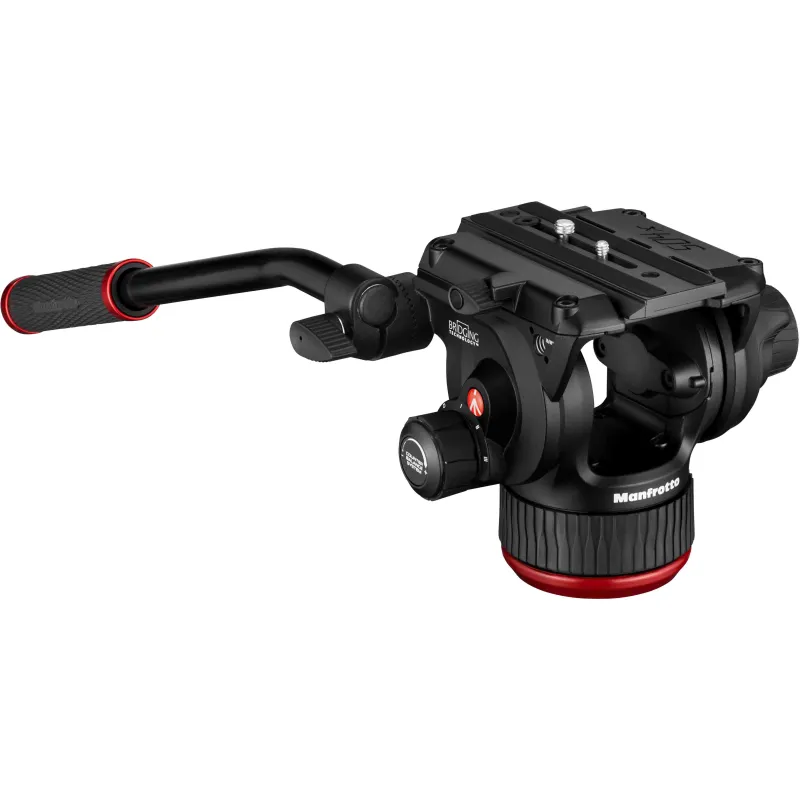

Manfrotto 504X  Fluid head with a flat base (504XAH)

The fluid video head 504X is a further development of the world-conscious 504HD. It is a more compact and lighter version that finally has a flat base (75mm) and has been designed for the most demanding videographers.

• Adjustable fluid damping for SWING / TILT with new fluid
• Four-stage system for weight compensation up to 6.5 kg
• Flat base for mounting on brackets, sliders, etc.
• Slide plate with side locking
• Easy-Link connections with anti-rotation technology from Manfrotto

Technichal Specifications

Weight

2kg

Upper attachment

1/4″ Screw, 3/8″ Screw

Base

Flat

Safety load

12kg

Counterbalance System

Variable Steps

Power supply (batteries)

Lithium

Base diameter

75mm

Counterbalance

2.2, 4.4, 6.5 kg

Spirit level

1

Center of Gravity

55mm

Certification

WEEE; RoHS

Colour

Black

Easy Link

Yes

Front slope

-70° / +90°

Tripod head

Video Fluid Head

Material

Aluminium

Maximum operating temperature

60 °C

Minimal operating temperature

-30 °C

Pan Bar included

Yes

Anti-Swing

Adjustable from 0 to Maximum

Panorama rotation

360 °

Plate

504PLONGR-1

Quick Change

Yes

Inclination resistance

Adjustable from 0 to Maximum

Working height

14.9 cm

Accessory Compatibility

MVAPANBARM; MVAPANBARL

Capturing smooth reliable footage every time is essential for any filmmaker, the new Manfrotto 504X head will give you unrivaled stability and smoothness time after time. 504X fluid video head is the evolution of the successful 504HD. This is the more compact and lighter version that finally comes with flat base, developed to satisfy videographers’ needs.

New catching design with flat base
Perfect balance of design and performance for optimum balance of strength and size. The flat base ensures versatility.

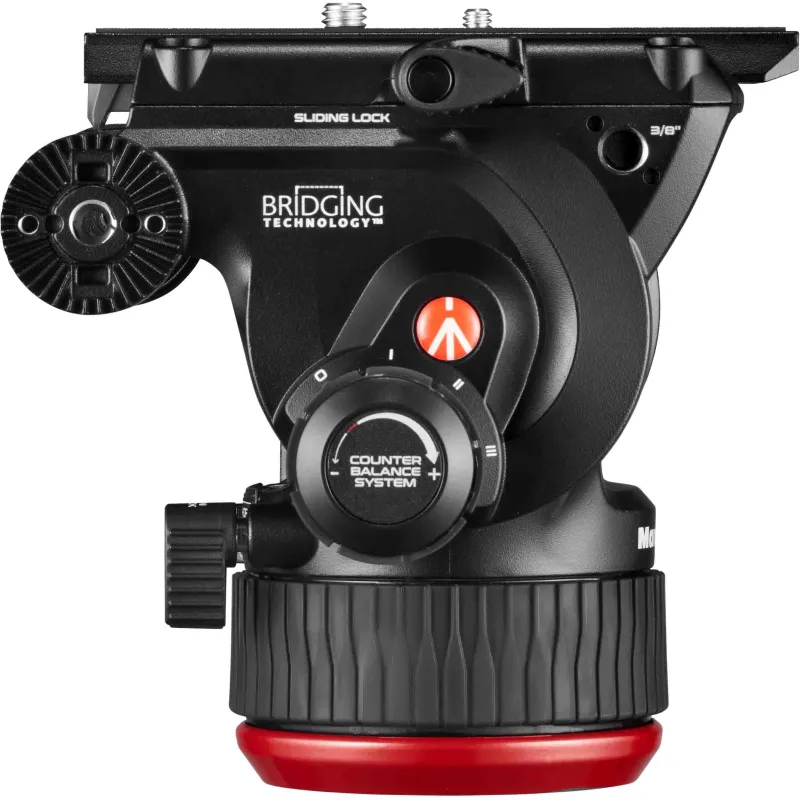

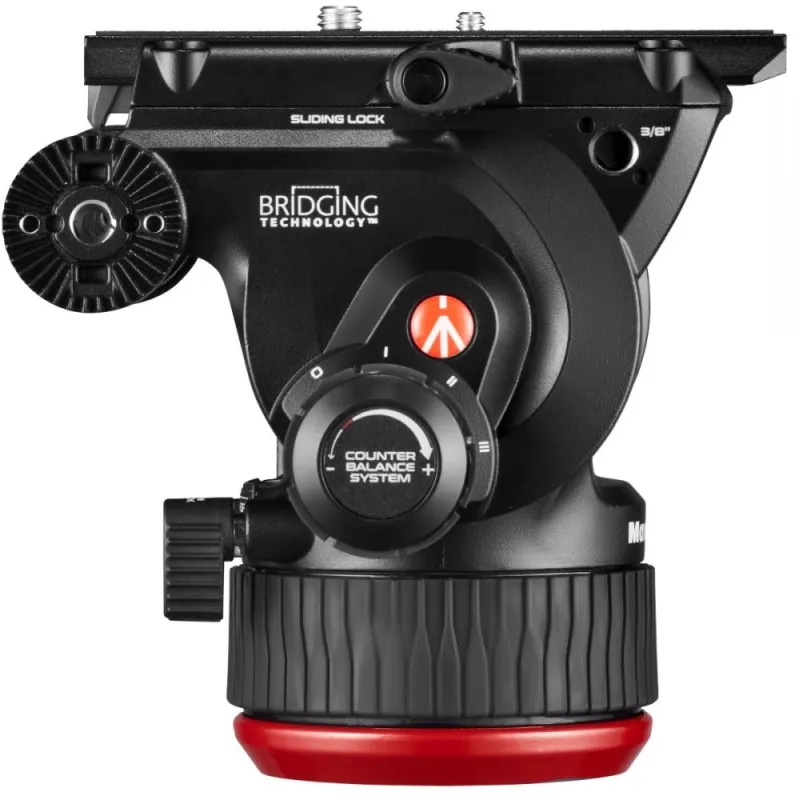

4 steps CBS and fluidity on both PAN & TILT powered by new fluid technology
Up to 6,5 kg/14,3 lb at 55 mm/2,2 in C.O.G ensures quick set up and optimal performance. Extremely smooth movements are guaranteed by the fluidity function on PAN & TILT.

Size and portability
More compact and lighter then ever with feature an alluminum design ensuring it will last you a life time.

New easy link connectors
Comes with Manfrotto anti rotation technology and Arri pin. The pan bar attachments on both left and right sides of the head give maximum flexibility. On the left side a cap, that cover 3/8” easy link connector, to avoid cutting during the use.

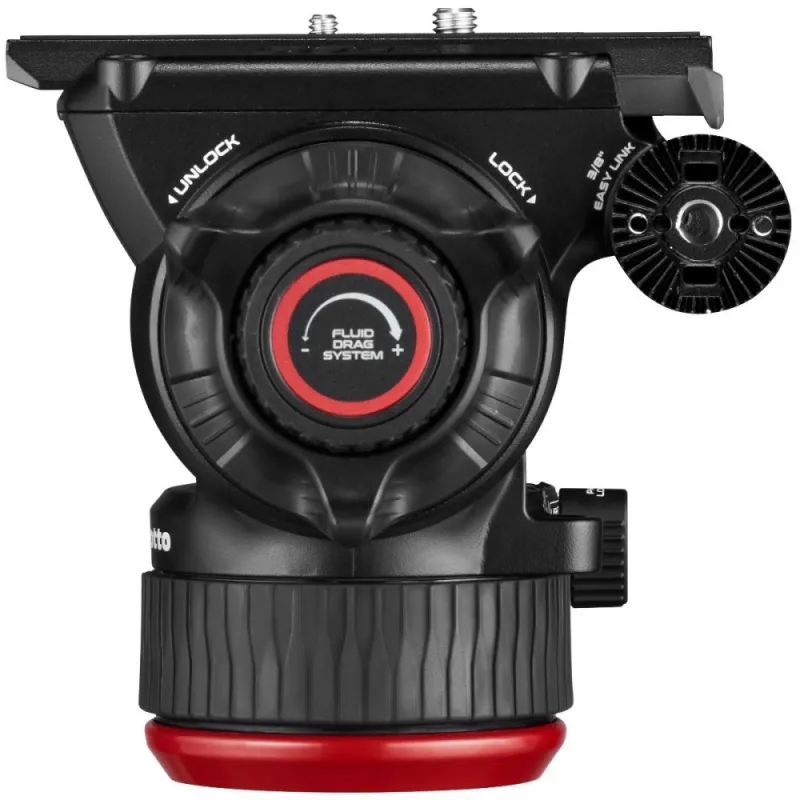

New fluid technology
The variable continuous fluid drag system is powered by a new fluid technology, which sets a new level of performance in the Manfrotto range, boosting the smoothest and judder-free pan and tilt movements.
