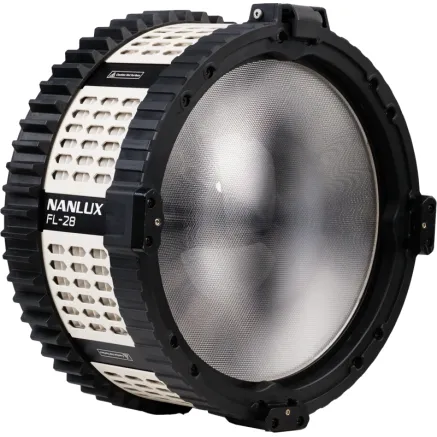

NANLUX FL-28 FRESNEL LENS FOR EVOKE

FL-28 Fresnel Lens for Evoke Series

The new Nanlux FL-28 is a lighter, more compact NL mount Fresnel lens for Evoke series LED spotlights. Designed in conjunction with leading gaffers and DPs it offers a high-performance Fresnel solution that is easier to transport and rig. It will be particularly appreciated by smaller crews needing lighter-weight solutions and gaffers working out of trucks where space is at a premium.

The FL-28 beam angle can be adjusted from 17 to 43, and it weighs only 3.86kg/8.5 lbs (excluding barn doors). When used with the Evoke 1200B LED spotlight, it can output a massive 50,330 lux @3m (5600K, 17 beam angle). With the Evoke 900C, the FL-28 creates an output of 38,580 lux @3m (5600K, 17 beam angle).

The FL-28 uses the innovative Nanlux NL mount system which is encoded so that the Evoke fixture it attaches to knows exactly how to behave and sets the light accordingly. Primarily designed for the Evoke 1200, Evoke 1200B and Evoke 900C, the FL-28 will also work on the most recent Evoke 2400B spotlight, but due to its higher power the FL-28 will safely restrict the output by about 50% when attached, resulting in a reading of 25,610 lux @3m (5600K, 17 beam angle). NANLUX will soon launch another new Fresnel lens specifically for the Evoke 2400B that makes full use of its higher output.
