Blackmagic Design Blackmagic PYXIS 6K EF

Blackmagic Design PYXIS 6K EF (BM-CINECAMCPYXD60LFEF)

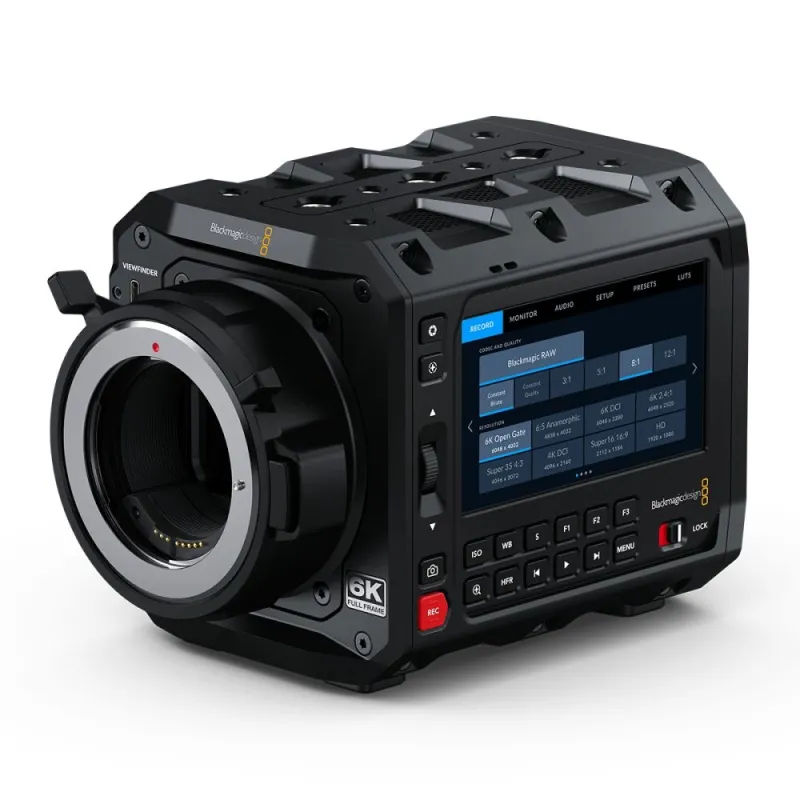

Blackmagic PYXIS 6K is an advanced digital film camera with an incredibly versatile design that lets you build the perfect camera rig for your production. This new model features a 6048 x 4032 full frame HDR sensor with built in optical low pass filter, dual native ISO, dual CFexpress media slots, all in a customizable body with flexible mounting options and side plates. Blackmagic PYXIS 6K is available in three different models with fixed L-Mount, PL or locking EF lens mounts.

• 36 x 24mm full frame 6K 6048 x 4032 sensor.
• Open gate 3:2, full height 6:5 anamorphic and Super 35 for creating cinematic content.
• Choice of models with L-Mount, PL or locking EF lens mounts.
• Records full resolution up to 36 fps or 120 fps windowed.
• Built-in 4″ HDR 1500 nit LCD screen.
• Records Blackmagic RAW and H.264 proxies.
• Extremely fast dual CFexpress card recording.
• Ethernet or mobile data for mobile remote streaming.
• Optional Blackmagic URSA Cine EVF.
• Features 12G-SDI for monitoring with status overlay.
• Professional mini XLR input with 48 volt phantom power.
• Complete streaming solution for YouTube, Facebook, Twitter and more.

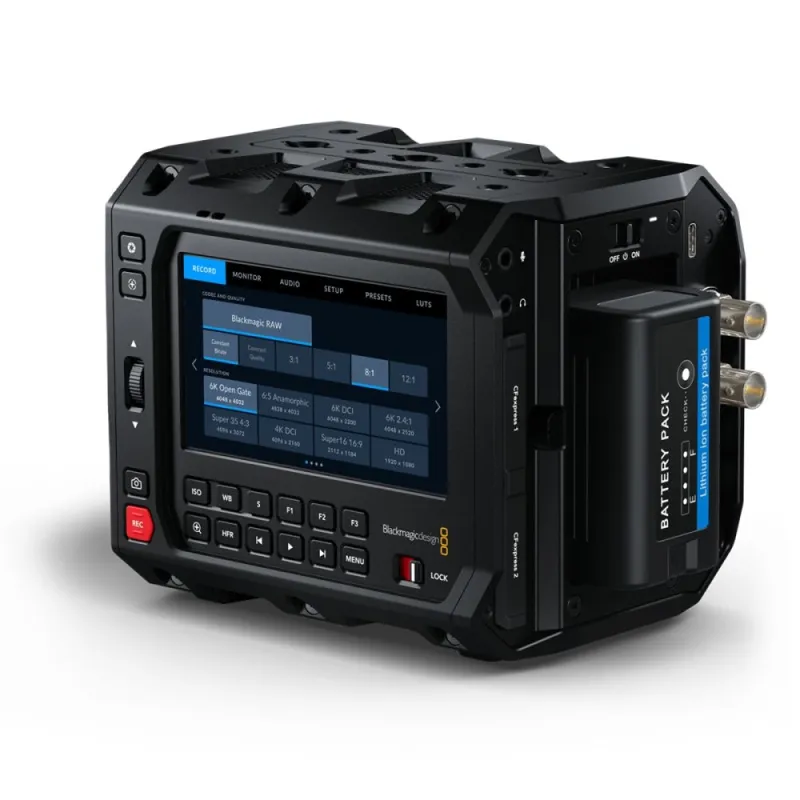

• High capacity BP-U series batteries.

The Blackmagic PYXIS features two built in CFexpress card recorders, and a USB-C expansion port for recording direct to external flash media disks or an SSD. CFexpress media are more durable and faster than even older media so are perfect for recording full resolution, 12-bit Blackmagic RAW files. Plus, with dual CFexpress slots, customers can keep recording because customers can hot swap full cards without stopping.

Blackmagic PYXIS supports the optional Blackmagic URSA Cine EVF to make outdoors and handheld shooting accurate and easy. Customers get an integrated high quality 1920 x 1080 color OLED display with built in proximity sensor, 4 element glass diopter for incredible accuracy with a wide focus adjustment.

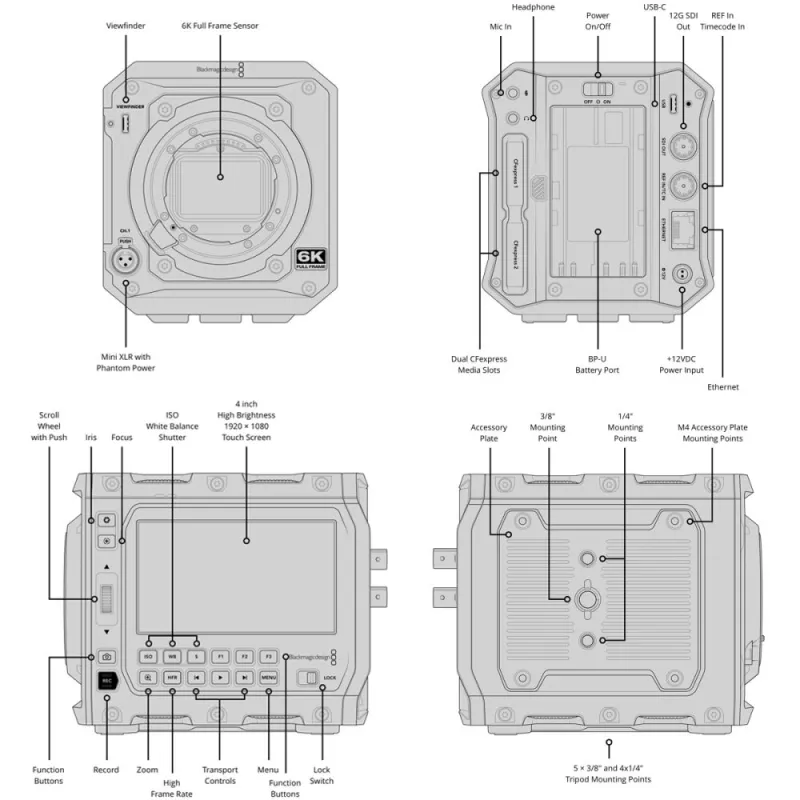

Blackmagic PYXIS features a wide range of connections for audio, monitoring, power and more. The camera includes a 12G-SDI out for monitoring with support for HDR and Ultra HD output. That means customers can connect an SDI display for on set monitoring of images, with or without overlays that show critical information and camera status. SDI allows for much longer cable runs than HDMI making it easier to reach monitors that are further away on set.

In the Box
1× Blackmagic PYXIS 6K
1× Lens turret dust cap
1× PYXIS Standard Plate
1× PYXIS SSD Plate
1× 60W power supply with locking connector and international adapters
1× DaVinci Resolve Studio activation key
