SmallRig 4194 Rosette Arm (7)

SmallRig 4194 Magic Arm wit Rosette Gear 7"

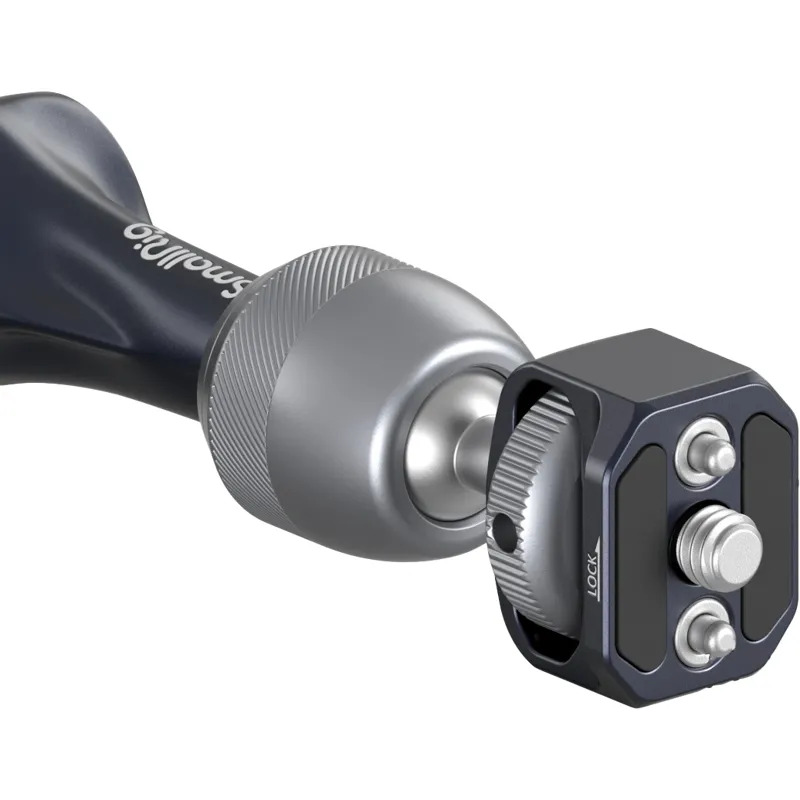

The thumbscrew helps lock accessories and has holes for hex spanner for further tightening.

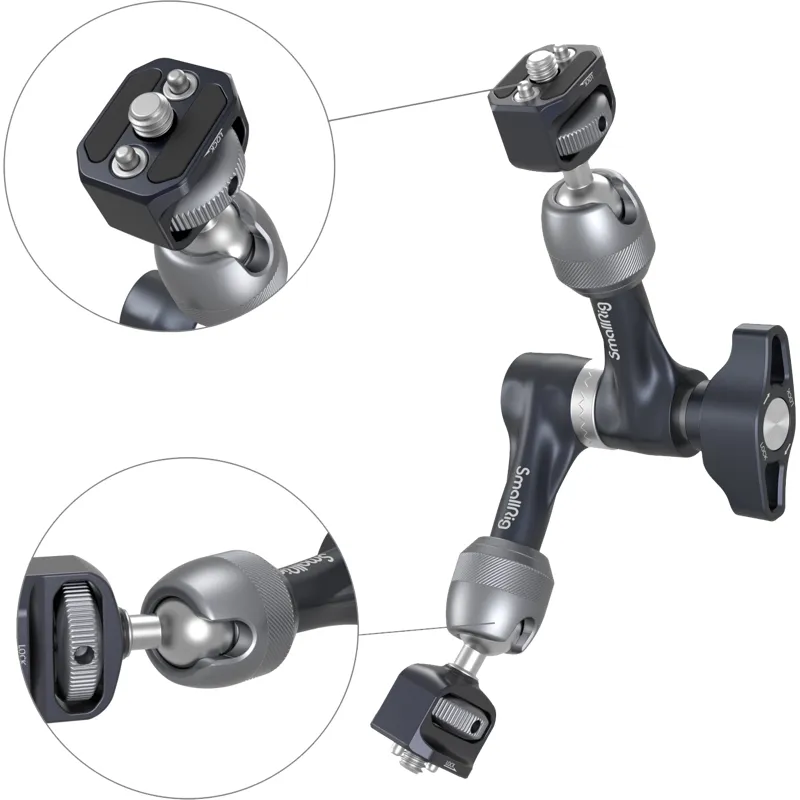

And the ball heads, which are 360-degree adjustable, come with a spiral pattern to increase friction and bear up to 3kg of load.

At the stainless steel rosette joint, there is a spring for easier angle adjustment.

An ergonomically designed anti-off thumb lever, with a built-in thrust ball bearing, feels smooth and comfortable and quickly locks arm and ball heads in a second.

This rosette arm is CNC machined for more robustness and durability and also equipped with pads on both accessory mounts to prevent scratches.

Note:
Load capacity: 3.5kg

Compatibility:
1/4"-20 screws Accessories

Package includes:
1x Rosette Arm

Stretchable pins
1/4 20 screws
Load capacity up to 3 kg
New locking structure at the rosette joint
Dimensions: 178.0 x 69.0 x 25.5 mm
Weight: 214.0 5.0g
Material: aluminium alloy, stainless steel, silicone
2 year warranty
,
Flexibility and stability

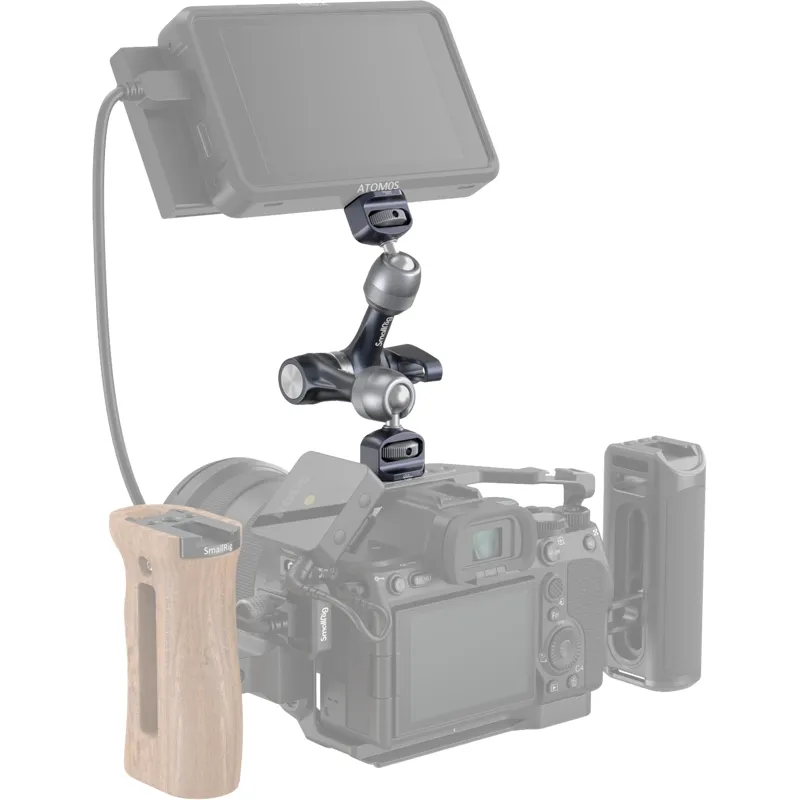

The SmallRig 4194 Rosette Arm (7) is made of aluminium and stainless steel. It has 1/4 20 screws and stretch pins at both ends for securely attaching accessories, especially with anti twist holes such as monitors, LED video lights, microphones, mobile phones, iPads and action cameras.


Highlight

Stretchable pins and 1/4 20 screws prevent twisting
Load capacity of up to 3 kg
New locking structure at the rosette connection

When locking accessories, the thumb screw helps and has holes for hex spanners for further tightening. The ball heads, which are adjustable 360 degrees, have a spiral pattern to increase friction and can support up to 3 kg of load. On the stainless steel rosette joint is a spring for easier angle adjustment.


An ergonomically designed anti slide thumb lever, with a built in pressure ball bearing, feels smooth and comfortable and locks the arm and ball heads quickly in a second. This rosette arm is CNC milled for increased robustness and durability and also features pads on both accessory mounts to prevent scratches.,

1 x SmallRig 4194 Rozet Arm (7)
