SmallRig 2092 Universeel 15mm Rail Support Systeem Baseplate
Помощник на основе искусственного интеллекта
или спросите
TheLibec RT40RB are tripod legs designed in the same way as the ENG versions of the RT50B. Great emphasis has been placed on stability, strength, light weight and above all a higher drawbar pull.
TheLibec RT40RB
are tripod legs designed in the same way as the ENG versions of the RT50B. Great emphasis has been placed on stability, strength, light weight and above all a higher drawbar pull. The tripod legs have a weight of just over 3kg and have a standard 75mm hemisphere, making them compatible with a number of video heads from competing manufacturers as well.Libec RT40RB tripod legs are used on the RS-450R and RS-450RM
competent kits.The locking system on the top of the legs is made of aluminum, providing a tighter grip, better overall stability and longer tripod life. An adjustable and lockable SP-2B bottom strut, a telescopic and lockable BR-6B middle strut, and a set of FP-2B
rubber feet can be added to theRT30B tripod legs.- Load capacity: 35 kg
- Material: aluminium
- Weight: 3.1 kg
- Height: from 47.5 to 157.5 cm
- Hemisphere: 75mm
- Number of sections: 2

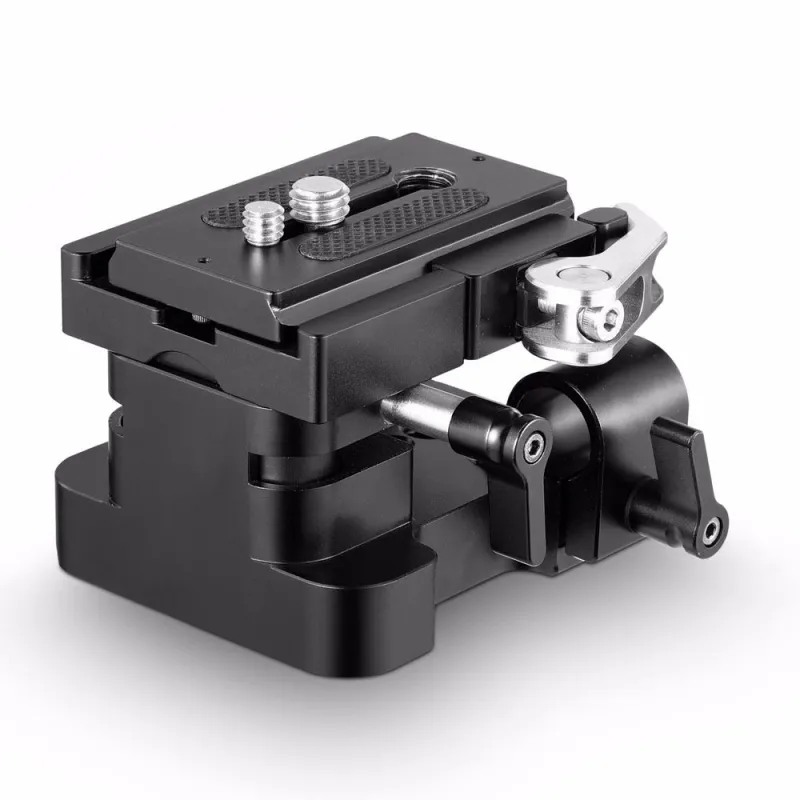

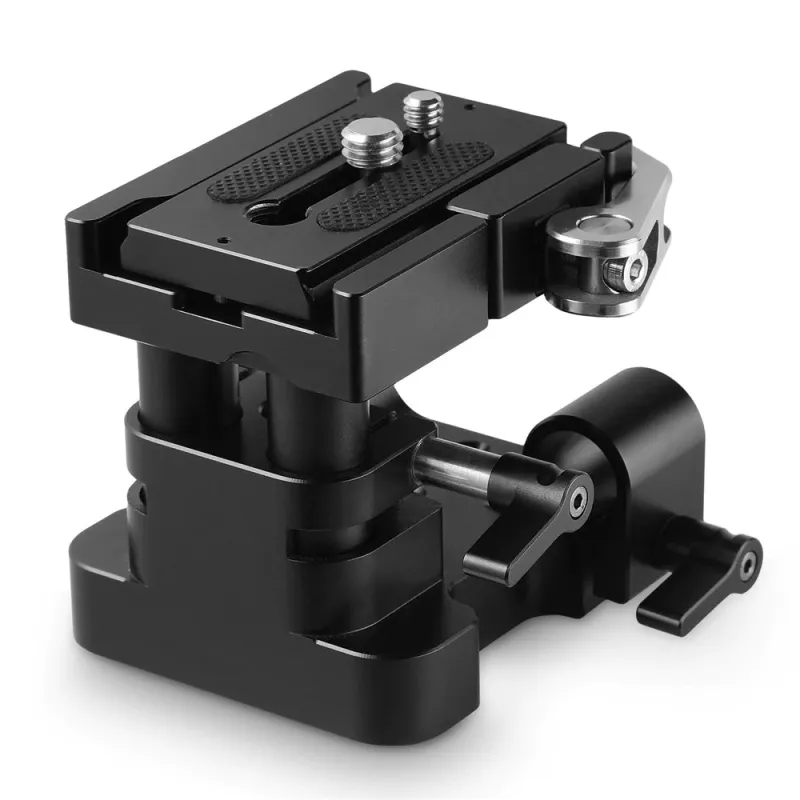

SmallRig Universal 15mm Rail Support System Baseplate 2092 could offer lots of additional attachment options and enables the camera to release its potential to the utmost as per the needs of cameraman during shooting.
Key Features:
1.It is a universal adjustable baseplate compatible with mirrorless camera and DSLR.
2.It comes with a baseplate and a QR plate of Arca-swiss standards, locked via a locking lever for quick release and attachment of camera.
3.It could be adjusted in height via a wingnut, and thus it enables 85mm rod height. The height from QR plate to rod center ranges from 33.6mm to 57.6mm.
3. It is equipped with 1/4’’-20 and 3/8’’-16 threaded holes to attach QR plates and then tripod.

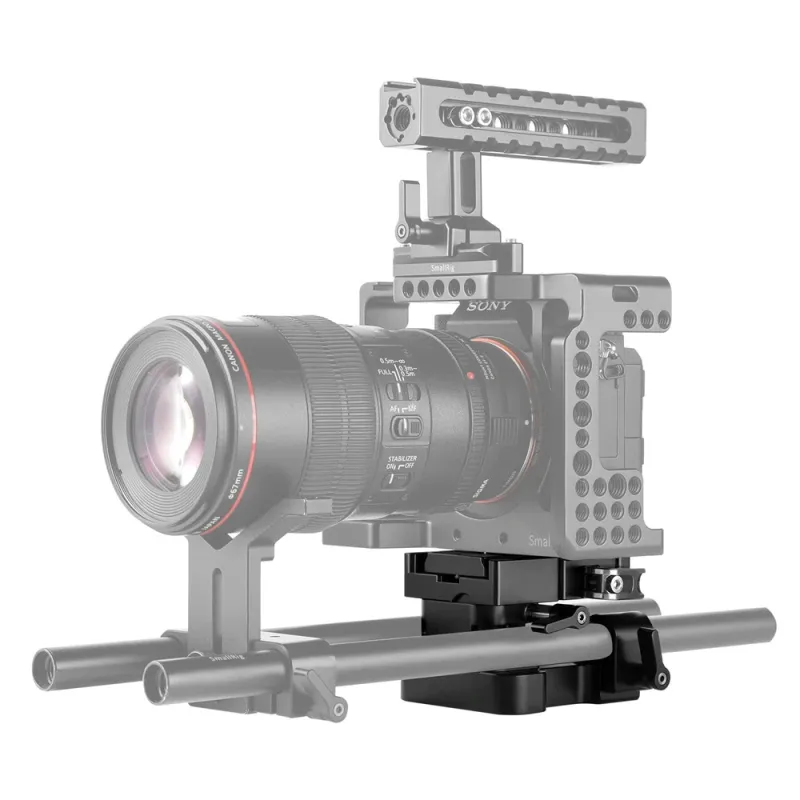

It locks the QR plate via a locking lever for quick release and attachment. The Arca QR plate on the top could be mounted with the camera, and it features convenient detachment and it is very easy to switch to handheld shooting. It could attach 15mm Rod 1053 for follow focus, matte box and Long Lens Support with Dual 15mm Rod Clamp 1087 based on your needs.
Its adjustable height could reach up to 24mm in maximum via a wingnut, thus it ensures 85mm rod height. The height from QR plate to rod center ranges from 33.6mm to 57.6mm. Wingnut at the side enables enough space for adjustment manually.
It is equipped with 1/4’’-20 and 3/8’’-16 threaded holes at the bottom for DIY operation. Therefore, it could attach Quick Dovetail (Manfrotto) 1280/1767/1647 and then sit on Manfrotto tripod.
Compatibility:
Sony A6000/A6300/A6500/A7/A7II/A9/A7RIII
Panasonic GH3/GH4/GH5/G80/GX85/G85/G7
Fujifilm X-T2
BMD BMPCC
[HASH_PROD_TABS_3ah2]
1x Universal 15mm Rail Support System Baseplate
[HASH_PROD_TABS_3ah2]
Product Dimensions: 108x72x57 mm
Net Weight: 415g
Package Size: 116x112x95 mm
Material(s): Aluminum Alloy
Key Features:
- It is a universal adjustable base plate compatible with mirrorless and digital SLR cameras.
- It comes with a base plate and QR plate according to Arca-swiss standards, locked with a locking lever for quick release and fastening the camera.
- The height can be adjusted with a wing nut, allowing for a bar height of 85mm. The height from the QR plate to the centre of the rod ranges from 33.6 mm to 57.6 mm.
- It is equipped with 1/4''-20 and 3/8''-16 threaded holes for attaching the QR plate and then the tripod.
Package Contents:
- 1x SmallRig Universal 15mm Rail Support System Baseplate 2092B
- Product dimensions: 108x72x57 mm
- Net weight: 415 g
- Package size: 116x112x95 mm
- Material(s): Aluminum alloy
