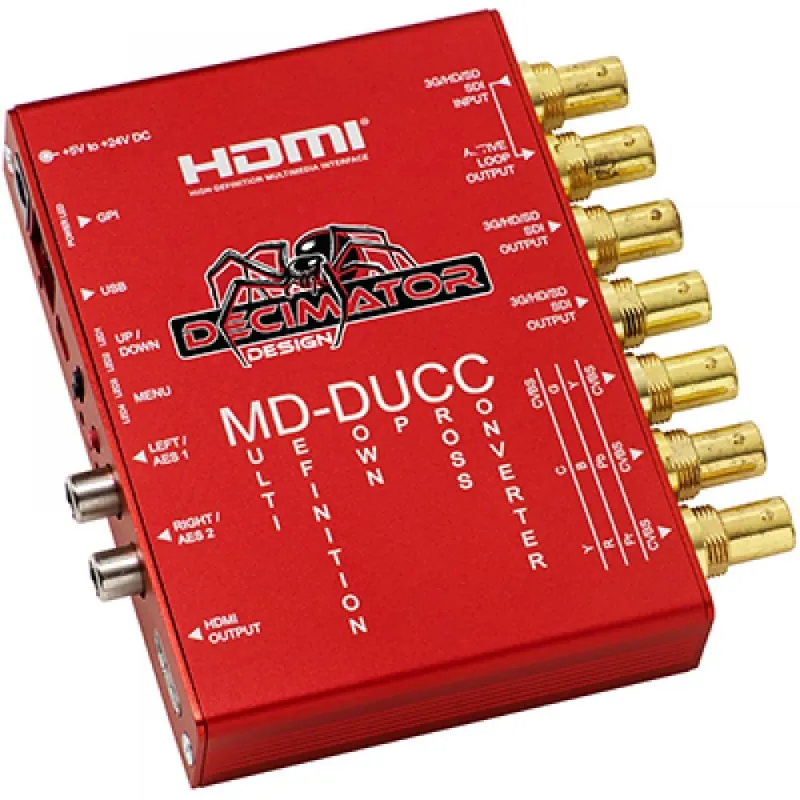

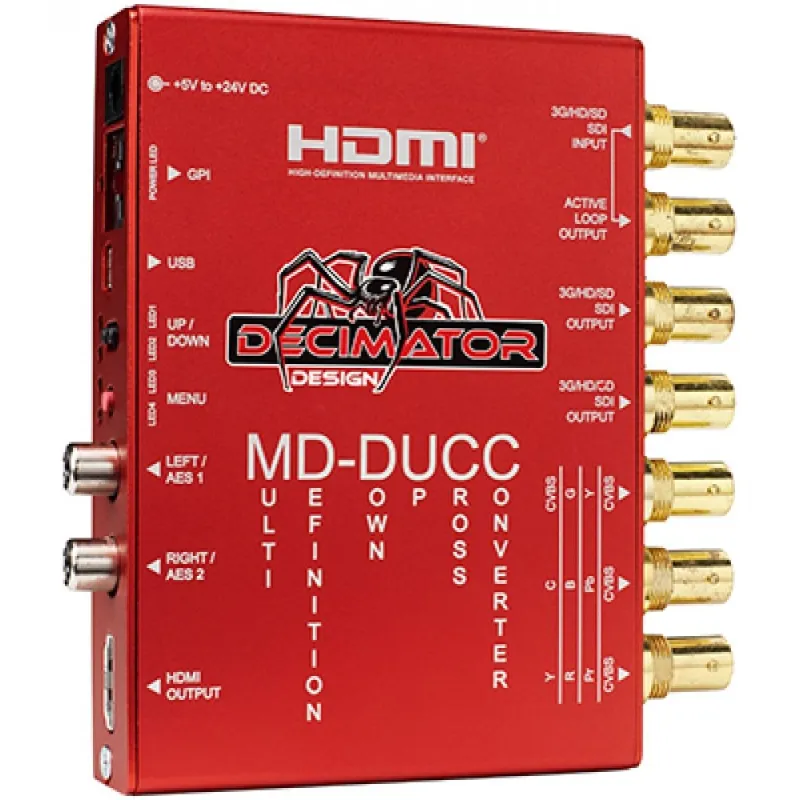

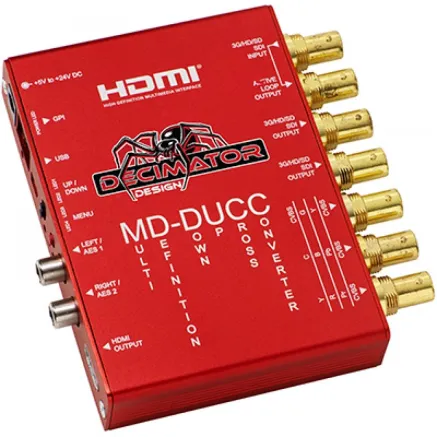

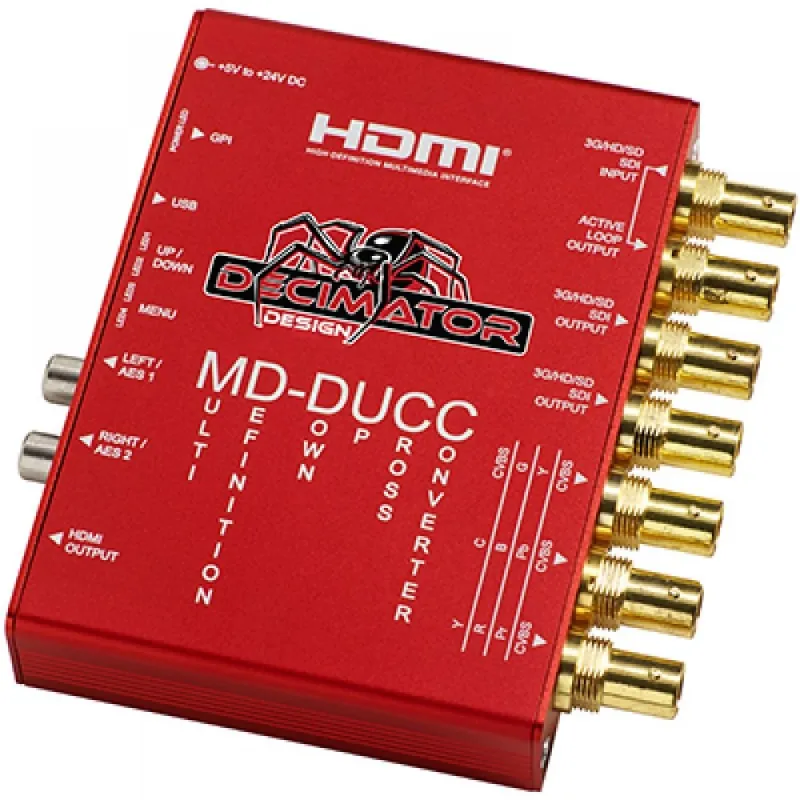

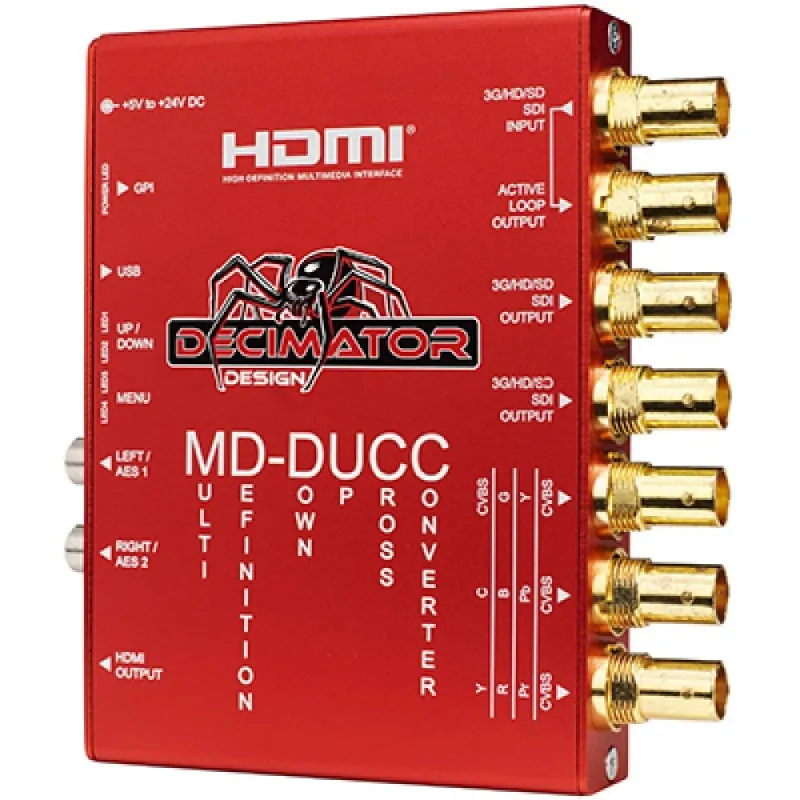

Decimator Design MD-DUCC SDI to SDI/HDMI/Analogue Converter

Decimator Design MD-DUCC SDI to SDI/HDMI/Analogue Converter

The MD-DUCC from Decimator Design is a must have for any broadcast professional; the variety of functions it performs eliminate the need for several products. Input any format of SDI and select whatever output format you require - whether in SDI, HDMI, or analogue.

Features:
– Auto detection of 3G, HD or SD (26 formats total)
– True Down Up Cross conversion (select the required output format, no matter what the input format is)
– Complete 16:9, 14:9 and 4:3 aspect ratio conversion
– Selectable analogue video output
– 2x 10-bit outputs with audio automatically delayed or passed
– 2x RCA connectors to output de-embedded audio
– Professional motion-adaptive de-interlacing
– Full 16 Channel audio metering
– Graticule Generator/Text Overlays
– Active Loop Through Output
– GPI on RJ-45 for Tallies

The MD-DUCC is controlled either via USB on a Mac/Windows app or on-unit using the dip switch. The unit comes with a Locking DC Power Supply, HDMI Cable & Mounting Bracket.

Delivery Contents:
MD-DUCC
Power Supply
HDMI Cable

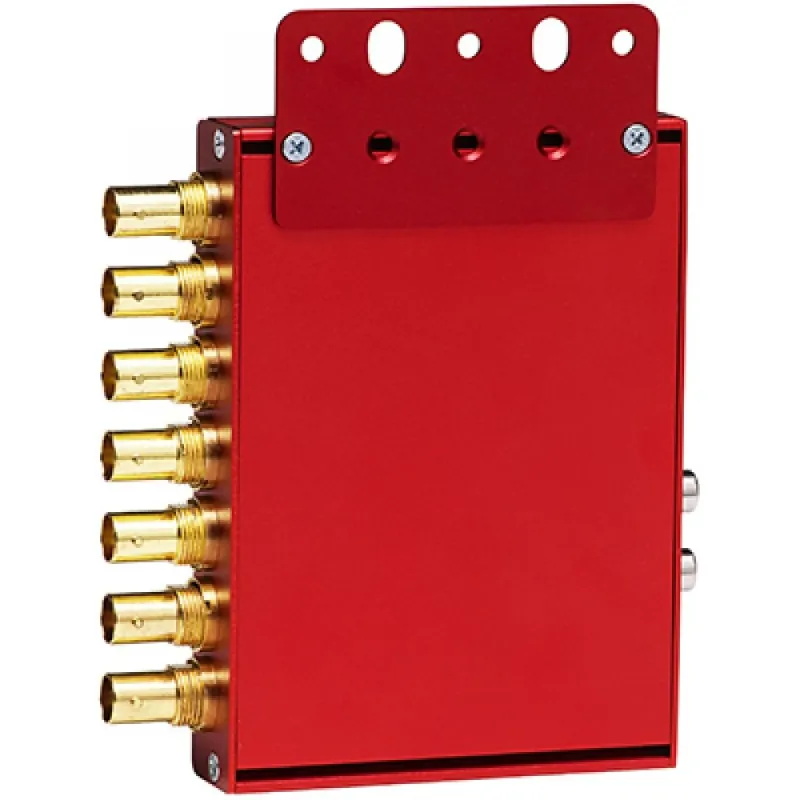

Mounting Bracket

VIDEO FORMATS

3G:SMPTE 424M@2.97 and 2.967Gb/s: 1080p@60/59.94/50Hz; HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s: 1080i@60/59.94/50Hz; 1080p/psf@30/29.97/25/24/23.98Hz; 720p@60/59.94/50/30/29.97/25/24/23.98Hz; SD:SMPTE 259M@270Mb/s: 625i50; 525i59.94

INPUTS

(3G/HD/SD)-SDI 10-bit: Conditional Maximum Equalization cable length of 400M for SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A

LED STATUS

Power; Signal Lock

POWER

+5V to +24V DC, ~5 Watts; Positive Centre Pin

CONTROLS

HDMI format type; Analogue Video format type; Output format; Aspect conversion type for HD to HD, HD to SD, SD to HD and SD to SD conversions; On-Screen Overlays Enables; Basic Audio Meter control; Basic Graticule Enables

OUTPUTS

HDMI; 1 × (3G/HD/SD)-SDI Active Loop-Through; 2 × (3G/HD/SD)-SDI 10-bit Outputs; (3 × CVBS) (Y, Pb, Pr) (G, B, R) (CVBS, Y & C); AES 1 Unbalanced Analogue Audio - Left; AES 2 Unbalanced Analogue Audio - Right

DIMENSIONS

90mm × 123mm × 23mm (3.5" × 4.8" × 0.9")
