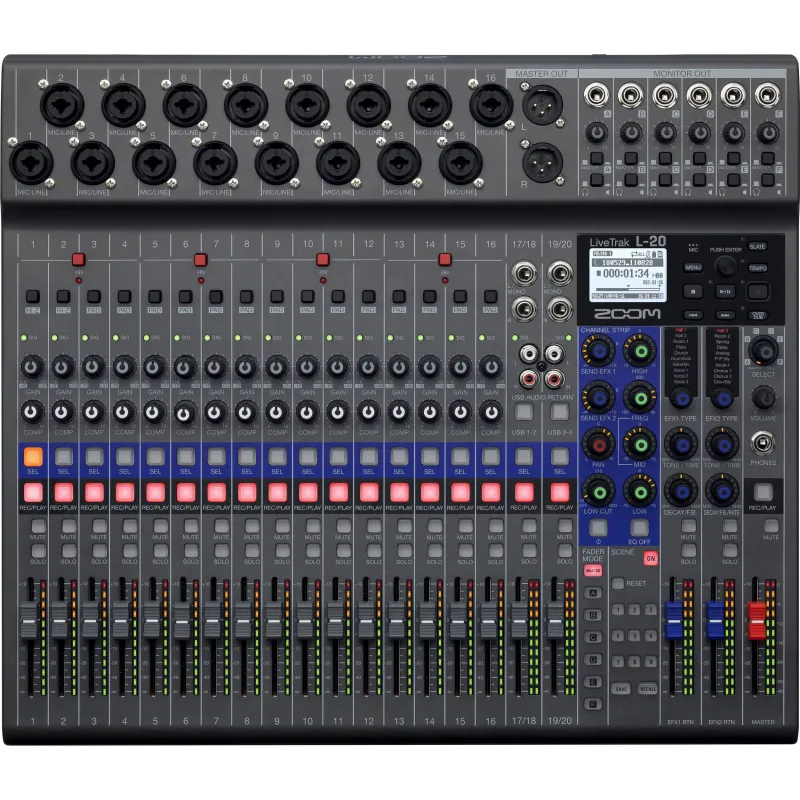

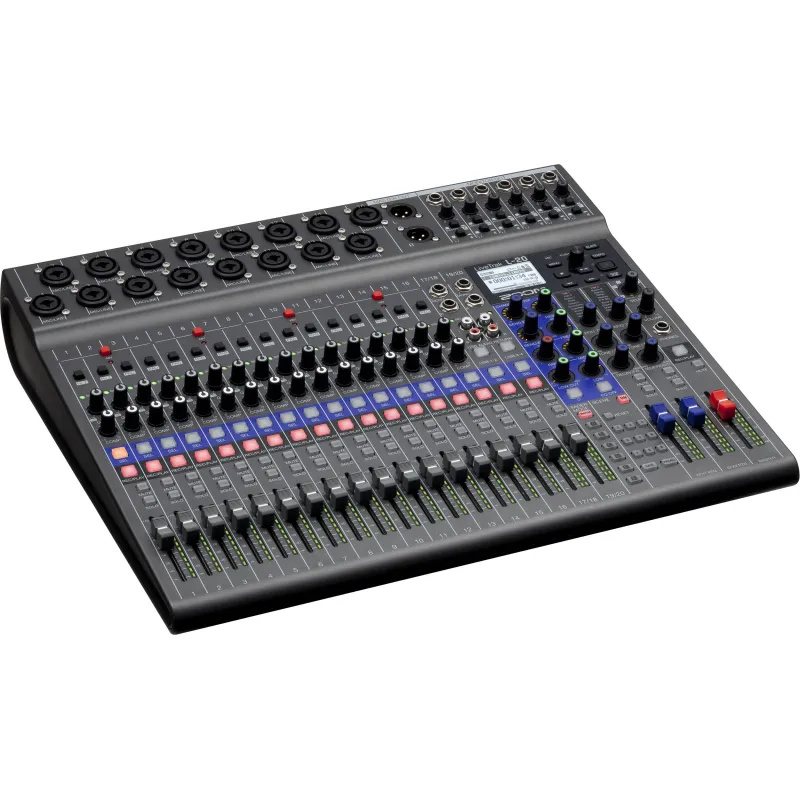

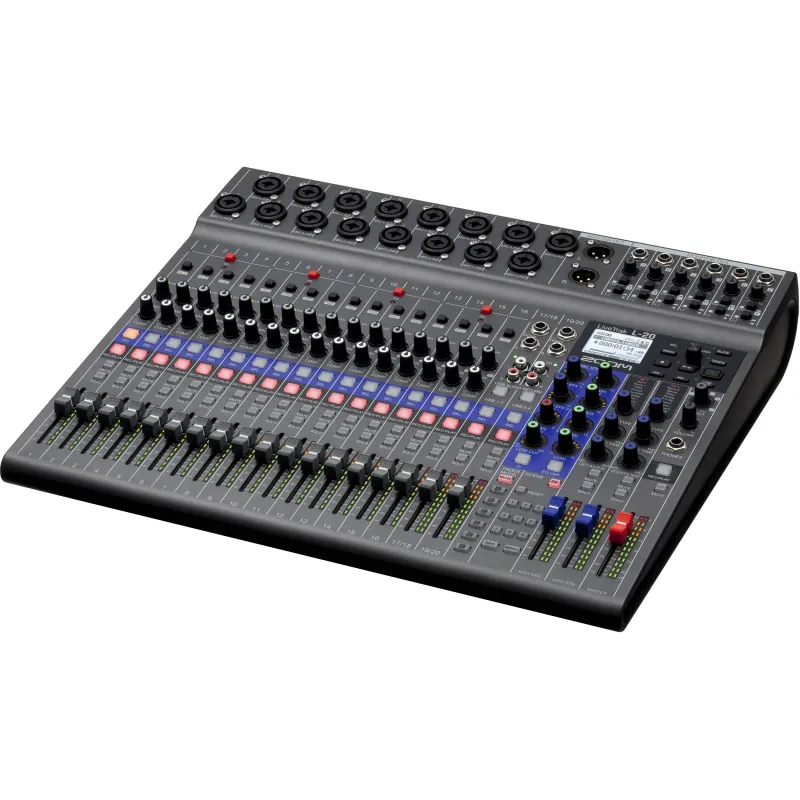

Zoom L-20 LiveTrak - 20-Input Digital Mixer and Recorder
Состояние New product
или спросите
- L 20 Full Length
- L 20 Overview
- L 20 Overdubbing
- LiveTrak L-20: Audio Interface Mode
- Zoom LiveTrak L-20: Updating the Firmware
- Zoom LiveTrak L20: Skype For Podcasting (Mix Minus)
- Zoom LiveTrak L-20: Control App for iPad
- Zoom LiveTrak L-20: Saving Scenes
- Zoom LiveTrak L-20: Custom Output Mixes
The highly flexible Zoom LiveTrak L-20 is a 20-input digital mixer and multi-track recorder, well suited for live performances, studio recording, band rehearsals, podcasts, and more. The mixer features 16 mono channels, each with combo mic/line XLR-1/4" inputs with high gain, low-noise microphone preamps, +48V phantom power, and a single compression knob, while the two stereo inputs offer dual 1/4" and RCA inputs. Channels 1-2 also offer Hi-Z inputs for connecting guitars and basses. All channels work with the on-board channel strip, which provides a low-cut filter, a 3-band EQ, a pan control, and two send FX for sending signals to the 20 built-in high-quality effects processor with two dedicated EFX Return channels.
The LiveTrak L-20 features balanced XLR main outputs, while the six monitor outputs utilize balanced TRS 1/4" connectors, each with the ability to set up customized mixes. Simply connect your headphones or a stage monitor and adjust the levels to taste. There are nine snap-shot presets, which allow you instant recall of different setups and sessions.
The built-in SD recorder can simultaneously record every channel and the master fader stereo signal output for a total of 22 tracks at resolutions up to 24-bit/ 96 kHz. Files can easily be copied to a computer and used in a DAW. In addition, overdubbing and punching in/out can be done as expected when using the unit as a multi-track recorder. The L-20 can also function as a 22-in/4-out USB audio interface, allowing you to record directly to your favorite software DAW or to iOS devices. Other notable features include 12-segment LED meters on all channels, a built-in metronome, and a built-in slate mic for identifying takes. The Zoom LiveTrak L-20 ships with a power cord and a USB cable.
| Number of Inputs | Mono (Mic/Line): 16 x Combo XLR-1/4" / 6.35 mm Stereo (Line): 4 x 1/4" / 6.35 mm TS, 4 x RCA (2 x stereo pairs) |
| Number of Outputs | Master Out: 2 x XLR Monitor/Headphone Output (A-F): 6 x 1/4" / 6.35 mm TRS Headphone: 1 x 1/4" / 6.35 mm |
| Input Gain | Pad Off: +16 to +60 dB Pad On: -10 to +34 dB Hi-Z ON: +6 to +50 dB |
| Input Impedance | XLR: 3 kOhms TRS: 10 kOhms/1 MOhm (when Hi-Z on) |
| Maximum Input Levels | Mono (Mic/Line) Pad Off: 0 dBu (at 0 dBFS) Pad On: +26 dBu (at 0 dBFS) Stereo (Line): +14 dBu |
| Phantom Power | 48 V |
| Maximum Output Levels | Master Out: +14.5 dBu Monitor A-F (TRS): +14.5 dBu Monitor A-F (Headphones): 42 mW + 42 mW at 60 Ohms |
| Output Impedances | 100 Ohms |
| Buses | Master: 1 Monitor: 6 Send EFX: 2 |
| Channel Control | Channel Strip Comp: Yes, channels 1 to 16 Low Cut: 40 to 600 Hz, 12 dB/oct EQ High: 10 kHz, ±15 dB, shelving Mid: 100 Hz to 8 kHz, ±15 dB, peaking Low: 100 Hz, ±15 dB, shelving |
| Level Meters | 12-segment |
| Effects | 20 types |
| Recorder | Maximum Simultaneous Recording Tracks: 22 at 44.1/48/96 kHz Maximum Simultaneous Playback Tracks: 20 Recording Format: WAV 44.1, 48, 96 kHz, 16/24-bit, mono/stereo Recording Media: 16 MB to 2 GB SD cards 4 to 32 GB SDHC cards 64 to 512 GB SDXC cards |
| Audio Interface | 44.1 / 48 kHz Recording: 22 channels Playback: 4 channels Bit Depth: 24-bit Interface: USB 2.0 |
| Card Reader | Mass Storage: SD, SDHC, SDXC |
| USB Host | Class-compliant USB 2.0 high-speed |
| Sample Rate (Audio) | 44.1, 48, 96 kHz |
| Frequency Characteristics | 44.1 kHz: 20 Hz - 20 kHz (-1.0 dB) 96 kHz: 20 Hz - 40 kHz (-3.0 dB) |
| Equivalent Input Noise | Actual Measurements: 128 dB EIN (IHF-A) with +60 dB/150 Ohms input |
| Display | LCD with backlight (128×64 resolution) |
| Power Supply | AD-19 AC Adapter: 12 VDC / 2 A |
| Power Consumption | 24 W maximum |
| Dimensions (W x D x H) | 17.5 x 15.3 x 3.3" / 445.0 x 388.4 x 82.6 mm |
| Weight | 8.2 lb / 3.7 kg |
| Вид продукта | Записывающие устройства |
| Соединительный штекер | XLR |
