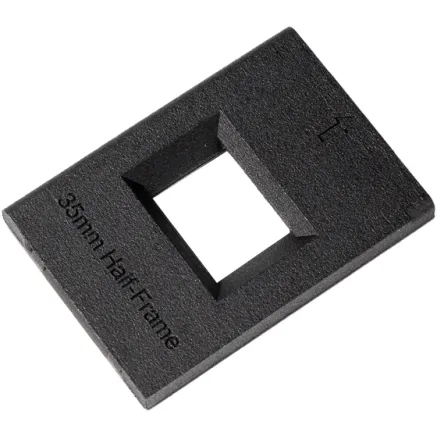

VALOI EASY35 HALF-FRAME HOLDER VLEZ35HF

Easy35 35 mm Film Holder

The Easy35 35 mm film holder allows you to scan 35 mm film in optimal quality by masking additional light and shortening the film path to ensure optimal flatness. This holder fits into the Easy35 system just like any other compatible holdersimply remove the existing holder and insert this new one.

Gate Dimensions

The gate dimensions are approximately as follows:

• Length: 21 mm
• Width: 25.7 mm

This allows you to see the entire frame with a slight border. VALOI Easy35 holders operate by passing the film through a thin slot that runs through the entire holder and exits on the other side. This way, you can easily push or pull the film through, saving you time and effort compared to traditional shell holders.

Design Features

All VALOI holders utilize a double S-curve design, where the film slot is curved before and after the scanning gates. By curving the film in one direction on both sides, greater flatness is achieved than would be possible with a straight slot.

Key Features

• Compatible with 35 mm film
• Excellent film flatness
• Displays the entire frame

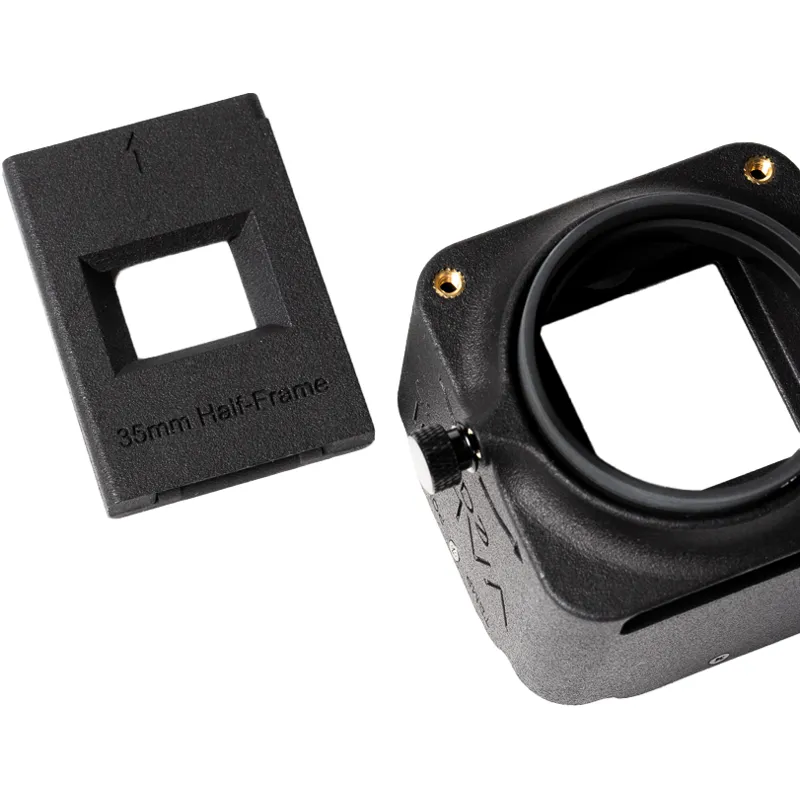

• Suitable for the Easy35 system
• Technical selling points
• Gate width: 25.7 mm
• Gate length: 21 mm
• Double S-curve design for great flatness
• Tight 0.4 mm film guide strip for improved flatness

Product Dimensions with Packaging

• Length: 180 mm
• Width: 120 mm
• Height: 2 mm
• Weight: 44 g

Product Dimensions without Packaging

• Length: 80 mm
• Width: 60 mm
• Height: Not specified
• Weight: 26 g
