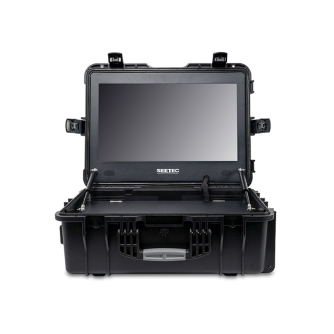

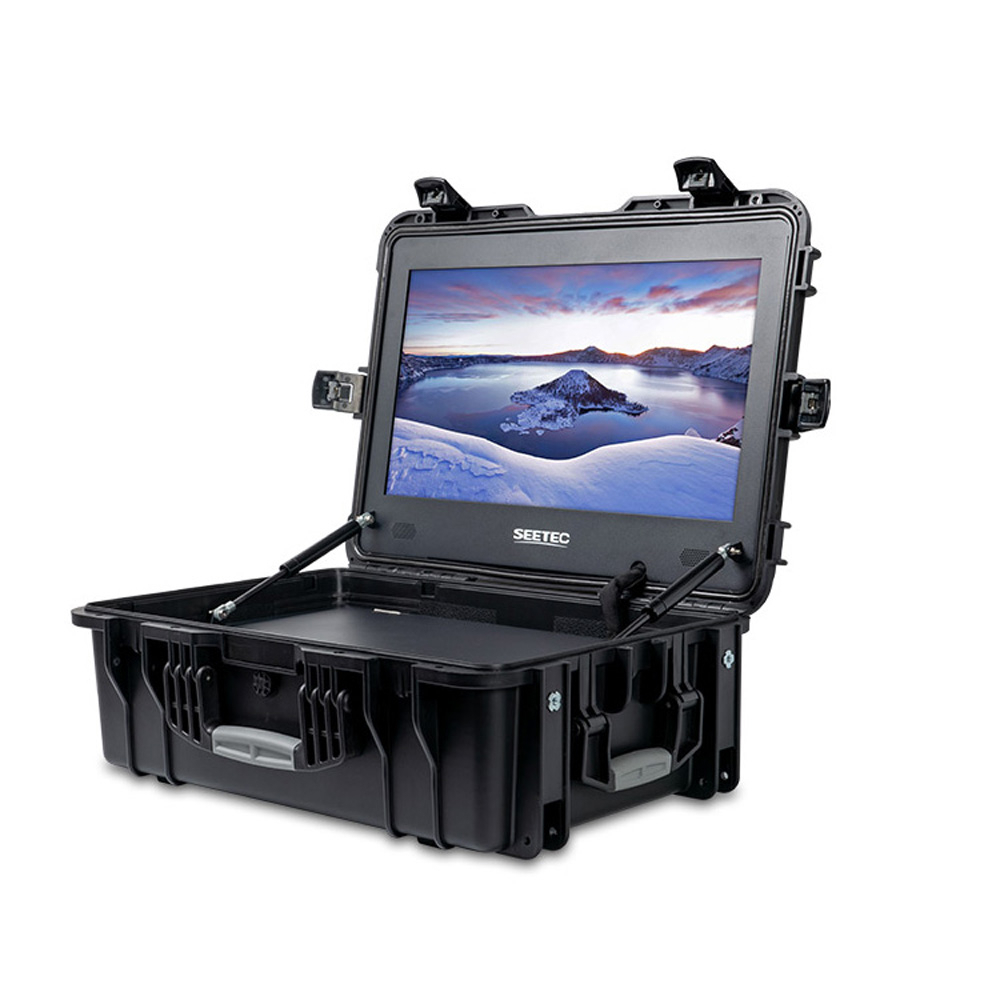

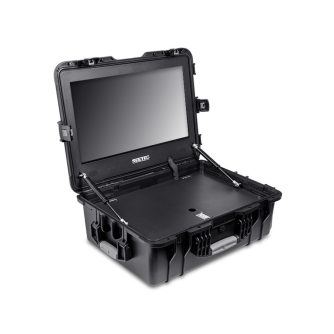

Feelworld SEETEC WPC156 Broadcast Monitor

Portable Take Home Director Monitor

The SEETEC WPC156 Broadcast Monitor is designed for filming in challenging environments, including near water sources, ensuring reliable performance under demanding conditions.

Highlights

• Full HD IPS Panel: 1920x1080 resolution with superior color accuracy and wide viewing angles.
• Precise Color Reproduction: 1000 nits brightness for excellent visibility in bright conditions.
• SDI and 4K HDMI Input/Output: Compatible with various cameras and allows multiple monitoring.
• Multiple Power Supply Options: 12V DC, XLR connector, and V-mount battery plates for versatility.
• Built-in Auxiliary Tools: Waveform, vector scope, histogram, and audio monitoring for technical accuracy.
• Waterproof Housing: Durable design with O-ring seal and pressure equalization valve.
• Ergonomic Design: Comfortable grip for easy transport and robust construction for outdoor use.
• Accessory Space: Designed for portability with additional space for accessories and mounting options.

Specifications

• 15.6 inch Full HD screen
• 1000 nits high brightness
• Custom 3D LUT support
• HDMI support up to 4K 30Hz
• Stereo earphone output
• 2-year warranty

Included Items

• 1 x SEETEC WPC156 Broadcast Monitor
• 1 x 4A Power Adapter
• 1 x Mini HDMI Cable
• 1 x SDI Cable
• 1 x V-mount Battery Plate
• 1 x User Guide

The portable take home director monitor
When you need to film in difficult environments or near water sources, the SEETEC WPC156 Broadcast Monitor offers a range of benefits that ensure reliable performance even in the most demanding conditions.


Highlights

Full HD IPS panel
Precise colour reproduction
SDI and 4K HDMI input and output

Full HD IPS panel
The SEETEC WPC156 Broadcast Monitor features a 1920x1080 Full HD IPS panel. The Full HD IPS panel ensures superior colour accuracy and consistency from wide viewing angles. This means that whether you sit directly in front of the monitor or next to it, colours remain vivid and true to life. The Full HD resolution ensures sharpness and clarity, rendering intricate details accurately. In addition, the IPS panel delivers excellent contrast levels of 1000:1, improving overall picture quality and depth.


Precise colour reproduction
Backed by a brightness of 1000 nits, the SEETEC WPC156 Broadcast Monitor is not afraid of a little sun. It counteracts glare and maintains excellent image quality even in well lit environments. Whether youre working on location shoots or in a studio with too little light, SEETEC WPC156 broadcast monitors high bright feature ensures optimum visibility and accurate colour reproduction, so you can make precise adjustments and deliver exceptional visual content.

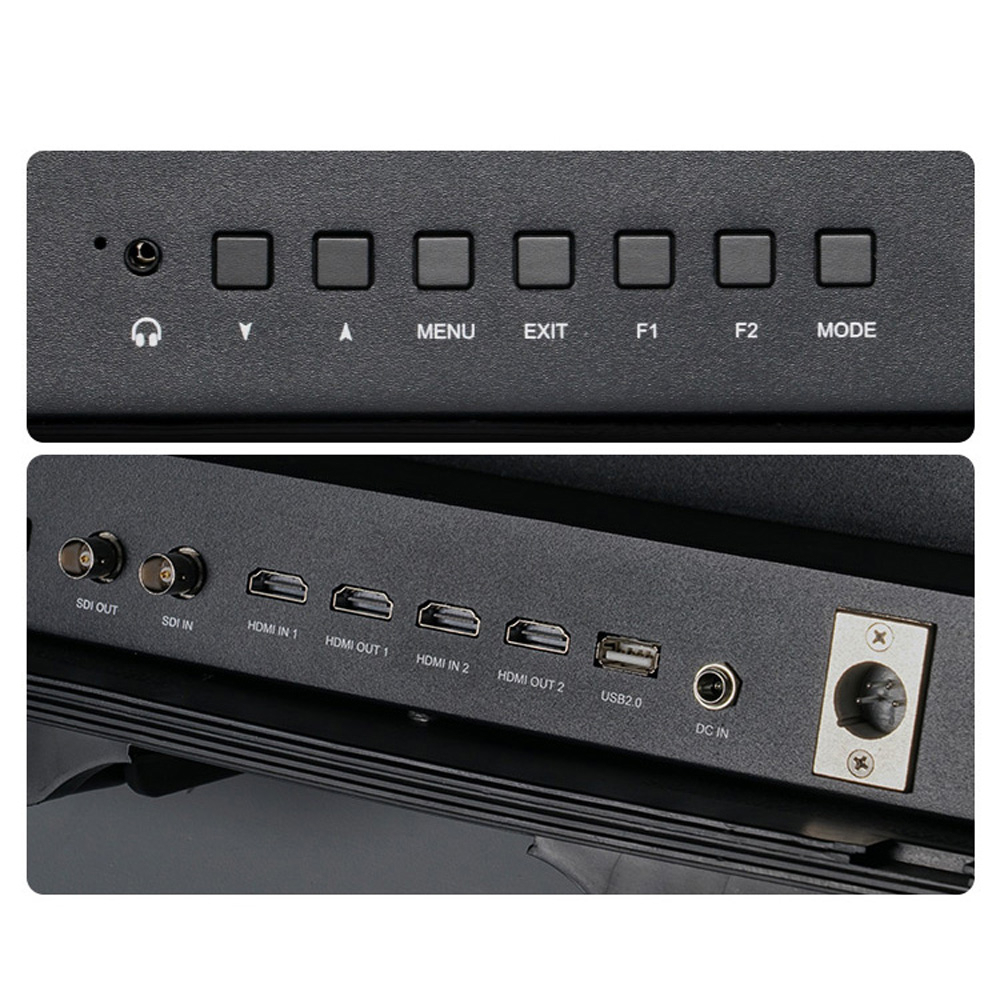

Switch easily with one button
The SEETEC WPC156 Broadcast Monitor is equipped with multiple control buttons, can switch between sources with one button, custom shortcuts, and quickly adjust brightness, contrast, volume, etc. Dedicated buttons and controls allow users to quickly access and adjust various monitor settings without having to navigate through complex menus.


SDI and 4K HDMI input and output
The SEETEC WPC156 are equipped with SDI and 4K HDMI input and output, compatible with film camera, DSLR camera, mirrorless camera. And loop out to another device via the output port, allowing multiple people to monitor at the same time. For audio, SEETEC WPC156 offers two speakers and a 3.5mm earphone jack.


Multiple power supply options
The SEETEC WPC156 offers a 12V dc power interface, XLR connector (can use a 4A power adapter) and 2 V mount battery plates as options. By offering multiple power supply options, the SEETEC WPC156 provides convenience, reliability and adaptability, allowing users to work efficiently and effectively in a wide range of production scenarios.


Built in auxiliary tools
The SEETEC WPC156 has built in professional auxiliary tools. You can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level monitoring, and get accurate waveform monitoring that shows everything you technically need to know about your video and audio signals. The functions can be accessed individually and also support one button to access all scope modes. Moreover, the SEETEC WPC156 supports uploading 32 customised LUTs.


Waterproof housing
The waterproof housing adds durability and robustness to the broadcast monitor, making it suitable for use in various environments. The box is equipped with an O ring seal and an automatic pressure equalisation valve. The O ring seal is carefully designed to form a waterproof barrier, preventing water or moisture from entering the box.


Ergonomic design
The waterproof handle has an ergonomic design and provides a comfortable grip for easy carrying and transportation. The sturdy construction ensures it can withstand the rigours of outdoor activities or demanding environments. The push and pull closures are designed for a tight seal.


Portable and space for accessories
The waterproof case is designed with portability in mind, so you can take your devices anywhere with ease. The left side of the waterproof case has space for accessories or other devices. And with a metal lid for protection. There are two 1/4 threads both on the right side and the top that can be installed with wireless video transmission or other equipment. Moreover, the bottom has a built in metal bracket so you can easily install the monitor on the tripod or light stand.,

15.6 inch 1920x1080 full HD large screen
Portable waterproof casing,
1000nits high brightness,
Flexible and intuitive button controls,
Custom 3D LUT,
With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc.
HDMI support up to 4K@30Hz
With multiple 1/4 thread, wireless transmission and other device can be set up.
The bottom of the housing has a built in metal bracket, which can be used to mount the monitor on the tripod.
Stereo earphone output
2 year warranty
,

1 x SEETEC WPC156 Broadcast Monitor
1 x 4A Power adapter
1 x Mini HDMI Cable
1 x SDI cable
1 x V mount Battery plate
1 x User guide
