Feelworld 6 CUT6 Recording monitor

Feelworld 6 CUT6 Recording monitor
The Feelworld 6 CUT6 Recording monitor is the first monitor released by FEELWORLD that integrates monitoring and recording, it can record 1080P30 HD video with LUT via USB2.0. Ideal for photographers of simple daily facts or creators of relaxing and entertaining content shared on social media.


1920x1080 Full HD display
Equipped with a 6 inch 1920x1080 high resolution, 8 bit colour depth touchscreen, the CUT6 offers excellent detail so you can enjoy a brighter, richer colour image and video.


USB2.0 Real time recording
The difference of CUT6 from ordinary monitors is the USB2.0 recording function, it records the video image up to 1080p30 from compatible cameras, in MP4 format via HDMI. Simply connect a USB flash disk (supports FAT32 format) and click the red record button to start recording. Recording time depends on the capacity of external storage media. For example, a 1 hour live broadcast takes up about 1860 million memory.


Recording with LUT effect, produce the video quickly
When the LUT function is enabled, the CUT6 can record video with LUT effect. For simple content, such as behind the scenes trivia, video production can be completed quickly and save time


New user interface + touchscreen, easier operation
With a full touchscreen user interface, the CUT6 offers incredible control, you can use simple tap and swipe gestures for key monitoring functions without buttons. New UI menu, take software functions are iconic and values at a glance. It is more convenient and faster to operate the function. You can also operate via the wheel button at the top of the monitor.

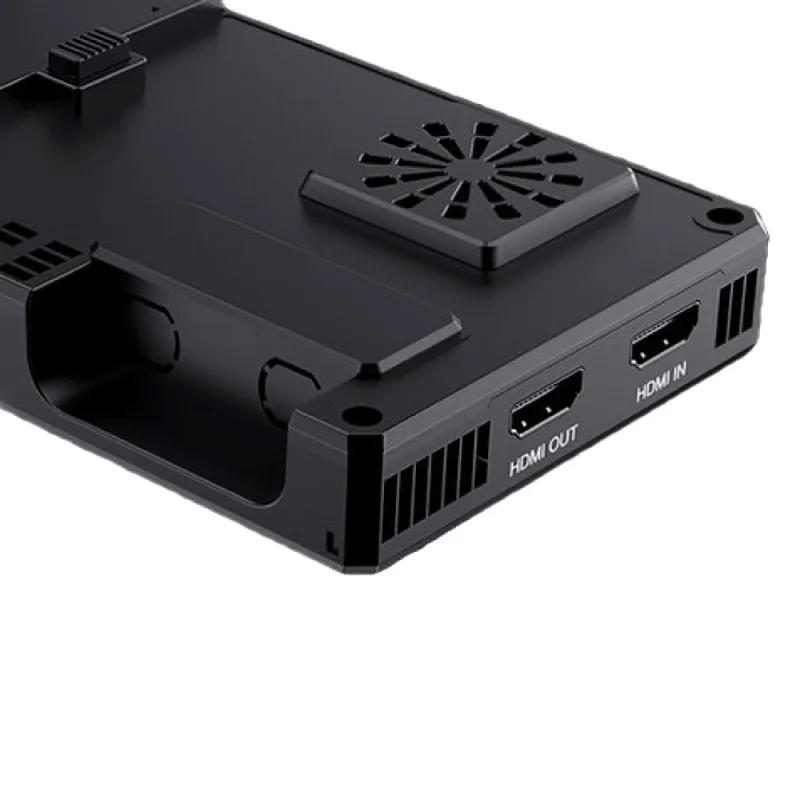

HDMI2.0 input + HDMI 1.4 output
CUT6 comes with HDMI 2.0 input, which supports a 4K 60Hz signal; HDMI output supports up to 1080p60. Compatible with DSLR camera, mirrorless camera, realise simultaneous monitoring by directors, photographers. For audio, CUT6 can record the following audio from HDMI and provides a 3.5mm headphone jack to monitor audio.
Note: Under the 1080i signal, there will be a missing pixel at the edge of the image. For example, the frame is missing when entering a panorama with frame, but this does not affect operation.,

Model: CUT6
Screen size: 6 IPS
Resolution: 1920x1080 pixels
Pixel Pitch: 0.069 (H) 0.069 (V) (mm)
Aspect Ratio: 16:9
Brightness:450cd/m
Contrast Ratio: 1000:1
Backlight:LED
Viewing angle: 80/80 (L/R) 80/80 (U/D)

Input

1 X HDMI 2.0
1 X SD card slot (LUT files and import firmware update files)

output

1 X HDMI HDMI 1.4
1 x USB 2.0 recording (supports USB flash disk in FAT32 format)
1 X DC: Loop output (5.5 mm outside, 2.1 mm inside) for powering cameras via a camera specific adapter.


Support format for USB recording: MP4 (1080P30)


HDMI input support format: SMPTE720p@50/60 | 1080i@50/60 | 1080p@24/30/50/60, VESA: 1024768@60 | 1280720@60 | 1280768@60 | 1280800@60 | 12801024@60 |1360768@60 |1366768@60 | 1440900@60 | 16001200@60 | 16801050@60 | 19201080@60 | 19201200@60 |38402160@60 | 40962160@60


HDMI output support format: SMPTE: 720p@50/60 | 1080p@24/25/30/50/60, VESA:1024768@60 | 1280720@50/60 | 1280768@60 | 12801024@60 |1360768@60 | 19201080@24/25/30/50/60
,

1 Monitor recorder
1 Micro HDMI cable
1 Mini Flash shoe mount
1 Manual
