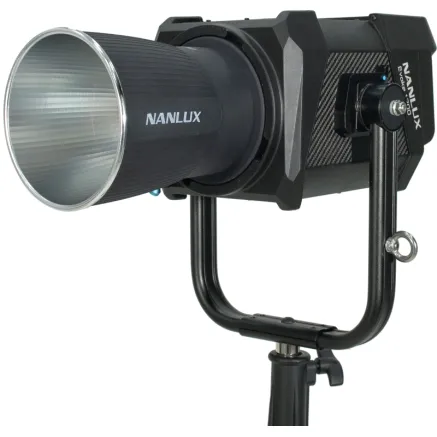

NANLUX Evoke 1200 LED Spot Light with Trolley Case (Evoke 1200 ST-KIT)

Introducing the EVOKE 1200

Revolutionary new 1.2kw daylight LED, directional light source

Created specifically for cinematography, live event, stills and broadcast applications, whether using it as a Fresnel, spot or softlight, the NANLUX Evoke 1200 is a revolution in illumination.

Technologically advanced and incredibly flexible, the Evoke 1200 out-performs almost any comparable luminaire, delivering stunning levels of flicker free, controllable 5600K light, comparable to an 1.8kW PAR or 2.5kW HMI Fresnel. Featuring an inter-changeable optic system, the Evoke 1200 can be used in a multitude of configurations, to satisfy almost any lighting requirement.

The NLM200 mount allows users to quickly switch between optics to sculpture, shape and modify the output with absolutely no compromise in beam quality.

THE NANLUX EVOKE 1200 - ALL THE LIGHT YOU NEED

• Product Size

  • Light fixture: 330×241×210mm (Without Yoke)

• Product Weight

  • Light fixture: 6.94kg
  • Yoke: 1.84kg
  • Power Supply: 10kg
  • Connecting cable 5m: 1.67kg
  • Power cable 4.5m: 0.36kg

In the box

• Evoke 1200 ×1
• Yoke ×1
• Power Supply ×1
• Reflector ×1
• Connecting cable 5m ×1
• Power cable 4.5m ×1
• USB Flash Drive ×1
• User manual ×1
• DMX Reference Guide ×1

NANLUX Evoke 1200 LED Spot Light with Trolley Case (Evoke 1200 ST-KIT)

The Evoke 1200 delivers stunning levels of flicker free, controllable light, comparable to that of a 1.8kW PAR or 2.5kW HMI Fresnel. The ingenious design of the COB delivers extremely powerful, natural looking light.

• Integrated Display to show all relevant data
• 11 built-in real lighting effects
• Customizable fan operation that’s quite and durable
• Sturdy aluminium structure
• Carrying Case, Perfect for Traveling & Storage

Fully controllable, the EVOKE 1200 supports both wired and wireless control via NANLINK APP, DMX/RDM, Bluetooth and Lumenradio TimoTwo. The highly accurate user interface, with its 0.1% precision allows for pin-point accuracy in both output and intensity.

The solid and functional design, robust construction and IP54 rating makes the Evoke 1200 ideal for use in almost any conditions.

In the Box
1× Evoke 1200 Spot Light
1× Yoke
1× Reflector
1× Power Supply
1× DC Connection Cable 7,5m
1× AC Power Cable 6m
1× Evoke Quick Release Clamp (AS-CP-QR-EV)
1× USB Flash Drive
1× Remote Controller (WS-RC-C2)
1× Trolley Case (CC-ST-EV1200)

Specifications

Light source

1200W COB LED

Color temperature

5600 Kelvin

Color rendering index

CRI: 96
TLCI: 97

Max. illuminance (lux)

with Reflector: at 3m 18.460
Light Only: at 3m 5.532

IP Rating

IP54

Rated power

1200 W

Input Voltage/Current

DC 48V /25A Max, AC 100-240V 50/60Hz

AC Power Cable

6 m

Product Size (without Yoke)

approx. 330 x 241 x 210mm (13.0 x 9.5 x 8.3)

Weight

Light Fixture: 6,94kg
Yoke: 1,84kg
Power Supply: 10,5kg
