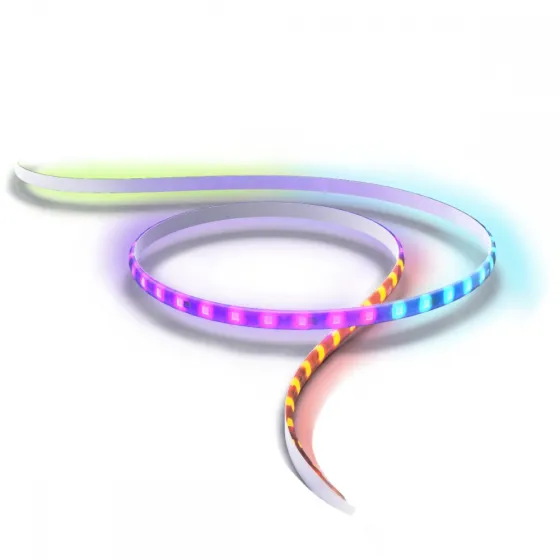

Amaran SM5c

• 20W Output 300 RGB Smart Pixel LED Strip Light
• Supports SidusPro® FX, Including Picker FX, Lighting FX, Manual FX, and Pixel Control
• Ultra High LED Density: 60 RGB LEDs per Meter
• 100 Pixels in 5 Meters for Creative Pixel Effects
• 21 Built In Pixel FX, 9 System FX
• Built In Microphone for Music Effects Visualization
• 3 Color Modes: CCT, HSI, Lighting FX
• High Quality Flexible Flat Cable For Easy Installation
• Strong Adhesive Attaches to Any Smooth Surface
• Frosted Diffusion Layer for Smoother Light and Reduced Glare
• Designed for Content Creators Livestreamers and Home Studios

The SM 5 c is amaran’s first ever RGB smart pixel LED strip light for creators Featuring intuitive pixel effects and Amazon Alexa Google Assistant integration, the amaran SM 5 c is the perfect accent light for instantly transforming at home setups or video studios with a wave of color and curating an environment for inspiring creativity and innovation.

With 300 RGB LEDs over 5 meters, the SM 5 c is a high density strip light that creates saturated colors and pixel effects Using its advanced circuitry, the SM 5 c smoothly transitions between its 100 pixels, while remaining flicker free at standard frame rates.

As the first amaran light to feature both Bluetooth and Wi Fi connectivity, the SM 5 c can be controlled via smart speakers, including Amazon Alexa and Google Assistant, for hands free lighting control For total customization, creators can use the Sidus Link mobile app to unlock the full suite of smart light
features, including various color modes, 21 Pixel FX, and Pixel Control of up to 25 light segments.

Featuring a built in microphone, the SM 5 c can also act as a real time audio visualizer by synchronizing its 100 pixels to any audio track.

For illuminating larger spaces, the strip light can be extended by an additional 5 meters 16 4 ft) with the amaran SM 5 c Extension By producing one continuous light effect over 10 meters 32 8 ft), the Extension creates a truly expansive environment.

The SM 5 c’s frosted diffusion and simple installation process produces a soft glow, whether mounted along ceilings and walls or behind bookshelves, cabinets, and tables.

Delivery Content
• amaran SM5c Strip Light (5m)
• AC Power Supply
• LED Controller
• Double Sided Tape1
• Cleaning Kit

Specifications

CCT

3,200K - 6,500K

Max Power Input

20W

Max Operating Current

1.7A

Operating Voltage

12V

Supply Voltage

110V ~ 240V

Operating Temperature

- 10 C ~ 40 C / 14 F ~ 104 F

Pixel Mapping

100 Pixels

Wireless Control Methods

Sidus Link App, Amazon, Alexa, Google Assistant

Wireless Operating Range (Bluetooth)

≤80m

Wireless Operating Range (Wi Fi)

≤60m

Firmware Upgradeable

Sidus Link

Cooling Method

Passive Cooling

Controller Dimensions

4.8 x 9.7 x 2.8cm

Length

Strip Length 5m
DC Power Cable 2m
Controller Cable 2m

Weight

Controller 137g / 0.30lbs
DC Power Supply 157g / 0.35lbs
