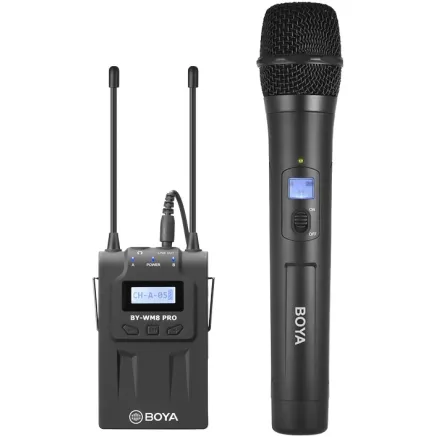

Boya microphone BY-WM8 Pro-K3 Kit UHF Wireless BY-WM8 Pro-K3

The Boya BY-WM8 Pro is a UHF Dual-Channel wireless microphone system and can be used to capture audio for live sound, ENG, broadcast and film, talk shows, conferences and more.

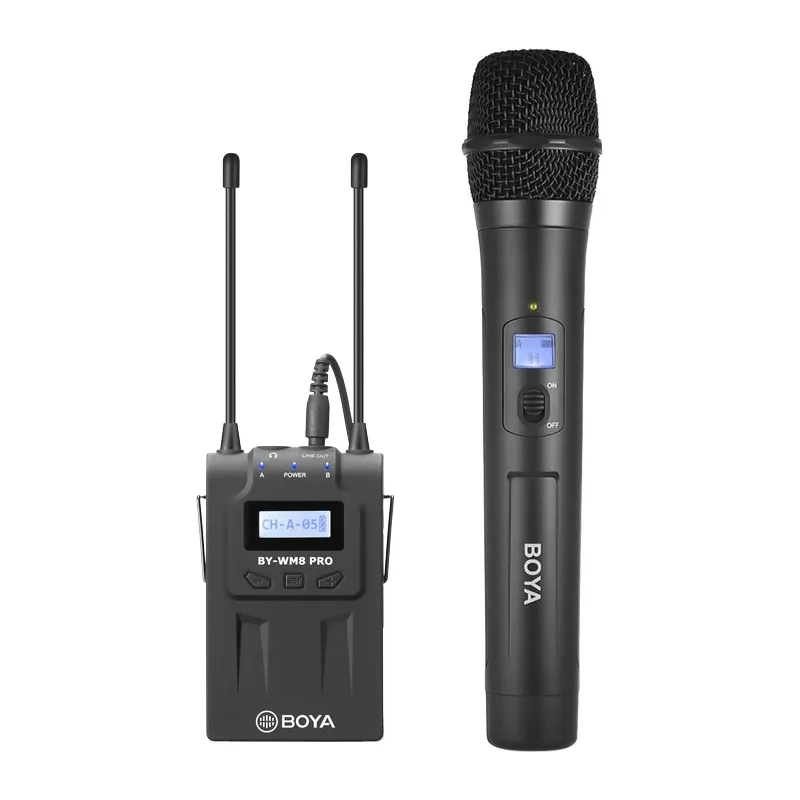

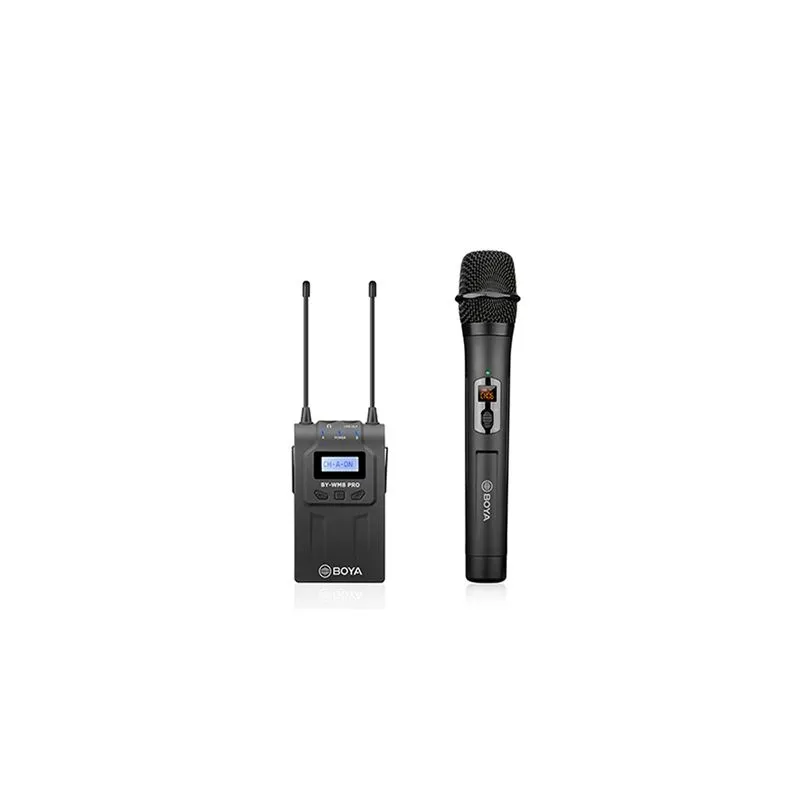

The BY-WM8 Pro-K1 system consists of a bodypack receiver and a handheld microphone transmitter. The kit has a working range of up to 100 meters.

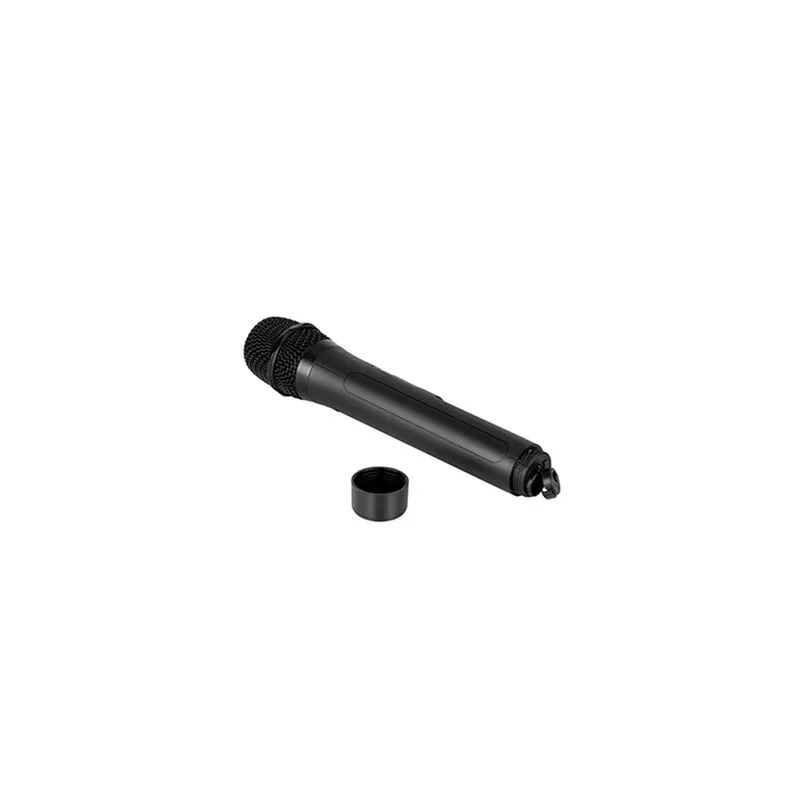

The Boya BY-WHM8 Pro is a Wireless handheld transmitter with a dynamic, cardioid capsule. The Boya RX8 Pro is a compact and rugged beltpack audio receiver. With two channels design, it can work with two transmitters simultaneously. Adjustable volume and two-mode (MONO, Stereo), it can be used in various environments for audio applications such as live stage, theater, houses of worship, and more.

• 48 selectable channels
• Ideal for interviews, broadcast, EFP, and ENG applications
• Operation range can reach up to 100m
• Cardioid Microphone Transmitter
• A or B channel group for selection
• OLED Display
• User-friendly menu for simple operation
• A 3.5mm headphone jack for real-time monitoring
• Includes shoe mount

The Boya UHF Duo Lavalier Microphone Wireless BY-WM8 Pro-K3 consists of the BY-WM8 wireless microphone and the BY-WM8 Pro receiver. The BY-WM8 is a high-quality wireless microphone system. The BY-WM8 Pro lets you capture clear speech for projects such as YouTube vlogs, presentations, lectures, wedding videos and interviews. This package is also perfect for mobile journalists, presenters, content creators and vloggers.

You can connect the BY-WM8 Pro wireless microphone and BY-WM8 Pro receiver to your DSLR camera with 3.5mm TRS jack. It is also possible to connect the BY-WM8 Pro to professional cameras with XLR connection. Because you can operate on two channels with the receiver, you can expand the system with an additional transmitter or microphone. This allows you to conduct interviews with two people without the need for an additional receiver. Unwanted ambient noise is minimized thanks to the cardioid directivity. This makes it ideal in loud environments such as exhibition floors, busy public areas and sporting events.

Application Boya UHF Duo Lavalier Microphone Wireless BY-WM8 Pro-K3

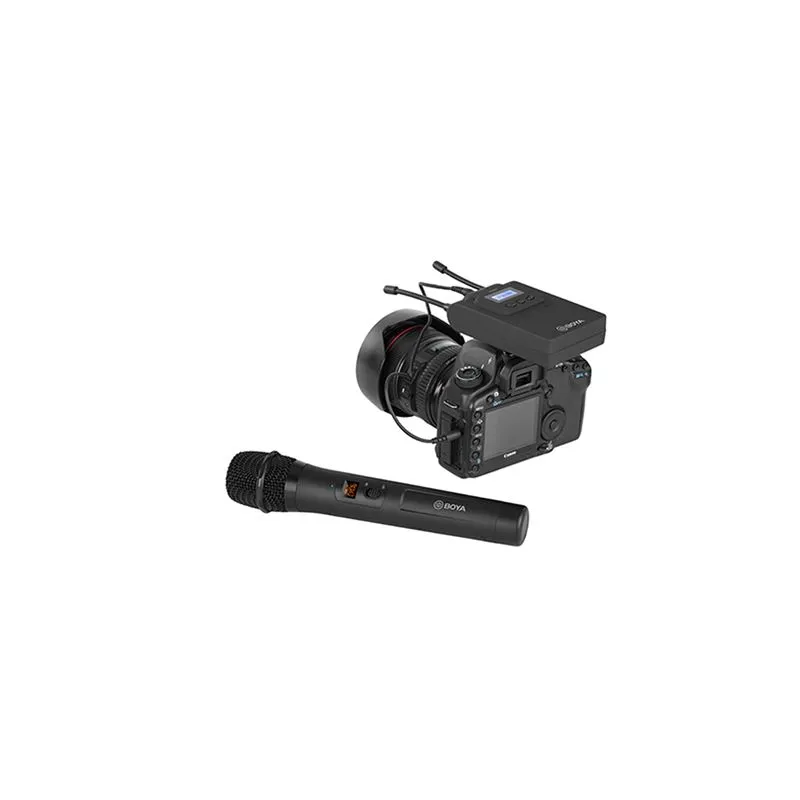

The Pro-K3 is easy to use. The interviewee wears the wireless microphone. From the receiver, a cable goes to the video camera or other recorder. It is possible to attach the receiver to your camera using the included hotshoe adapter. The receiver has a ¼".female thread, so the receiver can also be attached to a tripod. There is also a headphone output on the receiver so you can listen to the recorded audio in real time.

Specifications System:
- Channels: 48
- Frequency response: 40Hz-18kHz (+/-3dB)
- Max. range: up to 100 meters (without obstacles)
- Operating temperature: -10 to 50 degrees Celsius

Specifications Transmitter:
- RF output level: 10 mW
- Audio input connector: 3.5mm jack plug
- Reference audio input level: -60dBv
- Input frequency range: 20Hz-20KHz
- Distortion: 0.5% or less
- Power supply: 2x AA battery (not included)
- Max. continuous usage time: 6 hours
- Dimensions (H x W x L): 208x67x29 mm
- Weight (without batteries): 81 grams

Receiver Specifications:
- Audio output connector: 3.5mm jack plug
- Signal-to-noise ratio: 80 dB or more
- Distortion: 0.5% or less
- Headphone output level: 30 mW
- Audio output level: -60 dBv
- Power supply: 2x AA battery (not included)
- Max. consecutive usage time: 4 hours
- Dimensions (H x W x L): 208x67x29 mm
- Weight (without batteries): 95 grams

Specifications Lavalier Microphone:
- Transducer: Condenser Microphone
- Directivity: Omnidirectional
- Frequency range: 35Hz-18 KHz
- Signal-to-Noise Ratio: 74dB SPL
- Sensitivity: -30dB +/- 3dB / 0 dB = 1V / Pa, 1 kHz)
- Connector: 3.5mm locking mini plug
- Length: 1.2 m
