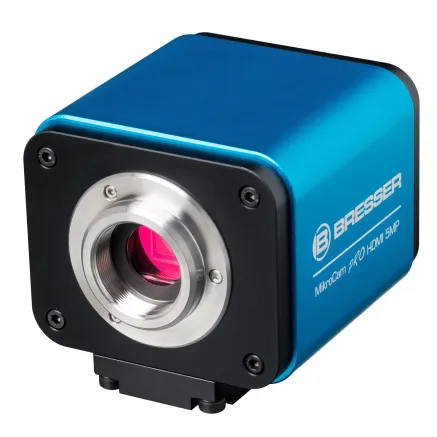

Bresser MikroCam PRO HDMI camera 5MP

The BRESSER MikroCam Pro HDMI delivers excellent image quality with ease of use . The microscopic image is transferred in Full HD resolution and without delay to a HDMI monitor or TV screen. An optional 11'' HDMI screen is available under item code 5914110 and can be mounted on the camera directly. It gives brilliant images with high contrast.

Microscope images and video can now be stored on a SD card with high resolution (up to 5 MP). The Sony Sensor gives excellent image quality .

The camera can be controlled with the included USB mouse directly through the on screen display. The on screen functionality now includes a measuring function as well, so the MikroCam Pro HDMI 5MP upgrades your existing trinokular microscope to a fully equipped digital measuring microscope .

With the WiFi module, the camera can also supply the images in a wireless network . Due to this, a permanent connection to a PC via USB is not provided. But the professional software MikroCamLabII is still included with the camera for further image analysis after transferring the stored on SD card.

Software included in the following languages (for further image analysis - no direct PC connection via USB provided)

• English
• German
• French
• Polish
• Russian
• Turkish
• Indonesian
• Japanese
• Chinese (simplified)
• Chinesisch (traditional)

The software includes numerous functions for image processing

• measurement function * (with live image): distance, angle, surface area (polygon, circle, ellipsoid)
• Image Stacking from video files
• HDR (high dynamic range)
• fluorescence microscopy: fluorophore data for common dyes can be found in the software
• Batch save

*for the use of the included measurement functionality a object micrometer slide is necessary, e.g. BRESSER item no. 5916720 (1/10mm and 1/100mm) or 5916710 (1/100mm).

FEATURES

• HDMI-connection on a monitor or TV
• brilliant full HD images via HDMI (60 frames / sec) or WiFi (up to 25 frames / sec)
• measure specimens via on screen display - no PC necessary
• WDR (wide dynamic range) function included

SYSTEM REQUIREMENTS

• Windows 8.1, 10 or 11
• Intel i3, i5, i7 or i9 CPU from the 6nd generation or
• AMD Ryzen CPU
• Optical Disk Drive or internet connection for software download
• USB 2.0

SCOPE OF DELIVERY

• MikroCam Pro HDMI with C-Mount
• AC adapter
• Mouse
• HDMI cable
• WiFi dongle
• Software (CD-ROM)
