KOWA EYEPIECE 25X LER FOR TSN-600/660/82SV

TE-17HD:

• Magnification: 25x Ler (TSN-600/660), 27x Ler (TSN-82SV)
• Real field of view: 2,1° (TSN-600/660), 2,0° (TSN-82SV)

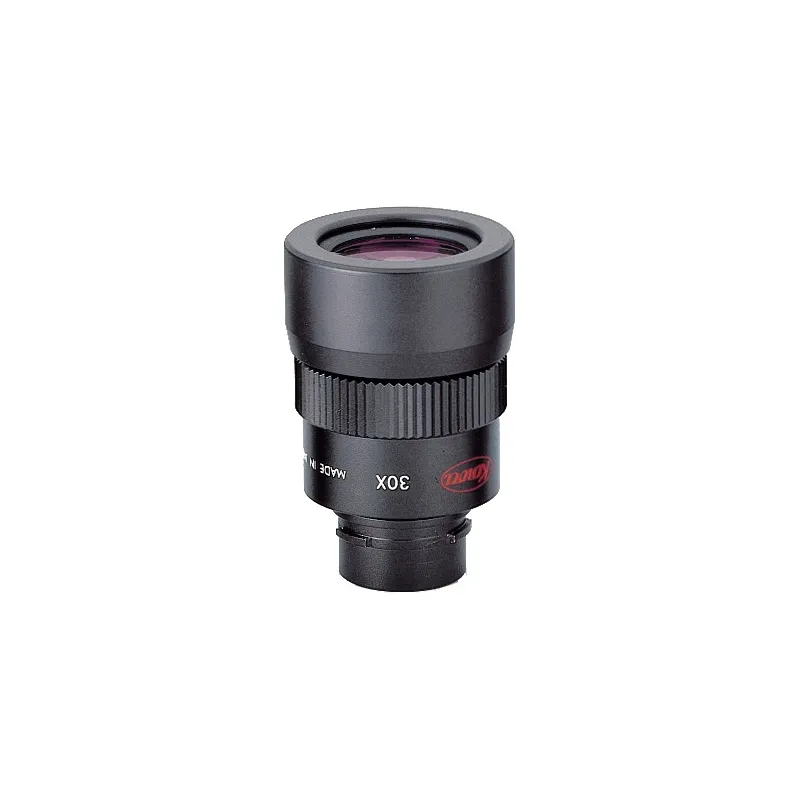

TE-14WD:

• Magnification: 30x Wide (TSN-600/660), 32x Wide (TSN-82SV)
• Real field of view: 2,4° (TSN-600/660), 2,2° (TSN-82SV)

TE-9Z:

• Magnification: 20-60x (TSN-600/660), 21-63x (TSN-82SV)
• Real field of view: 1,9-1,0° (TSN-600/660), 1,8-0,95° (TSN-82SV)

The Kowa Long Eye Relief Eyepiece 25x TSE-17HD is an eyepiece with a long eye relief of no less than 32 mm instead of 16 mm with the standard TSE-Z9B 20-60x eyepiece. This Long Eye Relief eyepiece has a fixed 25x magnification and a wide 2.1° angle of view that gives 36.7 metres of vision at a distance of 1000 metres. The TSE-17HD is suitable for the Kowa Spotting Scopes from the following series:

• Kowa TSN-660M series
• Kowa TSN-82SV
• Kowa TSN-600 series

This eyepiece also fits the following historical spotting scopes:

TSN-603/604, TSN-661/662/663/664, TSN-1/2/3/4,
TS-601/602, TS-611/612/613/614 and
TSN-820/820M (requires TSN-EC1A adapter ring)

Belangrijke kenmerken Kowa Long Eye Relief Eyepiece 25x TSE-17HD:

• Lens elements
  The eyepiece has an arge eye relief distance
• Waterdproof
  The eyepiece is waterproof when mounted.
