Canare 3G/HD-SDI on reel with cable holder 100 m CV-5W-M/M-BLK-100-38R

Produkta kods: 7508
SKU: 7508
Модель: CV-5W-M/M-BLK-100-38R
Ean: 0000000000000
Manufacturer: Canare

Состояние New product

Goods are not available at the moment

We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

MasterFoto.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

629.45
Leasing calculator
Leasing calculator
Leasing period
3
6
12
24
36
Leasing monthly payment, €
no
AI assistant
Artificial Intelligence assistant
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

или спросите

Какие функции? Есть в наличии? Акции и скидки?
Discover related products
Discover related products

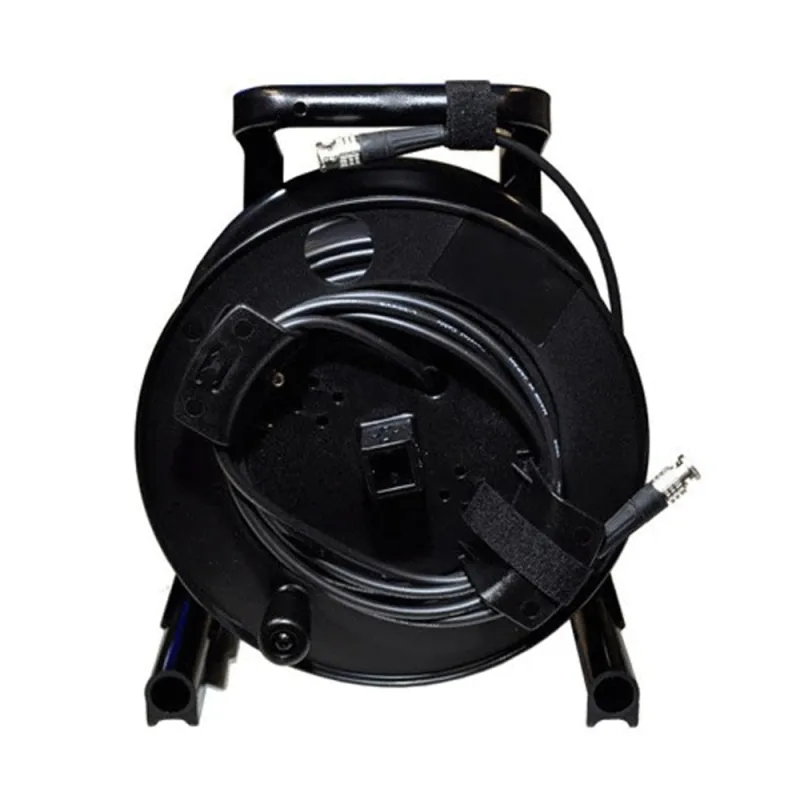

Canare L-5CFW BNC (M-male) / BNC (M-male) is a flexible and durable 3G/HD/SD-SDI 75 ohm coaxial cable with 7.7 mm outer diameter with BNC (M) terminations wound on a SCHILL reel. The cable is wound on a Schill GT 380.RM reel. The total cable length is given including connectors.

Its high flexibility makes it ideal for mobile HD use with excellent resistance to repeated bending. The cable features a braided medium conductor and a high-density High-density double shield with thick foam insulation.

Maximum transmission distance depending on video format

Distance in (m)535m483m384m333m267m103m105m
Transmission speed143 Mbps177 Mbps270 Mbps360 Mbps540 Mbps1.5 Gbps3.0 Gbps
SpecificationsSMPTE 259MITU-R BT.601SMPTE 259MSMPTE 259MSMPTE 344MSMPTE ST-292SMPTE ST-424
Use NTSC compositePAL composite525/625 (4:3)525/625 (16:9)525/625 (4:3) p60 SDIHD-SDI 1080iHD-SDI 1080p

L-5CFW Cable Specifications:

  • Standard manufactured lengths: 100/200 m
  • Sheath diameter (overall diameter) in mm: 7.7
  • Cable weight in kg/100 m: 8.1
  • Medium conductor - number and diameter of cores in mm: 1/1.05
  • Total diameter of the middle conductor in mm: 1.05
  • Foam dielectric - diameter in mm: 5,00
  • Resistance of the middle conductor in /100 m: 2.3
  • Resistance of outer conductor in /100m: 0.5
  • Temperature range: -30 C ~ +60 C
  • Static capacitance in pF/m: 55
  • Attenuation in dB/100m: 19.4
Вид продуктаПровода, кабели видео
LCD МониторыHDMI adapter
СоединенияBNC to BNC
