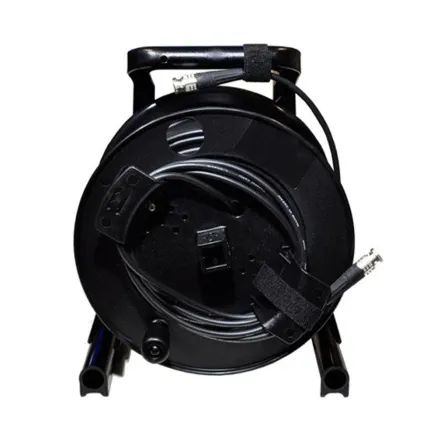

Canare 3G/HD-SDI on reel with cable holder 100 m CV-5W-M/M-BLK-100-38R
Condition: New product
Goods are not available at the moment
We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.
MasterFoto.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.
Or ask about:
Canare L-5CFW BNC (M-male) / BNC (M-male) is a flexible and durable 3G/HD/SD-SDI 75 ohm coaxial cable with 7.7 mm outer diameter with BNC (M) terminations wound on a SCHILL reel. The cable is wound on a Schill GT 380.RM reel. The total cable length is given including connectors.
Its high flexibility makes it ideal for mobile HD use with excellent resistance to repeated bending. The cable features a braided medium conductor and a high-density High-density double shield with thick foam insulation.
Maximum transmission distance depending on video format
| Distance in (m) | 535m | 483m | 384m | 333m | 267m | 103m | 105m |
| Transmission speed | 143 Mbps | 177 Mbps | 270 Mbps | 360 Mbps | 540 Mbps | 1.5 Gbps | 3.0 Gbps |
| Specifications | SMPTE 259M | ITU-R BT.601 | SMPTE 259M | SMPTE 259M | SMPTE 344M | SMPTE ST-292 | SMPTE ST-424 |
| Use | NTSC composite | PAL composite | 525/625 (4:3) | 525/625 (16:9) | 525/625 (4:3) p60 SDI | HD-SDI 1080i | HD-SDI 1080p |
L-5CFW Cable Specifications:
- Standard manufactured lengths: 100/200 m
- Sheath diameter (overall diameter) in mm: 7.7
- Cable weight in kg/100 m: 8.1
- Medium conductor - number and diameter of cores in mm: 1/1.05
- Total diameter of the middle conductor in mm: 1.05
- Foam dielectric - diameter in mm: 5,00
- Resistance of the middle conductor in /100 m: 2.3
- Resistance of outer conductor in /100m: 0.5
- Temperature range: -30 C ~ +60 C
- Static capacitance in pF/m: 55
- Attenuation in dB/100m: 19.4
| Type of Product | Wires, cables for video |
| LCD monitors | HDMI adapter |
| Connections | BNC to BNC |
