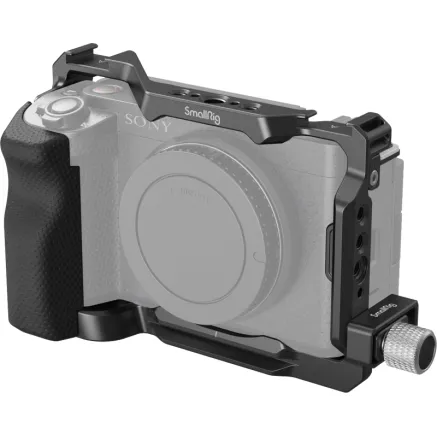

SmallRig 4257 Cage Kit for Sony ZV E1

Smallrig 4257 Cage Kit for Sony ZV-E1

The cage secures the camera via one 1/4"-20 screw on the bottom and one side lock adapter on both sides, with an ergonomic silicone handle offering a comfortable grip.

The HDMI cable clamp attaches to the left side of ZV-E1 using a 1/4"-20 thumb screw and two anti-twist pins to protect the HDMI port and ensure stable transmission.

There are multiple mounting points for accessories;
including 1/4"-20 threaded holes and ARRI 3/8"-16 locating holes for SmallRig Top Handle 3765, Side Handle 2913, one top ARRI 3/8"-16 locating hole for SmallRig Monitor Mount 2903, two cold shoe mounts for the microphone, LED video light, and a bottom QD socket for shoulder strap.

The Arca-Swiss quick-release plate on the bottom supports DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro stabilizers, DJI RS 2 / RSC 2 stabilizer quick-release plate (height increase pad), and SmallRig Arca-Type Quick Release Plate 3154.

This item also features strap holes on both sides and the bottom, which are compatible with SmallRig Hand Strap 2456, Shoulder Strap 2428, etc.

Besides, a magnetic wrench is included for easy disassembly and assembly.

Compatibility:
Sony ZV-E1

Package includes:
1x Cage with Silicone Grip
1x HDMI Cable Clamp
1x Allen Wrench

SmallRig 4257 Cage Kit for Sony ZV E1
The SmallRig 4257 Cage Kit for Sony ZV E1 is specially designed to attach accessories and protect the camera and HDMI port.


It includes a cage with a silicone handle and an HDMI cable clamp. The cage mounts the camera via a 1/4 20 screw on the bottom and a side lock adapter on both sides, with an ergonomic silicone handle for a comfortable grip.


The HDMI cable clamp attaches to the left side of the ZV E1 with a 1/4 20 thumbscrew and two anti twist pins to protect the HDMI port and ensure stable transmission.
There are several attachment points for accessories, including 1/4 20 threaded holes and ARRI 3/8 16 mounting holes for Top Handle 3765, Side Handle 2913, an ARRI 3/8 16 mounting hole for Monitor Mount 2903B, two cold shoe mounts for the microphone, LED video light and a QD connector at the bottom for a shoulder strap.


The Arca Swiss quick release plate at the bottom supports DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro stabilisers, DJI RS 2 / RSC 2 stabiliser quick release plate (height elevation pad), and Arca Type Quick Release Plate 3154. It also has belt holes on both sides and the bottom, which are compatible with the Hand Strap PAC2456 and Shoulder Strap PSC2428, among others. ,

All in one full cage protects the camera
Locks camera via one 1/4 20 screw and two side lock adapters
The HDMI cable clamp protects the port for stable transmission
Built in ergonomic silicon handle for a comfortable grip
Arca Swiss quick release plate for quick switch to tripod or stabilizer (DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro) mode
Dimensions: 159.5 x 89.8 x 65.5mm
Material(s): Aluminum Alloy, Stainless Steel, Silicone
2 year warranty
,

1x Cage with Silicone Grip
1x HDMI Cable Clamp
1x Allen Wrench
