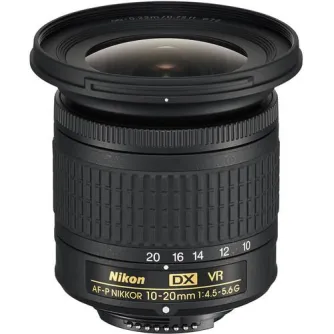

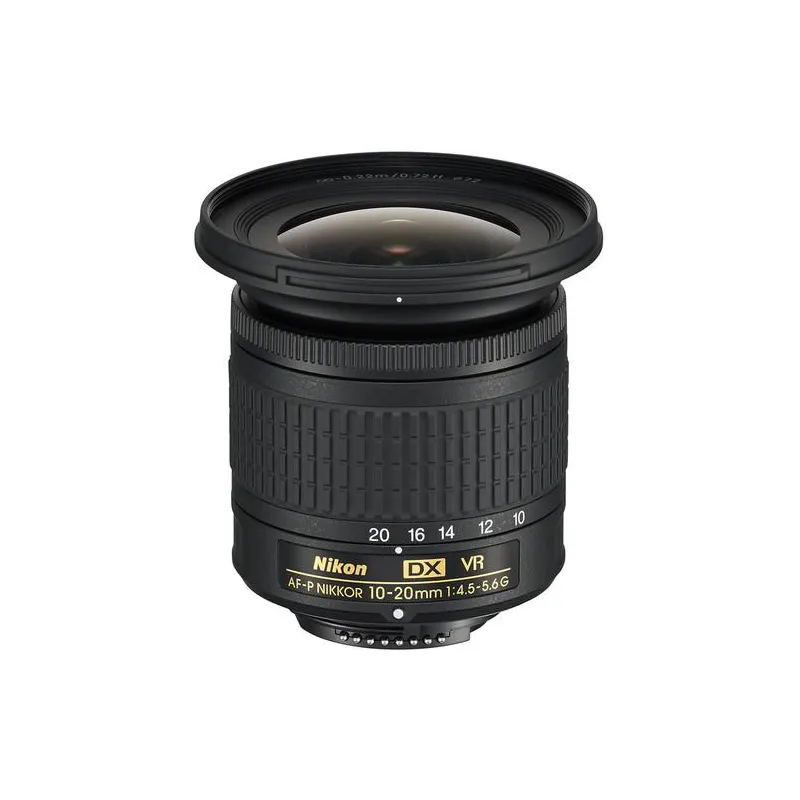

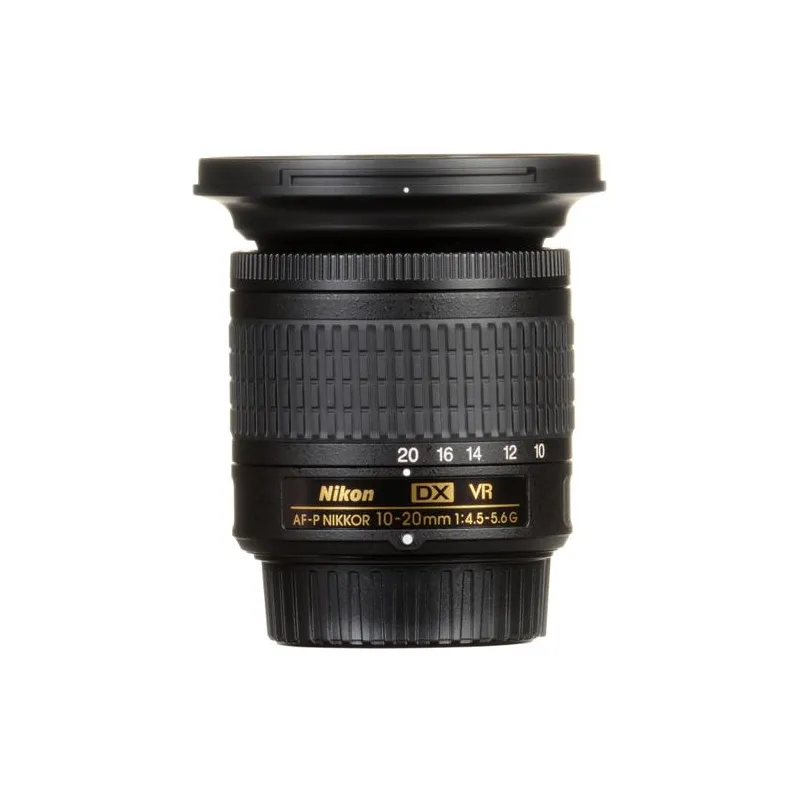

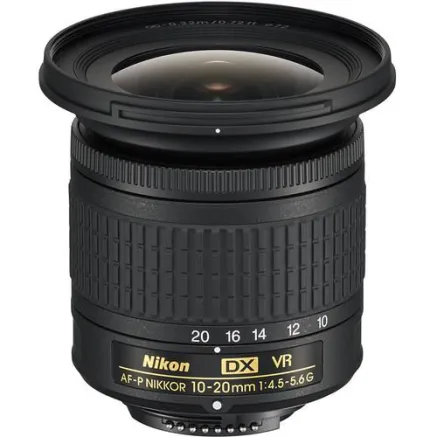

Nikon AF-P DX NIKKOR 10-20mm f 4.5-5.6G VR

Key Features

• F-Mount Lens/DX Format
• Aperture Range: f/4.5 to f/29
• Three Aspherical Elements
• Super Integrated Coating
• Pulse Stepping Motor AF System
• VR Image Stabilization
• Rounded 7-Blade Diaphragm

A versatile wide-angle zoom for Nikon DX-format DSLRs, the AF-P DX NIKKOR 10-20mm f/4.5-5.6G VR is a 15-30mm-equivalent lens well-suited to landscapes, cityscapes, architecture, and interior shooting. Despite its wide field of view, Vibration Reduction (VR) image stabilization is featured to help minimize the appearance of camera shake for sharper handheld shooting. The lens also features a pulse stepping motor AF system, which benefits both video and photo applications due to its fast, quiet, and smooth focusing performance. In regard to its optical design, three aspherical elements are used to control spherical aberrations and distortion throughout the zoom range for improved sharpness and clarity. Additionally, a Super Integrated Coating has been applied to control lens flare and ghosting when working in strong lighting conditions.

Wide-angle zoom is designed for DX-format Nikon F-mount DSLRs, where it provides a 15-30mm equivalent focal length range.
Three aspherical elements are used in the optical design to control spherical aberrations and distortion for notable sharpness and clarity throughout the zoom range.

A Super Integrated Coating has been applied to individual elements to suppress internal reflections, flare, and ghosting for improved contrast and color accuracy when working in strong lighting conditions.

Vibration Reduction image stabilization compensates for camera shake in order to deliver sharper handheld images.
AF-P pulse motor uses stepping motors to deliver impressively smooth, quiet, and fast autofocus performance that is well-suited to both stills and video applications. Full-time manual focus override is also possible and an internal focusing design is used, where only the internal lens groups are moved during focusing, to maintain the overall length of the lens during use and to promote faster focusing speeds.

Compatible Cameras

• Full Compatibility: D500, D7500, D5600, D5500, D3500, D3400, D850 (in DX mode), and Z-series mirrorless cameras with FTZ adapter
• Compatible with Limited Functions: D7200, D7100, D5300, D5200, and D3300; D810A, D810, D800E, D800, D750, D610, D600, D5, and Df in DX mode; and 1-series mirrorless cameras with FT1 adapter
• Compatible cameras may require a firmware update for use

Specification:

• Focal Length    10 to 20mm (35mm Equivalent Focal Length: 15 to 30mm)
• Maximum Aperture    f/4.5 to 5.6
• Minimum Aperture    f/29
• Lens Mount    Nikon F
• Format Compatibility    APS-C
• Angle of View    109° to 70°
• Minimum Focus Distance    8.66" / 22 cm
• Maximum Magnification    0.17x
• Optical Design    14 Elements in 11 Groups
• Diaphragm Blades    7, Rounded
• Focus Type    Autofocus
• Image Stabilization    Yes
• Filter Size    72 mm (Front)
• Dimensions (ø x L)    3.03 x 2.87" / 77 x 73 mm
• Weight    8.11 oz / 230 g
