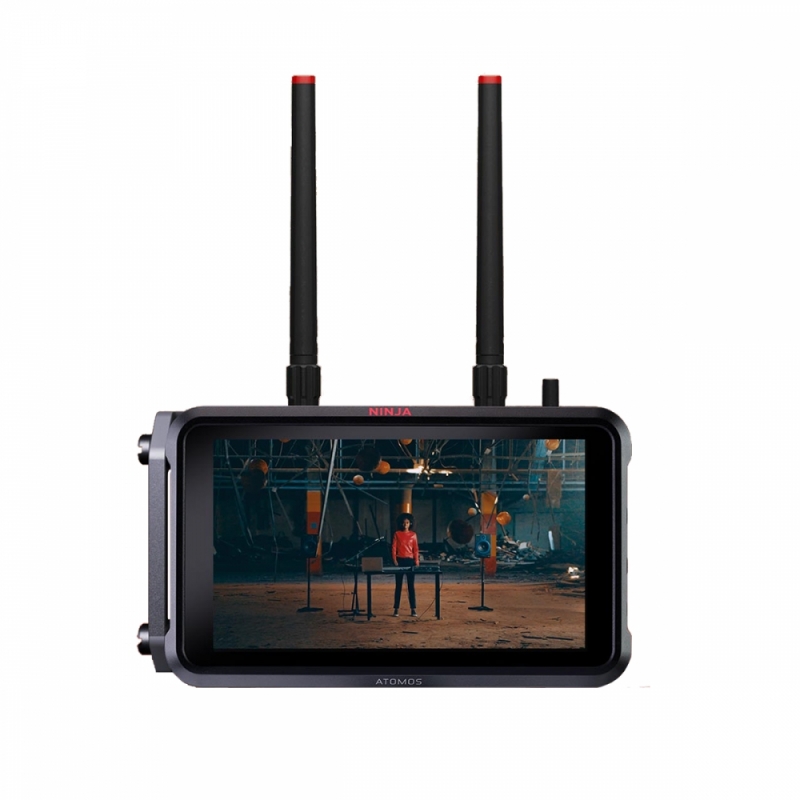

ATOMOS CONNECT, the ultimate accessory for NINJA V / V+ with a connection to the world.

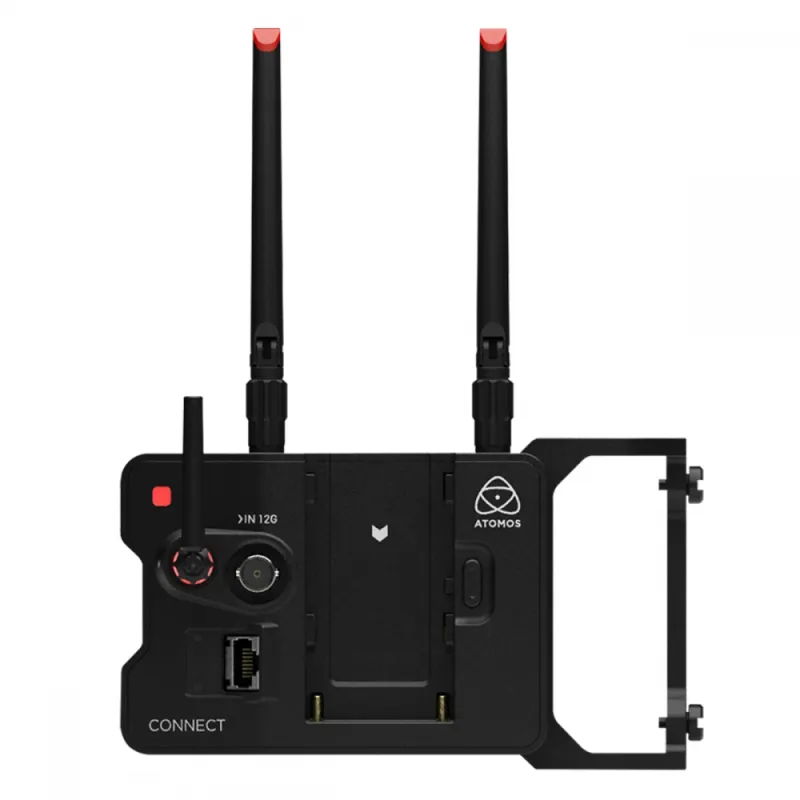

ATOMOS CONNECT is the ultimate accessory for the NINJA V/V+ and represents a profound shift in the way we conceive of devices for monitoring and recording. The ATOMOS CONNECT fits to the back of the NINJA V/V+ and features a 12G SDI input, ATOMOS AirGlu™ for wireless timecode synchronization, multiple power options to accommodate a variety of on-set scenarios, plus Wi-Fi 6, Gigabit Ethernet, and Bluetooth LE capabilities for flexible connections. When attached to the NINJA V/ V+, the ATOMOS CONNECT transforms professional cinema, mirrorless, and DSLR cameras into fully connected devices that support a range of advanced cloud-based workflows.

Stream from Anywhere
With the ATOMOS CONNECT accessory the NINJA V/V+ can livestream to a range of online services including, Facebook Live, Twitch, and YouTube. With Wi-Fi 6, Gigabit Ethernet, the ability to join cellular hotspots all built-in, the ATOMOS CONNECT helps filmmakers, streamers and video content producers reach their audience from anywhere.

Collaboration for Everyone
ATOMOS CONNECT is fully integrated as a Frame.io Camera to Cloud (C2C) device. Through support of HDMI and SDI equipped cameras, the device offers advanced online workflows and remote collaboration to many more filmmakers, streamers, and video content creators. With Frame.io for Adobe Creative Cloud now part of the Creative Cloud subscription, even more filmmakers will have access to cloud-based workflows.

Dual Record
Frame.io C2C brings the domains of production and post closer together, enabling new ways for remote teams to collaborate. The dual record feature of the ATOMOS CONNECT for NINJA V/V+ creates “hero” Apple ProRes, Avid DNxHR/HD (or Apple ProRes RAW on the NINJA V+) and “proxy” HEVC (H.265) files with matching timecode and metadata. Proxy files can also be uploaded during capture using ATOMOS progressive transfer technology so that the proxy clip is available in the cloud as soon as recording stops.

Bring Your Own Camera
The built-in SDI and HDMI interfaces allow the ATOMOS CONNECT to support a comprehensive range of professional cinema, DSLR and mirrorless cameras. The device also features ATOMOS AirGlu™ wireless sync technology which enables direct, long-range communication between devices and provides a robust timecode lock.

CONNECT to the World
ATOMOS CONNECT enables filmmakers, streamers, and video content producers of every kind to share their work with an audience from anywhere, easily, and seamlessly. ATOMOS CONNECT allows customers the freedom to work with the camera of their choosing and a choice of connection. Then regardless of the camera customers can create a unified system that supports synchronised timecode lock across all linked devices.

ATOMOS Cloud Studio
ATOMOS Cloud Studio is a collection of video production services, developed in partnership with MAVIS, which represents a radical innovation for all video creators, streamers, and filmmakers. Cloud Studio will launch in June 2022 with two new cloud-based live video production services for sharing and real-time collaboration. ATOMOS Capture to Cloud uploads files from ATOMOS network connected devices to cloud-based platforms, including Frame.io (an Adobe Company). ATOMOS Stream uses any ATOMOS network enabled device to live stream to popular platforms like Facebook Live, Twitch, YouTube, and more.

CONNECT your NINJA V and NINJA V+ to ATOMOS Cloud Studio
Livestream to Facebook Live, Twitch, YouTube, and more, directly from your network-connected device
Wi-Fi 6 provides high performance wireless connection and the ability to connect to a mobile hotspot
1GbE Ethernet for high-speed robust hardwired network connection
12G SDI IN with support for video 4K up to 60fps, with option for upgrade to support SDI RAW (Resolution and frame rate are device dependant)

Long range ATOMOS AirGlu™ sync technology for wireless timecode via RF and Bluetooth LE
Flexible power option NPF battery power or DC input via battery eliminator (support for DC to D-Tap cable)​
Link and control monitor assist tools via the AtomRemote iOS app.

Delivery Content
• ATOMOS CONNECT
• AtomX SSDmini Handle
• MasterCaddy III with screw
• Wifi-Antenne with Black cap
• RF-Antenne
• Antenne storage pouch
• 3.5mm audio jack to jack cable
• Antenna coloured cap
• Antenna mount covers

Specifications

Dimensions (W x H x D mm)

150mm x 88mm x 53.5mm / 3.4" x 5.9" x 2.11"

Weight (grams/lbs) without battery / accessories

230g / 0,5 lbs

Mounting points

2 x Thumb screws to mount to NINJA

Environmental

Operating temperature (C/F)

Up to 40 Degrees Celsius

Construction & Control

Body

ABS Polycarbonat

Tally light

Yes

Power

Input voltage range

6,2 - 16,8 V

Compatible batteries

NP-F / L-Series

DC in connector

via locking DC Jack on Battery Eliminator (55mm OD & 2.1mm ID)

D-Tap

Via optional D-Tap to DC cable

Video Input

SDI in

1 x 12G SDI

SDI RAW

Optional Upgrade Activation - Resolutions & Fram rate Support is NINJA Dependant

Network

Ethernet

1GbE RJ45

Wi-Fi

WI-FI 6

Wireless RF AirGlu SYNC Time code Network

Cellular

Connect to Hot Spot via Wi-Fi

Web-Streaming

RTMP

Yes

RTMP / S

Yes

Video Signal Conversion

HDMI to SDI

No

SDI to HDMI

Yes, via NINJA

Timecode/Synch

SDI

Embedded

Wireless SYNC

AirGlu™ SYNC Time code Network

RF Network

Range

300m

Frequency

Region dependant

Number of Channels

12 RF Channels per Region

Number of RF-Clients

100 Clients

Bluetooth Network

Range

10-15m (line of sight)

Number of BT-Clients

6 Clients per device

LTC

No BNC input

Remote control

Bluetooth LE via AtomControl App for Monitor Assist Tools
