Autocue Navigator Plus Conference Package (P7008-0905)

• Complete package ready to prompt straight out of the box
• Simple setup
• High brightness monitors suit any lighting conditions
• SDI connection allows greater distance between operator and prompters
• Includes a 12-month Pioneer Software license

The Navigator Plus Conference Package is ready for any event. Larger venues and tucked away operating positions are no issue because the monitors connect with SDI and a brightness of 1500 nits means that they’ll still be readable outside in the sunshine. In this system you also have Pioneer Software with our unique PowerPoint integration that triggers each slide as you prompt the script.

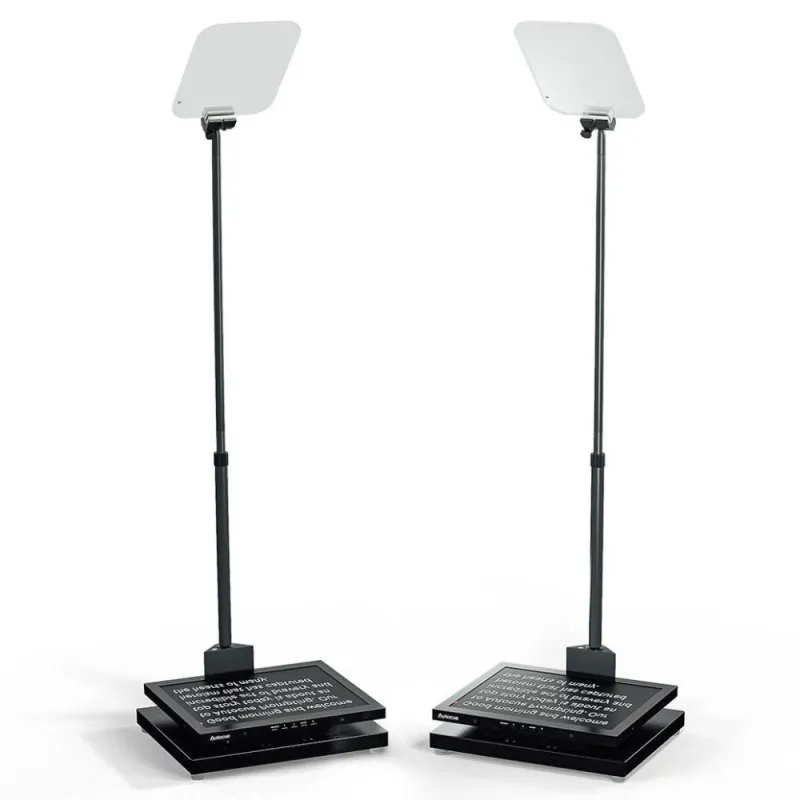

Autocue Navigator systems pack together everything you need to bring prompting to a venue. In the box you’ll find two monitors, two conference stands, a one-year Pioneer Software license and a ShuttleXpress hand control. It even includes all the cables you need to get started and a case to transport the system from one event to the next.

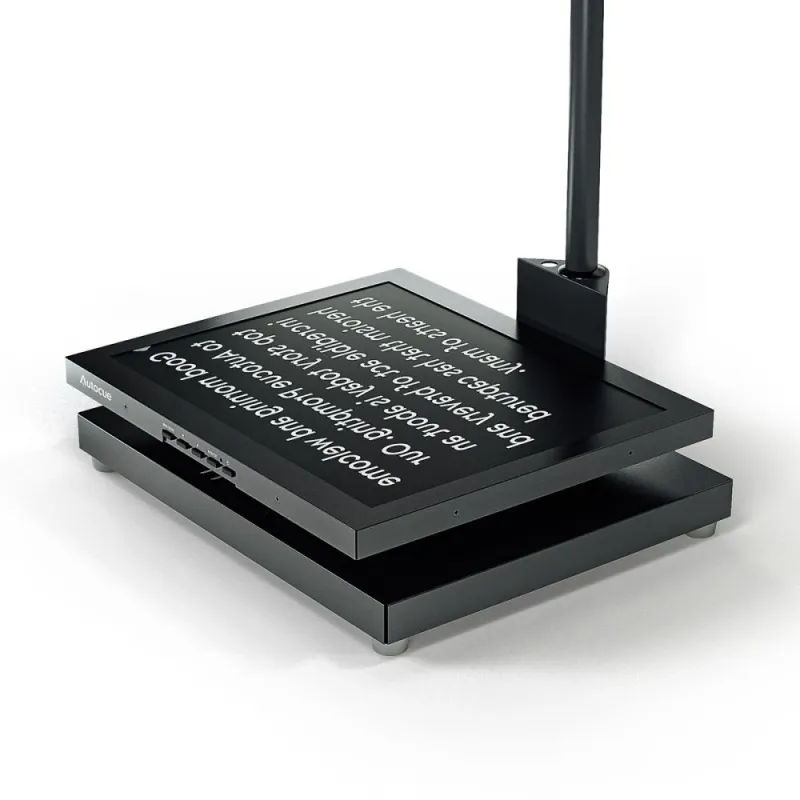

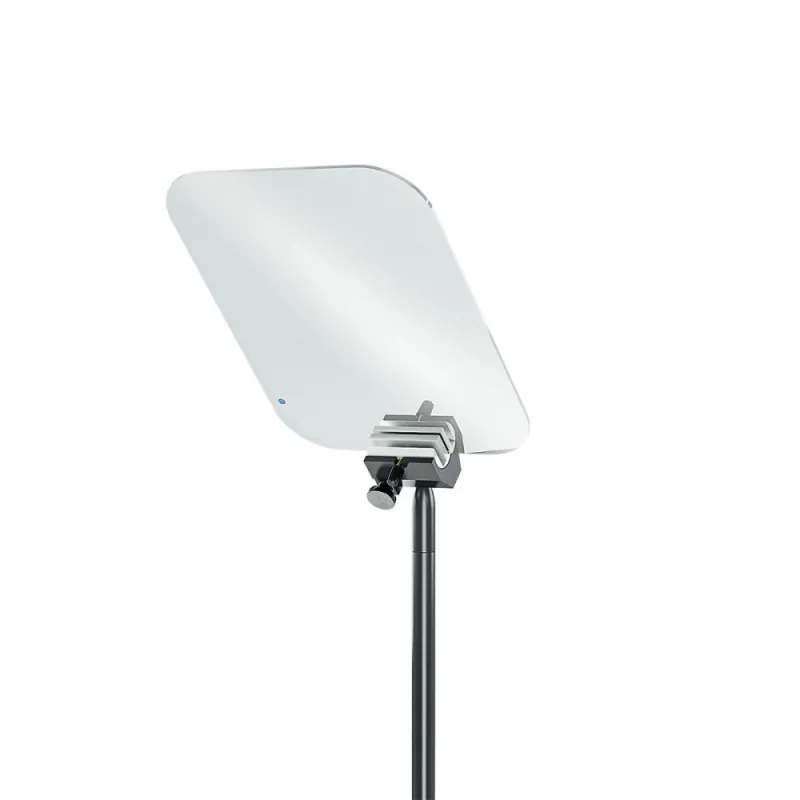

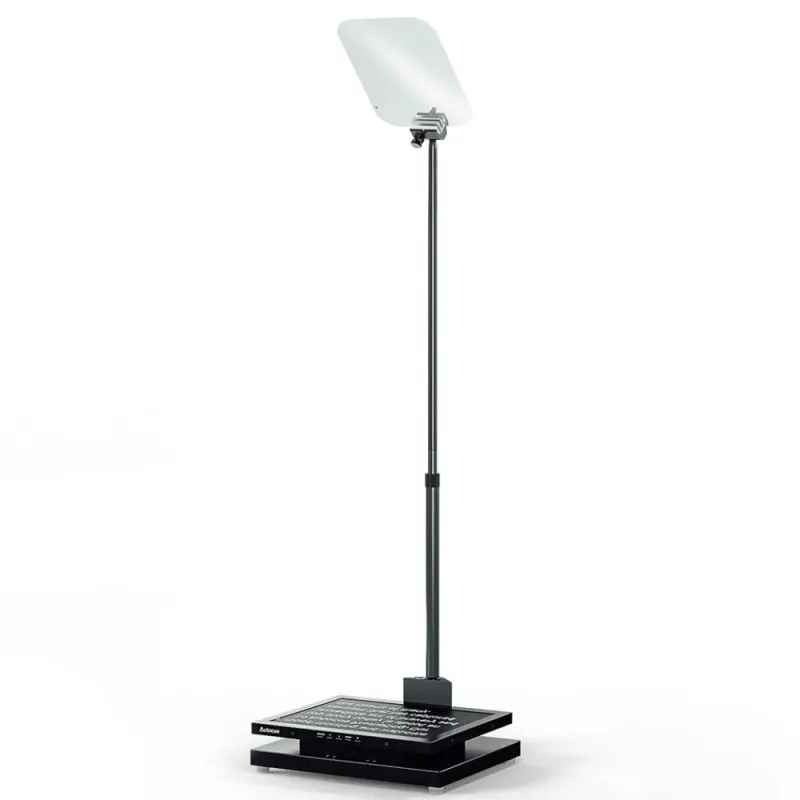

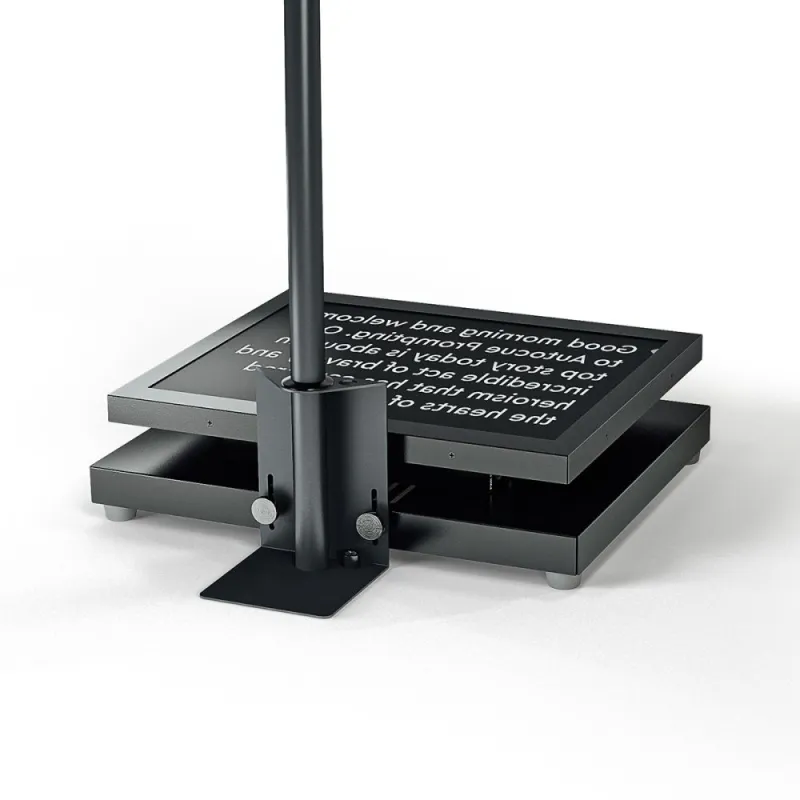

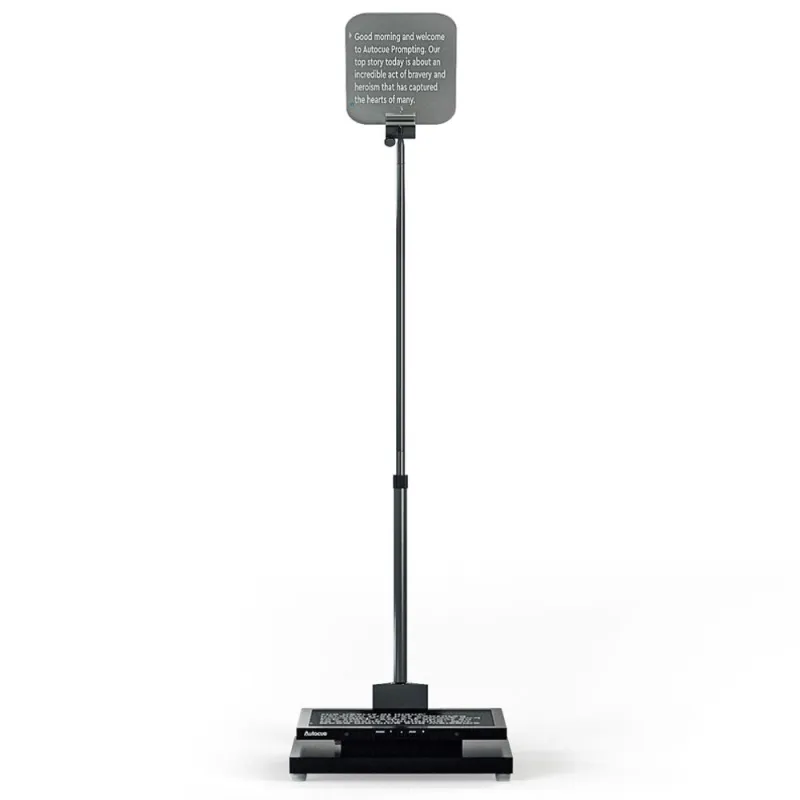

The monitors have a metal housing that’s lightweight and tough enough to survive for the long-haul. Simply rest them on the base of the conference stands and use the included adaptor to run an SDI cable to each one. The conference stand poles can be adjusted to place the glass at the perfect height to make the script visible to the speaker and you can be confident it will remain unseen by the audience thanks to Autocue 70:30 beamsplitter glass.

The Navigator Conference Package comes with a free one-year license for Pioneer Software, Autocue’s highest spec prompting application.

Delivery Content
• Monitor (2x)
• PSU (2x)
• UK/EU or US IEC power cable (2x)
• BNC Cables, 2m, 20m
• HDMI to SDI adaptor with HDMI cable
• Telescopic beamsplitter pole (2x)
• Adjustable beamsplitter mount(2x)
• Beamsplitter glass (3x)
• Pioneer software license pack, 1 year entitlement
• ShuttleXpress controller
• Transit case

Specifications

Display Size

17

Aspect Ratio

4:3

Brightness

1500Nits

Contrast

1000:1

Resolution

1280x1024

Connectivity

3G/HD/SD-SDI (with looped output), CVBS (with looped output), HDMI, VGA

Input Voltage

12V DC

Power Consumption

30W max.

Power Supply

90-264V AC 50/60Hz input, 12V DC, 3A max. output

Monitor Fixings

VESA100, VESA75

Base

400 x 340 x 42mm (15.7 x 13.4 x 1.7)

Height range

985 - 2187mm (38.8 - 86.1)

Beamsplitter glass dimensions

304 x 228mm (12 x 9)

Weight

7.6kg (16.8lbs) [each conference prompter]

Cables

20m (65.6) SDI, 2m (6.6) SDI

Adaptors

HDMI to 3G-SDI converter

Software

Pioneer, 1 year license

Controller

ShuttleXpress
