SmallRig V-Mount Battery Mount Plate Kit for Cinema Cameras 4323 4323

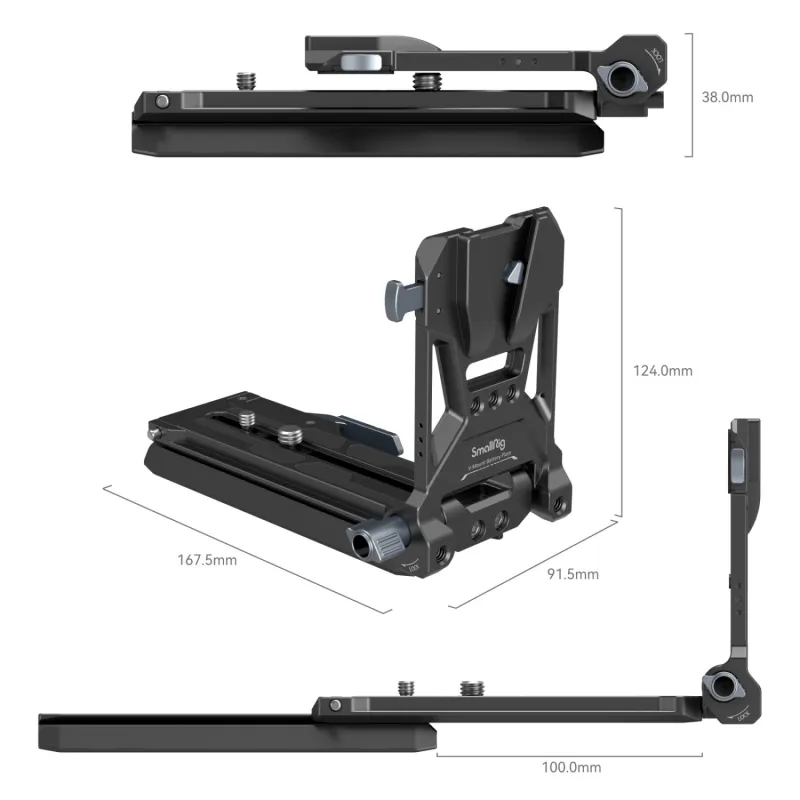

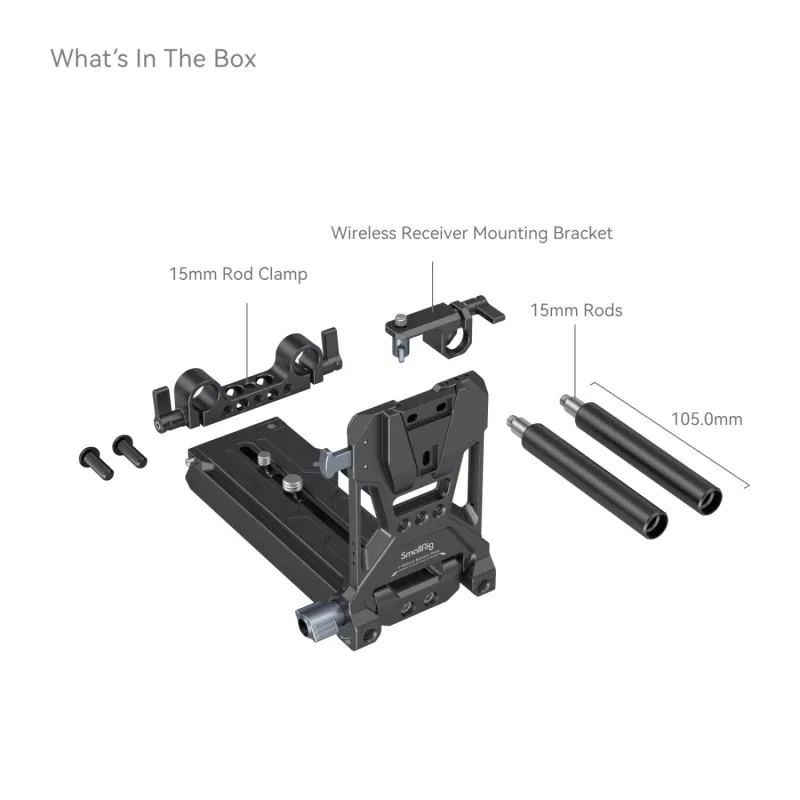

SmallRig V-Mount Battery Mount Plate Kit for Cinema Cameras 4323 is a compact, lightweight, fast, and all-in-one V-Mount battery expansion solution for small cinema cameras. The kit includes a V-Mount battery mount plate kit, a 15mm rod clamp, 15mm rods, and a wireless receiver mounting bracket. The V-Mount battery mount plate kit adopts an integrated design, and is ready to be installed, which allows to quickly mount a V-Mount battery. With a modular design, the V-Mount battery mount plate kit weighs about 300g, and only 230g with the bottom Manfrotto 501 quick-release plate removed, making handheld shooting easier. The baseplate can be stretched by about 100mm / 4.0in to quickly solve the problem of the center of gravity due to heavy lenses.

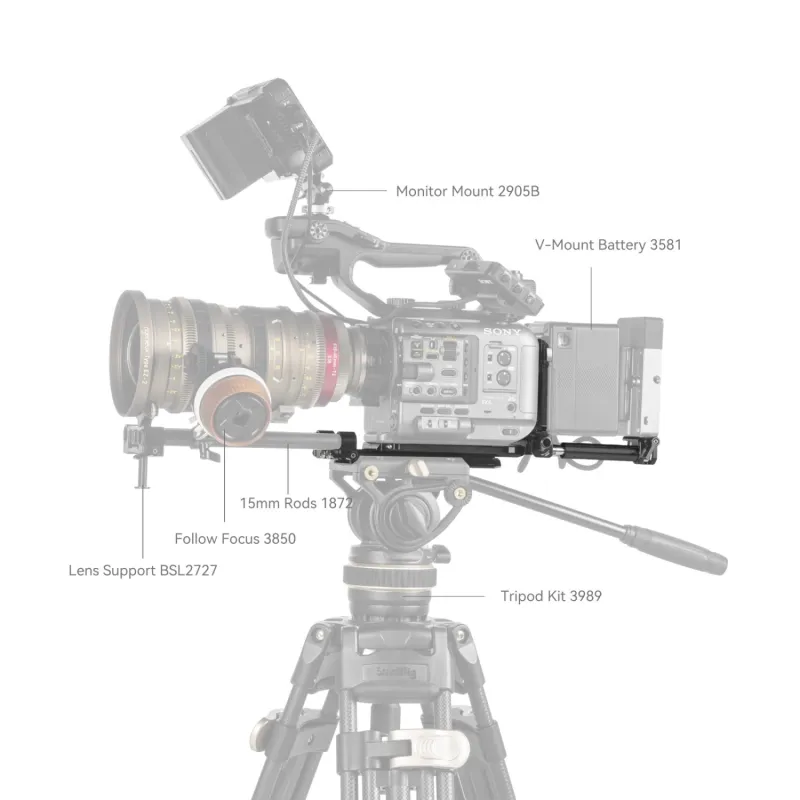

The V-Mount plate can be rotated and adjusted by 180. Adjust forward for convenient storage, and adjust backward to facilitate the use of the LCD screen, interface, card slot, etc. on the back. The built-in Manfrotto 501 quick-release plate is on the bottom for quick switching between handheld and tripod. The V-Mount Battery Mount Plate Kit comes with a 15mm rod clamp, a dual 15mm rod clamp, a wireless receiver mounting bracket, and other accessories. The 15mm rod clamp can be mounted at the front end to facilitate the installation of a 15mm rod clamp at the back to extend follow focus (3781), lens support (BSL2680), matte box VND kit (3645), and other accessories. The dual 15mmrod clamp can be installed at the rear to facilitate the mounting of an image transmitter, chest pad mount plateMD3183, etc. The kit comes with a wireless receiver mounting bracket for compact wireless receiver mounting.

1. Integrated design, ready to install and use, quick-release V-Mount battery power supply solution.
2. Lightweight, compact, modular design for easier and more convenient use.
3. The baseplate is made of a stretch material, that can quickly adjust the center of gravity (up to 100mm / 4.0in).

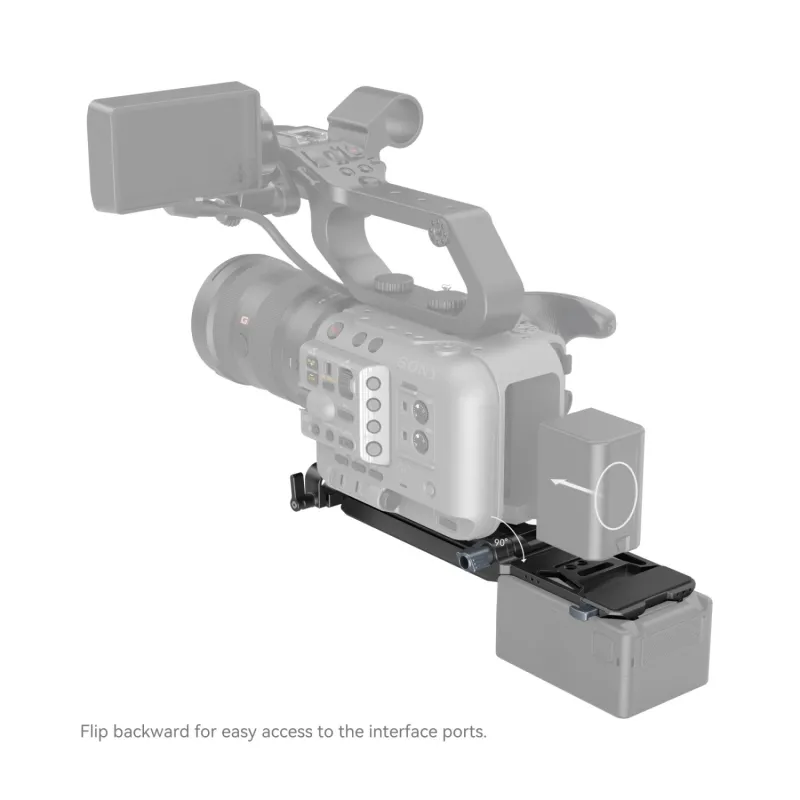

4. The rotatable design of the V-Mount is convenient for storage and does not block the use of the rear interface of the camera.

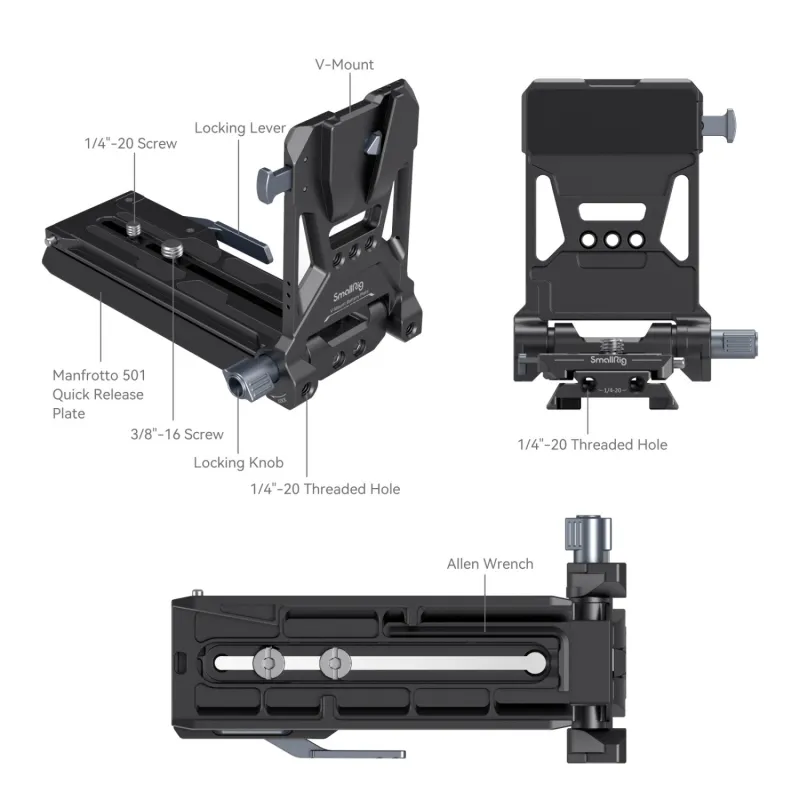

5. The built-in Manfrotto 501 quick-release plate at the bottom for quick switching between handheld and tripod modes.

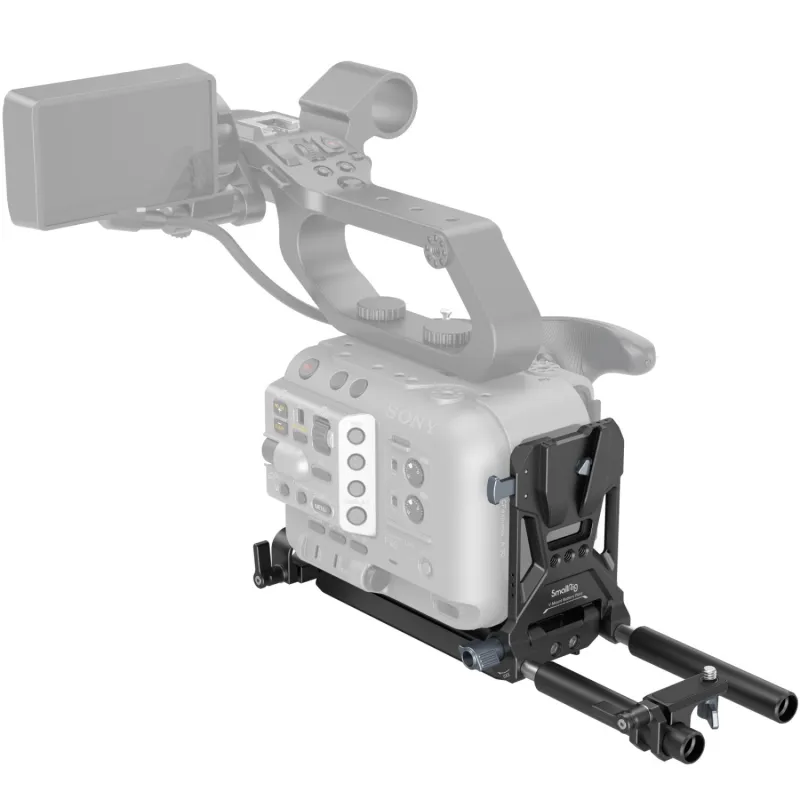

6. Comes with a 15mm rod clamp, dual 15mm rod clamp, and wireless receiver mounting bracket, to facilitate the expansion of accessories such as follow focus, matte box kit, lens support, image transmitter, etc.

Note: Load-bearing capacity: 10kg
