Handheld Shock Absorber Support 5508

Handheld Shock Absorber Support 5508

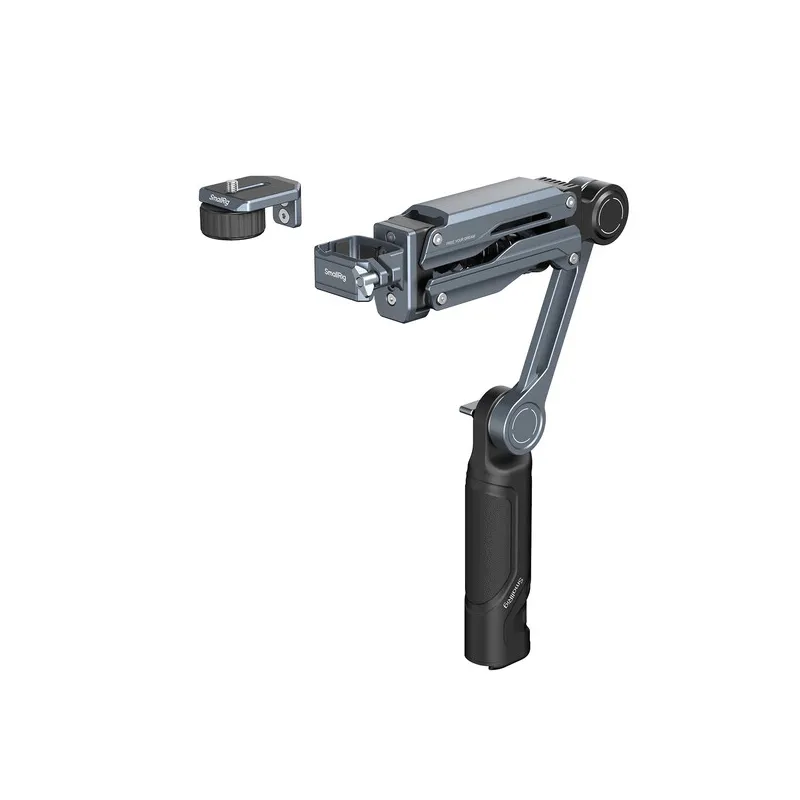

The SmallRig Handheld Shock Absorber Arm (Standard Version) is a compact stabilization system designed for action cameras and lightweight rigs. Featuring a spring-loaded hydraulic damping structure with an adjustable handle, it reduces vertical vibrations during walking, running, or handheld movement. Supporting up to 1.3 lb, it improves motion smoothness for devices like DJI Osmo Pocket, GoPro, and Insta360 cameras, making it ideal for vloggers and action shooters.

The SmallRig Handheld Shock Absorber Arm is engineered to enhance handheld footage stability by introducing a dedicated Z-axis damping system. Designed for action cameras and compact gimbals, it significantly reduces shake caused by walking, running, or dynamic movement.

At the core of the system is a spring-loaded hydraulic damping mechanism, which absorbs vertical motion and smooths out footage in real time. This allows creators to achieve cinematic-style stabilization even without a full gimbal setup. The damping force is adjustable, enabling users to fine-tune resistance depending on activity intensity—from casual vlogging to fast-paced sports recording.

The arm includes an ergonomic adjustable handle for comfortable grip and control, along with a modular structure that supports different mounting configurations. A counterweight system and extension arm are included to maintain balance when using slightly heavier camera setups or when adjusting shooting angles.

Built from a combination of aluminum alloy, stainless steel, and durable plastic, the arm maintains strength while remaining portable enough for field use. It supports a maximum payload of 1.3 lb (600 g), making it suitable for compact action cameras and small rigs.

Key Features

• Z-axis stabilization for action cameras and compact rigs
• Spring-loaded hydraulic damping system
• Adjustable handle for improved grip and control
• Reduces vertical shake during walking, running, or biking
• Supports up to 1.3 lb (600 g) payload
• Includes counterweight and extension arm
• Adjustable damping intensity for different shooting styles
• Compatible with action cameras and compact devices

Compatibility

• DJI Osmo Pocket 4 / Pocket 3
• GoPro HERO series (HERO9–HERO13)
• Insta360 X3 / X4 / X5
• Smartphones (via 1/4"-20 mount adapter)

• Shock absorber arm × 1
• Osmo Pocket mounting clamp × 1
• Extension arm × 1
• Counterweight × 1
• Mounting screws / accessories kit × 1

• Load Capacity: 1.3 lb / 600 g
• Mounting Options: Osmo Pocket clamp, 1/4"-20 thread
• Materials: Aluminum, stainless steel, plastic
• Dimensions: 300 × 217 × 66 mm (11.8 × 8.5 × 2.6 in)
• Weight: 1.12 kg (2.47 lb)
