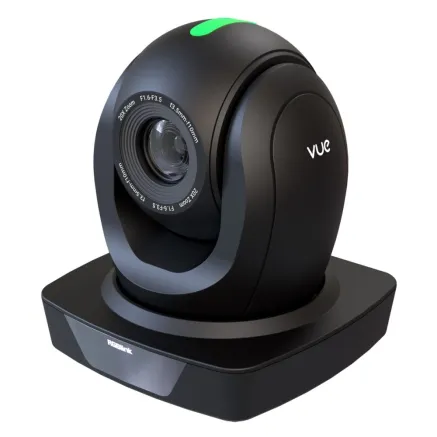

RGBlink VUE PTZ Camera 20x Optical Zoom (RGB20X-POE-TLY)

RGBlink VUE PTZ Camera 20x Optical Zoom (RGB20X-POE-TLY)

The RGBlink VUE PTZ Camera 20x Optical Zoom is a professional broadcast PTZ camera in a sleek black design with a tally LED light on top. With its fast, silent rotation and zoom function, it is ideal for smaller productions, live events or in the education sector. Video output is via HDMI, 3G-SDI, USB 2.0 or IP streaming via network at up to 1080p60. Even in low-light conditions, it delivers top-notch image quality with rich colors thanks to dynamic noise reduction. The lens high zoom factor and intelligent, fast autofocus allow for sharp distance shots.

• High image quality with dynamic noise reduction in low light conditions
• High-speed optical zoom
• Full HD resolution with up to 60 frames/sec simultaneously on all video outputs
• Embedded audio in HDMI, SDI and network streams
• H.264/H.265 dual streaming with all relevant network protocols
• Tally LED light on top
• OSD menu with manual IP entry/DHCP activation via remote control
• Administration via web browser
• PTZ camera control via VISCA or Pelco protocols
• Power supply via PoE
• Power saving sleep function with parking position of lens vertically downwards
• 1/4 tripod thread on the bottom side
• Suitable for wall or ceiling mounting (accessories not included)

Connections
The camera has one HDMI, 3G-SDI, USB and network port each, simultaneously outputting video signals at a maximum of 1080p60. Connected to a PC via USB, the camera is recognized as a UVC webcam without driver installation. It can be immediately integrated into OBS-Studio for streaming or into Zoom, MS-Teams or similar for video conferencing. The video signal can be output at 720p or 1080p with the frames common in broadcast. Optionally, date, time and the individual camera name can be displayed in the image. Audio signals from a microphone or line-in device are embedded in the HDMI, SDI or network stream via the 3.5 mm stereo jack. Power is supplied to the camera via the included AC adapter, or alternatively via LAN thanks to the PoE function if Power over Ethernet is supported by the router.

Configuration via remote control or web browser
The camera can be put into operation immediately with the default settings. With the supplied remote control, a great many settings can be configured via the On Screen Display menu control, which is displayed via HDMI or SDI on a connected monitor. Activating DHCP or manually entering the IP address as well as adjusting brightness, contrast, resolution or frame rate is a significant convenience here.
The advanced configuration of the camera is carried out via password-protected access using a web browser. Audio, video and network parameters can be adjusted and firmware updates can be performed via the well-structured menu navigation in German or English. Numerous image settings such as focus, exposure, color space, gamma, etc. can be changed from auto mode to personal preferences and saved.

• 1 x RGBlink RGBlink VUE PTZ Camera 20x Optical Zoom
• 1 x IR remote control (2 x AAA batteries not included)
• 1 x 230V power supply
• 1 x RS-232 serial cable
• 1 x user manual

Technical Specifications see download section
