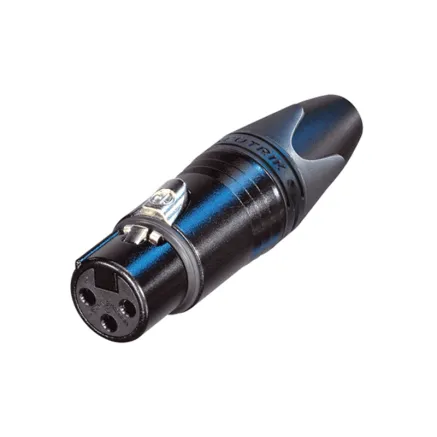

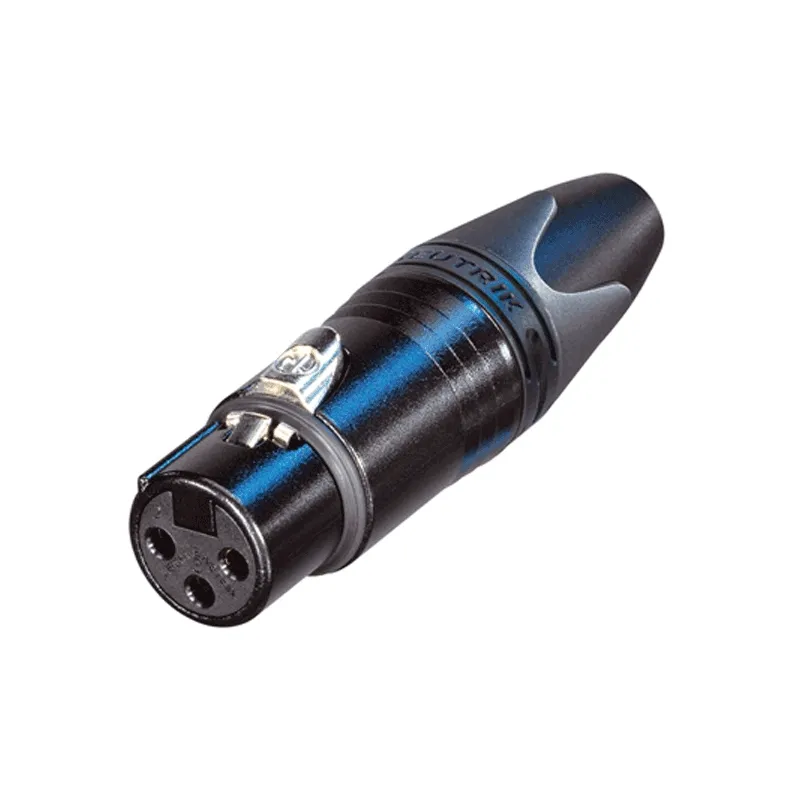

Neutrik NC3FXX-B XLR Cable Connector - Black Metal, Gold Contacts

Product ID: 49080
14,45 tax incl.

Delivery in 5 - 7 business days

Available from supplier: 4 Items

SKU: 49080
Model: NC3FXX-B
Ean: 7613187000201
Condition: New product
Manufacturer: Neutrik

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers?
Type of ProductCables
ConnectorXLR
ColorBlack
send a message

Quick order


Available from warehouse

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Neutrik NC3FXX-B XLR Cable Connector - Black Metal, Gold Contacts

Neutrik NC3FXX-B XLR Cable Connector - Black Metal, Gold Contacts

Write a review

Product details

Neutrik NC3FXX-B -pole female cable connector with black metal housing and gold contacts.

The new generation of the globally recognized XLR cable connector standard. The successor to the X series offers several new features, more reliable, easier assembly and better contact and cable clamp integrity.

Technical Specifications:

  • Capacitance:≤ 4 pF
  • Contact resistance:≤ 3 mΩ
  • Rated voltage 1min:1.5 kVdc
  • Insulation resistance:> 10 GΩ
  • Rated current per 1 contact:16 A
  • Rated voltage:50 V
  • Cable diameter: 3.5 - 8.0 mm
  • Force required to connect connectors:≤ 20 N
  • Force required to disconnect connectors:≤ 20 N
  • Lifetime:> 1000 connection cycles
  • Conductor: max. 2.5 mm², max. 14 AWG
  • Soldering
  • Cable cap:polyurethane
  • Contact surface treatment:0.2 µm Au layer on 2 µm Ni
  • Contact material:Bronze (CuSn8)
  • Polyamide (PA 6.6 30% GR)
  • Lock:Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Connector body:Zinc diecast (ZnAl4Cu1)
  • Connector body finish:black chrome
