Canare L-4E6S Star Quad Microphone Cable

Canare L-4E6S Star Quad Microphone Cable

Canare L-4E6S is a flexible, durable Star Quad microphone cable with braided copper shield and low handling noise, ideal for professional audio use.

Write a review

Product details

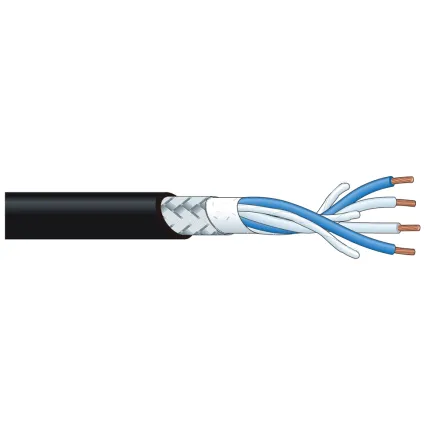

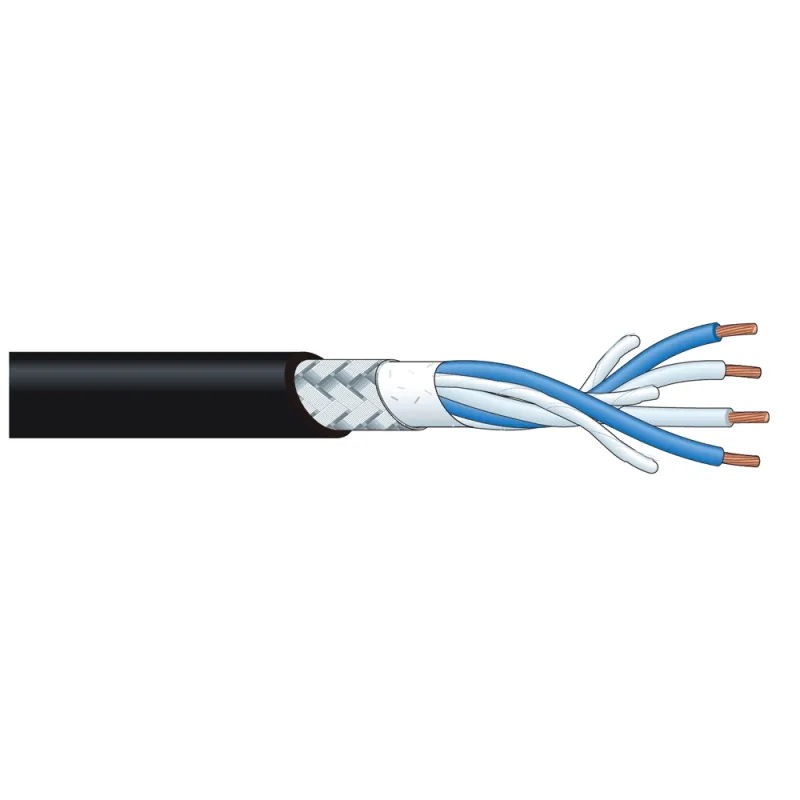

Canare L-4E6S Star Quad Cable

The Canare L-4E6S is a premier Star Quad cable designed specifically for handheld microphone applications. It features a flexible, satin-smooth outer jacket that is extra strong, with a standard diameter suitable for all XLR-type audio connectors. Each conductor consists of forty separate strands, which significantly reduces the risk of breakage due to flexing.

Applications

  • Microphones
  • Portable audio applications
  • Audio rack wiring
  • Public address (PA) systems
  • Audio patch cords

Features

  • Braided copper shield for excellent interference rejection
  • Maintains flexibility even in extreme cold weather conditions
  • Cross-linked polyethylene (PE) insulation for durability
  • Reduced handling noise for clearer audio signals
  • Effective rejection of electromagnetic interference (EMI) and radio frequency interference (RFI)
  • Available in 10 matte color jacket options

Mechanical Specifications

  • Standard Lengths: 200 m (656 ft) and 305 m (1000 ft)
  • Weight: 11 kg (24 lbs) for 200 m, 16 kg (35 lbs) for 305 m
  • Nominal Outer Diameter: 6.00 mm (0.236 in)
  • Jacket Thickness: PVC, 1.12 mm (0.044 in)
  • Brittle Point: -49 °C (-56 °F)
  • Number of Conductors: 4 (2 blue, 2 white)
  • Insulation Type: Cross-linked PE, 15.7 mil thickness
  • Conductor AWG: 24 AWG, 40 strands of 0.08 mm diameter (40/3.15 mil)
  • Conductor Cross Section Area: 310 mil²
  • Pitch Twist (Quad): 20 mm (0.79 in)
  • Shield Coverage: Greater than 95% TAC braid

Electrical Performance (Quad Configuration)

  • Conductor DC Resistance: <9.8 ohm/100 m (<29.9 ohm/1000 ft)
  • Shield DC Resistance: <3.0 ohm/100 m (<9.1 ohm/1000 ft)
  • Nominal Capacitance (between twin blue and twin white conductors): 150 pF/m
  • Nominal Capacitance (between conductors and shield): 185 pF/m
  • Nominal Impedance: 44 ohms
  • Nominal Attenuation: 0.3 V/100 m (0.9 V/1000 ft)
  • Group Delay Time: 5.9 nS/m (1.80 nS/ft)

Note: Capacitance values are specified between twin blue and twin white conductors, and between conductors and shield.
