Swit GA-PT50E DMX Motorized Precise Pantograph hinge (for hook), max 23kg load, 5m length, no hook GA-PT50E
Condition: New product
Or ask about:
0.8m-5m DMX Motorized Pantograph

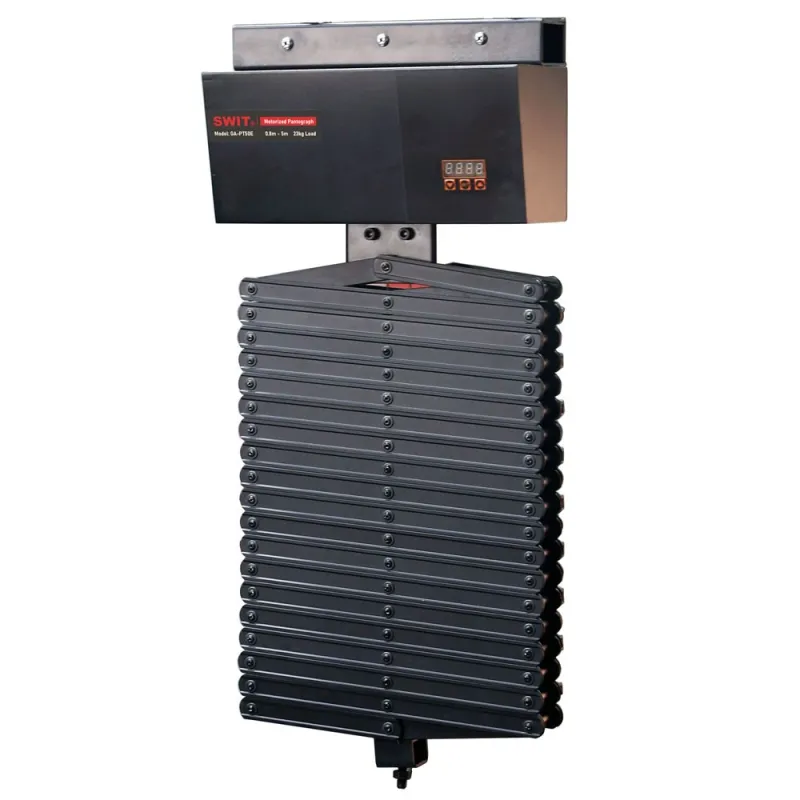

The GA-PT50E pantograph is an overhead support system designed for professional video studios, allowing DMX motorized control for studio lights with a speed of 10cm/s. It features an expansion length of 0.8m to 5m and supports a maximum load of 30kg.
Key Features
- Durable aluminum alloy construction
- Supports up to 30kg
- Adjustable length from 0.8m to 5m
- DMX motorized control
- Movement speed of 10cm/s
- 5-pin DMX input and loop out
- PowerCON True1 AC power input and loop out
- Rear cable organizer
- Easy connection with hooks and studio lights
DMX Address Display
The front panel allows you to set the DMX address for controlling the pantograph's movement.
Rear Interfaces
The rear panel includes AC 100-240V input and loop out, PowerCON True1 connectors, and DMX 5-pin XLR input and loop out for serial connections.
Rear Cable Organizer
The rear side features a cable organizer to keep power and DMX cables tidy while the pantograph moves.
Ceiling Hook Connection
Connect the GA-PT50E pantograph to ceiling hooks using screw bolts. The GA-DG75 hook is compatible with this pantograph.
Studio Light Connection
At the bottom, a screw bolt and nut allow for easy attachment to studio light fixtures. Note: Remove the baby pin socket from SWIT lights before installation.
Technical Specifications
- Model GA-PT50E
- Max Load 30kg
- Stretch Height 0.8m - 5m
- DMX 5-pin XLR in & out
- Input Voltage PowerCON True1 AC 100-240V 50/60Hz in & out
- Power Consumption 60W
- Moving Speed 10cm/s
- Net Weight 15kg
| Type of Product | Light stand accessories |
| Straps and holders | Turētāji |
| Holder type | cits |
| Color | Black/white/gray |
| Weight, gr | 1500 |
