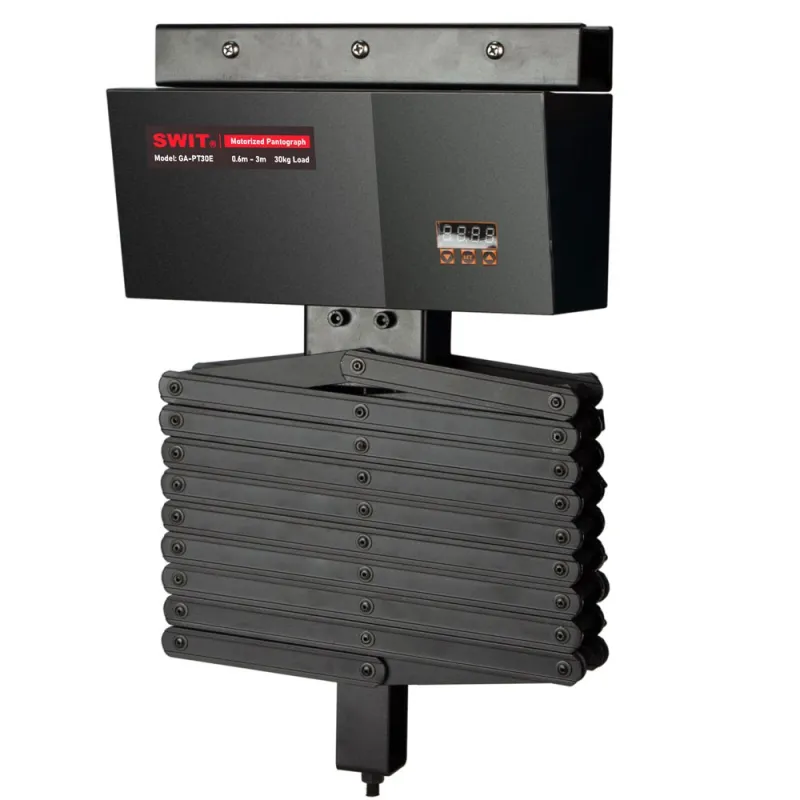

Swit GA-PT30E DMX Motorized Precise Pantograph hinge (for hook), max 23kg load, 3m length, no hook GA-PT30E
Condition: New product
Or ask about:
0.6m-3m DMX Motorized Pantograph
The GA-PT30E pantograph is an overhead support system designed for professional video studios, allowing DMX motorized control for adjusting studio light heights at a speed of 10cm/s. It has an expansion length of 0.6m - 3m and a maximum load capacity of 30kg.
Key Features
- Heavy-duty aluminum alloy construction
- Supports up to 30kg
- Expansion length 0.6m - 3m
- DMX motorized control
- Moving speed 10cm/s
- 5-pin DMX input and loop out
- PowerCON True1 AC power input and loop out
- Rear cable organizer
- Easy connection with hooks and studio lights via screw bolts
DMX Address Display
The front panel allows you to set the DMX address for controlling the pantograph's movement.
Rear Interfaces
The rear panel features AC 100-240V, 50/60Hz input and loop out, PowerCON True1 connectors, and DMX 5-pin XLR input and loop out for serial connections.
Rear Cable Organizer
The rear side includes a cable organizer to keep light power and DMX cables tidy while the pantograph moves.
Ceiling Hook Connection
Connect the GA-PT30E pantograph to ceiling hooks using screw bolts. The GA-DG75 hook is recommended for compatibility.
Studio Light Connection
At the bottom, a screw bolt and nut allow for easy attachment to studio light fixtures. Note: Remove the baby pin socket from SWIT lights before installation.
Technical Specifications
- Model GA-PT30E
- Max Load 30kg
- Stretch Height 0.6m - 3m
- DMX 5-pin XLR in & out
- Input Voltage PowerCON True1 AC 100-240V 50/60Hz in & out
- Power Consumption 60W
- Moving Speed 10cm/s
- Net Weight 13kg
| Type of Product | Light stand accessories |
| Straps and holders | Turētāji |
| Holder type | stiprinājums pie caurules |
| Color | Black |
| Weight, gr | 13000 |
