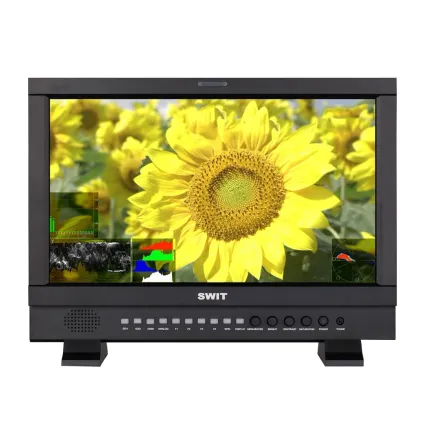

Swit S-1173FS 17 FHD Studio Monitor with full professional functions
Condition: New product
AI ASSISTANT CHAT
Or ask about:
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
17 Studio Monitor with full professional functions, 3G SDI/HDMI, 1920*1080,including desktop stand, TSL UMD
17.3-inch Full HD Studio LCD Monitor
AH-IPS LCD panel, LED backlight
S-1173F adopts a 17.3 -inch IPS (In-Plane Switching) LCD panel, Full HD 19201080 resolution and LED backlight, 700:1 contrast for accurate color reproduction. The viewing angle is Horizontal: 160 / Vertical: 160.
Multi-format Input/Output
S-1173F supports
2K/3G/HD/SD-SDI input2
2K/3G/HD/SD-SDI loop 2
HDMI input 1
HDMI loop1
YUV input 1
VGA input 1
CVBS input 1
CVBS loop 1
RS485 UMD input1
RS485 UMD output1
RS232C UMD input 1
RS485 GPI input 1
L/R analog audio input1
Video Analysis Assistant Pattern
Waveform / Vector scope / Histogram
S-1173F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence.
Embedded audio monitoring
Up to 16-ch meters with alert and select output
S-1173F supports SDI-16ch and HDMI-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from Up/Down/Left/Right, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.
UMD and Text-Tally Display
TSL 3.1/4.0 Protocol
S-1173F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD inputs via RS485 or RS232C port and outputs via RS485 port.
Peaking, R/G/B/Mono only, Zebra, False color
Timecode, H/V delay, AFD, Scale Markers
3DLUT Color Calibration
Built-in De-Log LUTs and User LUT upload
Support 17x17x17 3DLUT accurate color calibration. Use professional color analyzer (KONICA MINOLTA CA310 e.g.) and 3DLUT calibration software (SpectralCal CalMAN5 e.g.) to measure and generate 3DLUT cube file to upload to the monitor by USB stick.
The monitor also has built-in camera logs to Rec 709 con- version LUTs, including Log-C, C-log, S-log2S-log3, V-log, J-log1, RedLogFilm.
You can import own 3DLUTs to monitor by USB stick.
USB Firmware Upgrade
S-1173F provides a standard USB port for firmware upgrade. Users can download
the latest firmware file to a USB stick, and directly insert into S-1173F monitor to upgrade, without PC connection.
Multiple Power Sources
AC adaptor / V-mount / Gold mount
S-1173F provides a 4-pin XLR socket of DC 11-17V power input, and V-mount or Gold mount plate for outdoor using.
3-color TALLY Light
RS485 input signal
There are three colors for the Tally light: Red, Green and Yellow. Users can define the pins of RS485 port to control the TALLY lights.
- 17.3-inch LCD Panel, 19201080 resolution
- 2K/3G/HD/SD-SDI( x2 ), HDMI monitoring
- Y/Pb/Pr, VGA, CVBS monitoring
- 3DLUT 17x17x17 color calibration
- Built-in Multiple De-log 3DLuts
- User LUTs upload by USB
- 16-ch Embedded audio meters with alert
- Select any 2 audio channels to output
- Waveform Y/Cb/Cr/R/G/B and single line
- Vector scope, histogram R/G/B/Y
- Peaking focus assist (red/blue switch)
- AFD, Timecode, H/V delay
- TSL UMD and text TALLY display
- Safety Marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
- False Color, R/G/B/Mono, Zebra stripes, Internal Color Bar
- V-mount / Gold mount battery plate optional
- 19inch Rack install, 7U height
- USB firmware upgrade
