6-inch Full HD 1920x1080 touchscreen monitor with HDMI input/output, 3D LUT support, waveform, histogram, and camera power output.

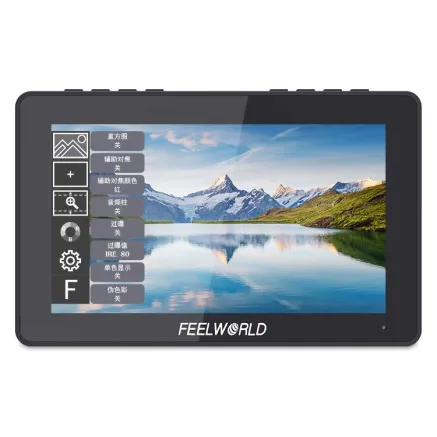

Feelworld F5 Pro V4 6 Inch Touch Screen DSLR Camera Field Monitor

Product ID: 53043
€ 175,95 tax incl.

Delivery in 5 - 7 business days

SKU: 53043
Model: F5 PROV4
Ean: 6971863815763
Condition: New product
Manufacturer: Feelworld
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductLCD Monitor
send a message

Quick order


Available from warehouse

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Feelworld F5 Pro V4 6 Inch Touch Screen DSLR Camera Field Monitor

Feelworld F5 Pro V4 6 Inch Touch Screen DSLR Camera Field Monitor

6-inch Full HD 1920x1080 touchscreen monitor with HDMI input/output, 3D LUT support, waveform, histogram, and camera power output.

Write a review

Product details

Display Specifications

  • Screen Size: 6-inch IPS Touch Screen
  • Resolution: Full HD 1920 x 1080 pixels
  • Aspect Ratio: 16:9
  • Brightness: 450 cd/m²
  • Contrast Ratio: 1000:1
  • Viewing Angle: 160° wide viewing angles

Input and Output Interfaces

  • Inputs: HDMI, USB Type-C 5V power input
  • Outputs: HDMI loop output, stereo headphone output, DC OUT 8.4V (barrel connector 5.5mm outer, 2.1mm inner) for powering DSLR or mirrorless cameras

Power and Mounting Features

  • Innovative external power supply design reduces the need for additional power connections to wireless transmitters, LED lights, and other equipment
  • Provides auxiliary power output to power cameras directly
  • Includes L-Series battery plate
  • Rear bracket for attaching wireless transmitters
  • Power inputs via DC and USB Type-C

Image and Monitoring Features

  • Supports 3D LUTs including Log to Rec.709 conversion and user-uploaded 3D LUTs
  • Waveform monitoring (RGB, Y, YUV)
  • Histogram display (RGB1, Y, RGB2)
  • Peaking focus assist with selectable highlight colors (red, green, blue)
  • False color exposure indicator
  • Zebra exposure warning
  • Nine-grid composition overlay
  • Scan modes: Under Scan and Over Scan
  • Zoom options: 4x, 9x, 16x magnification
  • Anamorphic modes: 1.3x, 2.0x, 2.0x mag, and user-defined adjustment from 1.20x to 2.00x
  • Pixel-to-pixel mapping
  • Center marker and safe area markers (80%, 85%, 90%, 93%, 96%, 2.35:1)
  • Ratio markers for various aspect ratios (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
  • Selectable marker colors (red, green, blue, white, black)
  • Check field modes (red, green, blue, mono)
  • Image flip options (horizontal, vertical, horizontal/vertical)
  • Image freeze function
  • Adjustable zoom all (0 to 500%) and directional zoom (up/down, left/right) with 0 to 500% range
  • Color temperature adjustment

Additional Features

  • Supports up to DCI 4K video input
  • Pinch-to-zoom touchscreen gesture for intuitive control
