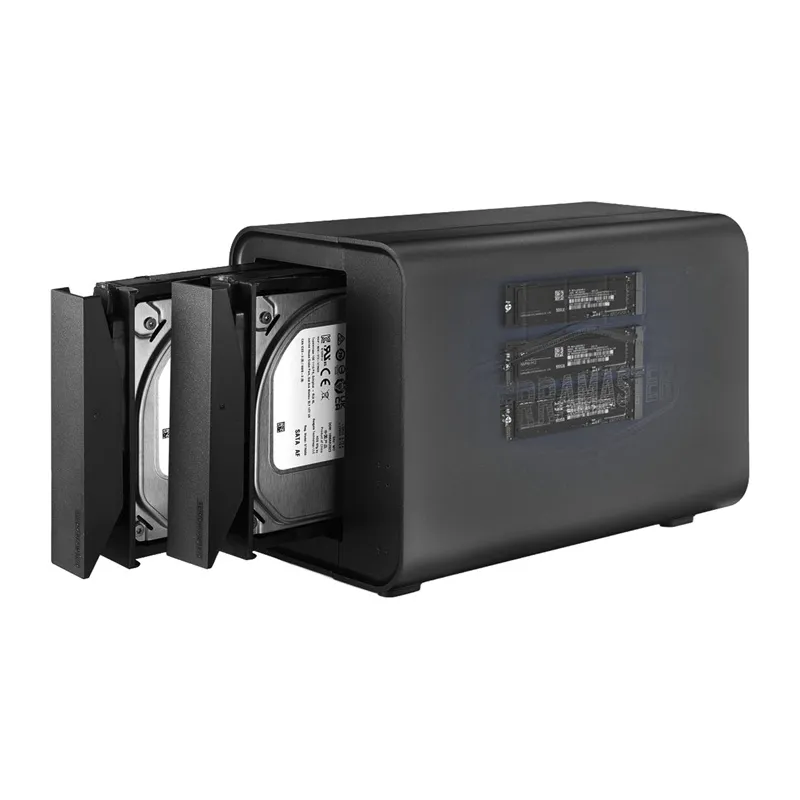

TerraMaster D5 Hybrid 5-Bay DAS Enclosure
The TerraMaster D5 Hybrid is a modern 5-bay DAS enclosure that combines the capacity of traditional HDDs with the high performance of M.2 NVMe SSDs. It supports up to 2 SATA 3.5" or 2.5" drives and 3 M.2 2280 NVMe SSDs simultaneously, allowing flexible data storage with a total capacity of up to 68 TB. The USB 3.2 Gen 2 interface provides bandwidth up to 10 Gb/s, and compatibility with Windows, macOS, and Linux ensures integration with various workstations. This solution is ideal for archiving large data sets and working with files requiring fast access.
Hybrid Storage Architecture for Enhanced Performance
The D5 Hybrid model uniquely combines two storage technologies in one enclosure. HDDs serve as storage for less frequently used files, while fast NVMe SSDs handle frequently accessed projects, databases, or multimedia content. This approach optimizes storage expansion costs without sacrificing performance, enabling large data storage with instant access to critical resources.
High-Speed Data Transfer via USB 3.2 Gen 2
Equipped with a USB Type-C port compliant with USB 3.2 Gen 2, the enclosure offers bandwidth up to 10 Gb/s. It delivers read speeds up to 980 MB/s with NVMe SSDs and up to 960 MB/s in SATA SSD RAID 0 configuration. This enables faster large file transfers, efficient video editing, and reduced backup times. Compatibility extends to USB 3.0, USB 3.1, USB4, Thunderbolt 3, and Thunderbolt 4 for versatile connectivity.
Flexible RAID Configuration and Secure Data Storage
The D5 Hybrid supports hardware RAID modes including RAID 0, RAID 1, JBOD, and Single Disk for the two SATA drives. This allows customization from maximum performance to enhanced data security. An automatic RAID rebuild feature protects stored files, and an intuitive switch enables quick configuration without advanced technical knowledge.
Automatic Backups with TPC Backupper Software
Included TPC Backupper software enables automatic backups on Windows systems. Users can schedule backups of folders and disk partitions, ensuring regular data protection without manual effort. Support for incremental and differential backups reduces storage use and backup duration, enhancing data security and backup automation.
Quiet Operation and Efficient Cooling
The enclosure operates quietly with an intelligent 80 mm fan that adjusts speed based on load, effectively dissipating heat. Additional ventilation openings improve airflow, maintaining stable drive conditions. Noise level is approximately 19 dB(A), suitable for office or home environments without distraction.
Convenient Operation and Easy Drive Installation
Designed for easy storage expansion, SATA drives install tool-free for quick media replacement. M.2 NVMe SSDs are accessible via a sliding cover for simple installation. Compact dimensions of 222 × 119 × 154 mm minimize desk space usage while providing large storage capacity.
Package Contents
- TerraMaster D5 Hybrid enclosure
- AC power adapter
- Power cord
- USB-C to USB-C cable (10 Gb/s, 1 m length)
- Quick installation guide
- Set of mounting screws
- Manufacturer’s warranty document
Technical Specifications
- Manufacturer: TerraMaster
- Model: D5 Hybrid
- Number of bays: 5 (2 × SATA + 3 × M.2 NVMe)
- Supported SATA drives: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
- Supported M.2 drives: M.2 2280 NVMe SSD (M-Key / B+M Key)
- Maximum SATA capacity: up to 44 TB (2 × 22 TB)
- Maximum NVMe capacity: up to 24 TB (3 × 8 TB)
- Maximum total capacity: up to 68 TB
- Host interface: USB 3.2 Gen 2 Type-C
- Maximum interface bandwidth: 10 Gb/s
- Supported RAID modes for SATA drives: RAID 0, RAID 1, JBOD, Single Disk
- Noise level: 19 dB(A)
- Supported file systems: NTFS, APFS, Mac OS, FAT32, exFAT, EXT4
- Power supply: DC IN 12 V, 40 W
- Dimensions: 222 × 119 × 154 mm
- Net weight: 1.3 kg
