TERRAMASTER D8 Hybrid DAS 8-bay Drive Enclosure
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Other Accessories |
| Capacity | 120TB |
| Connector | USB-C |
| Media type | HDD/SDD enclosure |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
TerraMaster D8 Hybrid DAS Enclosure with 8 Bays

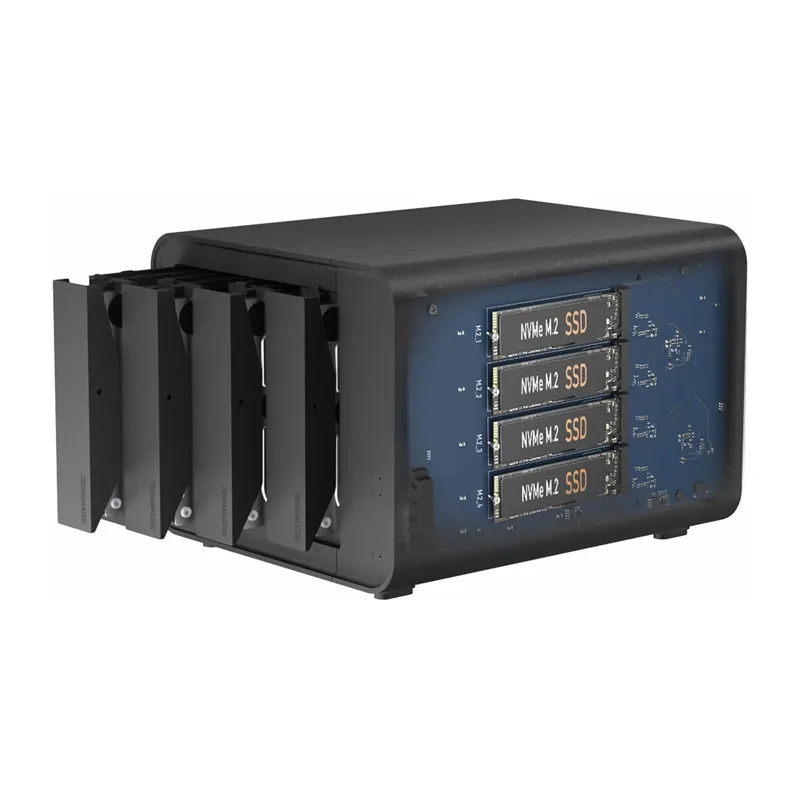

The TerraMaster D8 Hybrid is a modern DAS enclosure featuring 8 bays that combine the capacity of traditional SATA HDDs with the high performance of M.2 NVMe SSDs. It supports 4 SATA drives and 4 M.2 NVMe drives, offering a maximum raw capacity of up to 120 TB. Equipped with a USB 3.2 Gen 2 Type-C interface providing up to 10 Gb/s bandwidth, it ensures fast data transfer and seamless compatibility with Windows, macOS, and Linux systems. This enclosure is ideal for users requiring ample storage for files, backups, and projects demanding fast data access.
Combination of High-Speed SSDs and High-Capacity HDDs
The D8 Hybrid allows efficient data management by enabling users to store frequently accessed files on high-performance M.2 NVMe SSDs, while archiving, multimedia, and backups can be stored on high-capacity SATA HDDs. This approach optimizes storage space utilization and reduces costs. Manual assignment of data to appropriate storage media allows customization to individual workflows.
High-Speed Data Transfer
Featuring a USB 3.2 Gen 2 Type-C interface with up to 10 Gb/s bandwidth, the enclosure significantly accelerates copying of large files, photo libraries, and video footage compared to older standards. Data read speeds from a single M.2 NVMe drive can reach up to 980 MB/s, enabling smooth handling of demanding projects and reducing transfer wait times.
Hardware RAID Support for Enhanced Data Security
The TerraMaster D8 Hybrid supports hardware RAID modes including SINGLE DISK, JBOD, RAID 0, and RAID 1. RAID modes are selected via a convenient switch on the enclosure, allowing quick adaptation to performance or data protection needs. The device also features automatic RAID rebuild to enhance file security.
Wide Compatibility and File System Support
The enclosure supports USB 3.0, USB 3.1, USB 3.2, USB4, Thunderbolt 3, and Thunderbolt 4 standards, ensuring compatibility with a broad range of computers and devices. Supported file systems include NTFS, APFS, EXT4, FAT32, and exFAT, facilitating easy data exchange across Windows, macOS, and NAS platforms. The exFAT format supports large files and cross-platform transfers without requiring additional drivers, enabling immediate use upon connection.
Quiet Operation and Efficient Cooling
Despite housing eight drives, the TerraMaster D8 Hybrid remains compact (222 × 179 × 154 mm) and operates quietly at approximately 21 dB(A). Cooling is managed by an intelligently controlled 120 mm fan that adjusts speed based on temperature, maintaining stable operation during intensive use. A disk sleep function reduces power consumption during inactivity.
Included Accessories
- TerraMaster D8 Hybrid enclosure
- AC power adapter
- Power cord
- USB-A to USB Type-C cable (10 Gb/s)
- Quick Installation Guide
- Set of mounting screws
- Warranty information
Technical Specifications
- Manufacturer: TerraMaster
- Model: D8 Hybrid
- Number of bays: 8 (4 × SATA + 4 × M.2 NVMe)
- Supported SATA Drives: 3.5" HDD, 2.5" HDD, 2.5" SSD
- Supported M.2 Drives: M.2 2280 NVMe
- Maximum raw capacity: up to 120 TB
- Interface: USB 3.2 Gen 2 Type-C (10 Gb/s)
- Supported file systems: NTFS, APFS, Mac OS, FAT32, EXT4, exFAT
- RAID modes: SINGLE DISK, JBOD, RAID 0, RAID 1
- Maximum SSD read speed: up to 1016 MB/s (4 × SSD)
- Maximum SSD write speed: up to 960 MB/s (4 × SSD)
- Maximum M.2 NVMe read speed: up to 980 MB/s
- Maximum M.2 NVMe write speed: up to 880 MB/s
- Noise level: 21 dB(A)
- Dimensions: 222 × 179 × 154 mm
- Net weight: 1.9 kg
- Power supply: 90 W
- Compatible operating systems: Windows, macOS, Linux
