FNIRSI LPM-10A Cable Detector

FNIRSI LPM-10A Cable Locator

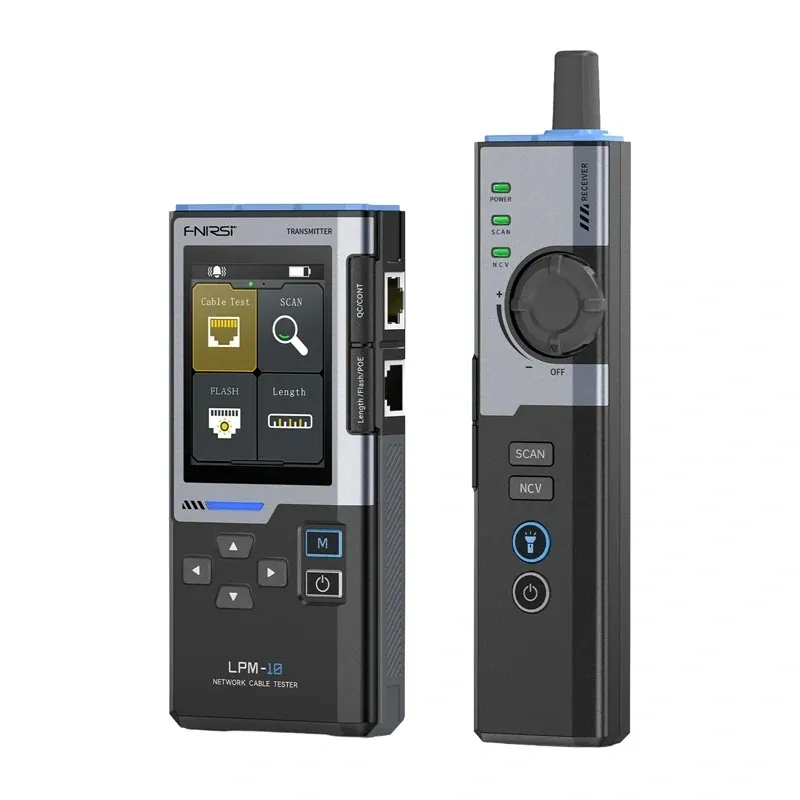

The FNIRSI LPM-10A is a multifunctional cable locator designed for network installation and maintenance, combining cable detection, cabling testing, voltage detection, and network diagnostics in a compact device. It features a clear 2.4-inch color TFT display, a high-capacity 1500 mAh lithium battery, and intuitive operation, making it suitable for both routine installation and complex maintenance tasks in computer and telephone networks.

Quick Cable Location

This device efficiently detects network and telephone cables using standard and interference-reduction modes, enhancing cable location accuracy even in environments with high interference. Adjustable sensitivity allows precise signal strength tuning. It measures cable length with an accuracy of ±3.2 meters over 100 meters and tests RJ45 connectors to identify pin connection errors affecting data transmission. The Wiremap function and cable continuity test detect breaks, short circuits, and faulty connections instantly.

Network and PoE Device Monitoring

The LPM-10A offers extensive diagnostic features to verify network infrastructure status. It checks PoE power parameters, identifying power delivery methods, supported standards, and voltage levels. The Port Flash feature helps locate the correct port on a network switch via flashing LEDs, streamlining maintenance. Additionally, it performs network speed tests in duplex mode to assess cable performance and detect transmission issues.

Safe Operation in All Conditions

Equipped with Non-Contact Voltage (NCV) detection, the device allows safe live wire detection without direct contact. An integrated LED flashlight aids work in dark or hard-to-reach areas. All measurements are displayed on the bright 2.4-inch color TFT screen with adjustable backlight for high readability in various lighting conditions.

Mobile Design for Field Use

The compact, durable housing is ergonomically designed for comfortable handheld use by installers and technicians. The built-in 1500 mAh lithium battery supports up to 10 hours of continuous operation and recharges conveniently via a USB-C port (5 V/1 A). Combining multiple diagnostic functions into one tool, the FNIRSI LPM-10A is ideal for installation, maintenance, and servicing of computer and telephone networks.

Included Accessories

• LPM-10A wire detector
• Type-C charging cable
• Alligator clip
• Headphone cable
• RJ45–RJ11 cable
• RJ45 cable
• Carrying case
• User manual

Technical Specifications

• Manufacturer: FNIRSI
• Model: LPM-10A
• Display: 2.4-inch color TFT
• Power Supply: USB Type-C (5 V/1 A)
• Supported Languages: Chinese, English
• Backlight: Adjustable brightness
• Battery: 1500 mAh lithium battery
• Dimensions: Approximately 152 × 68 × 31 mm
